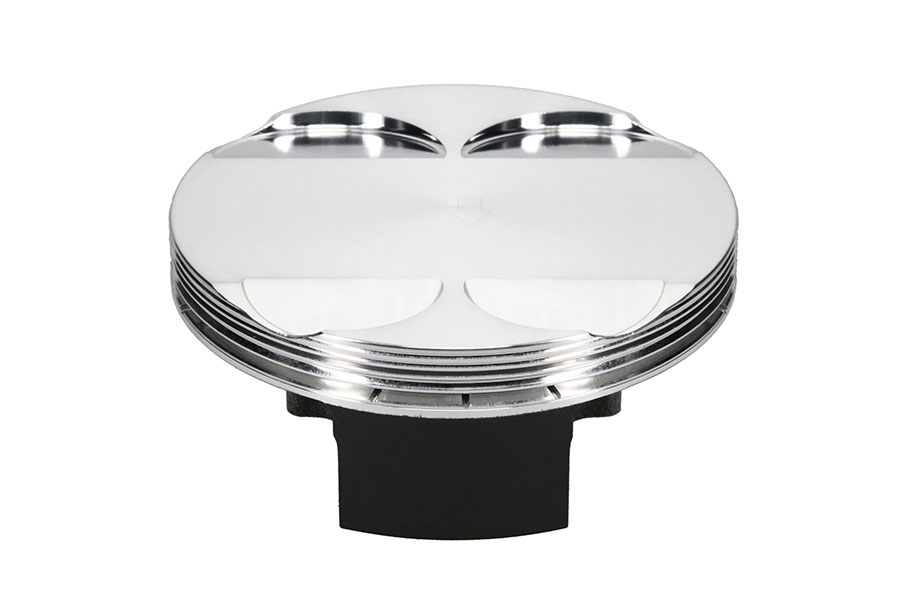

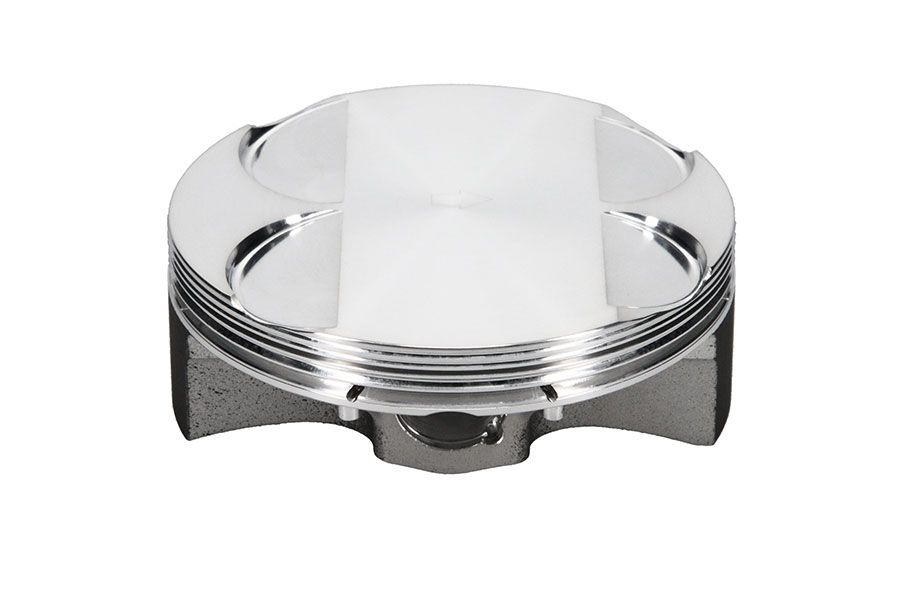

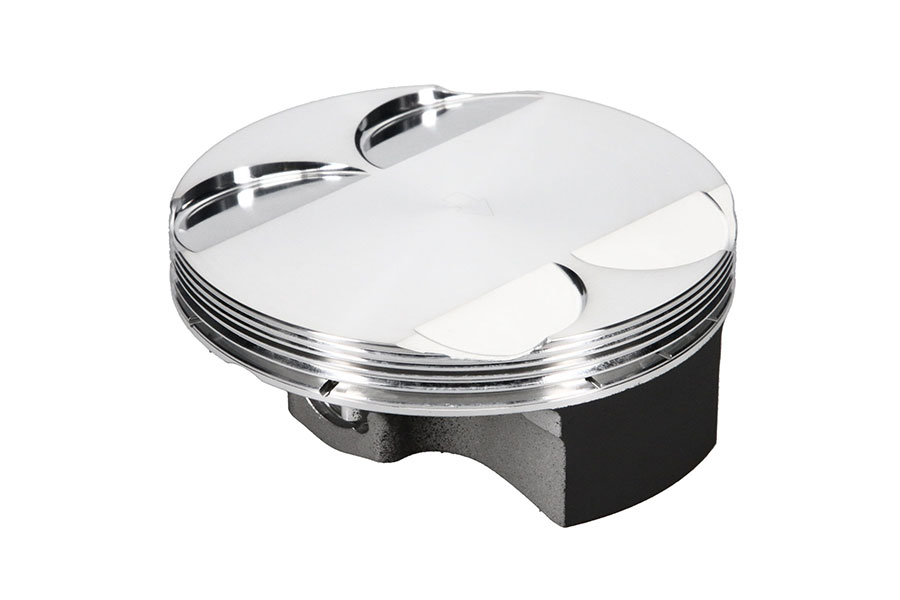

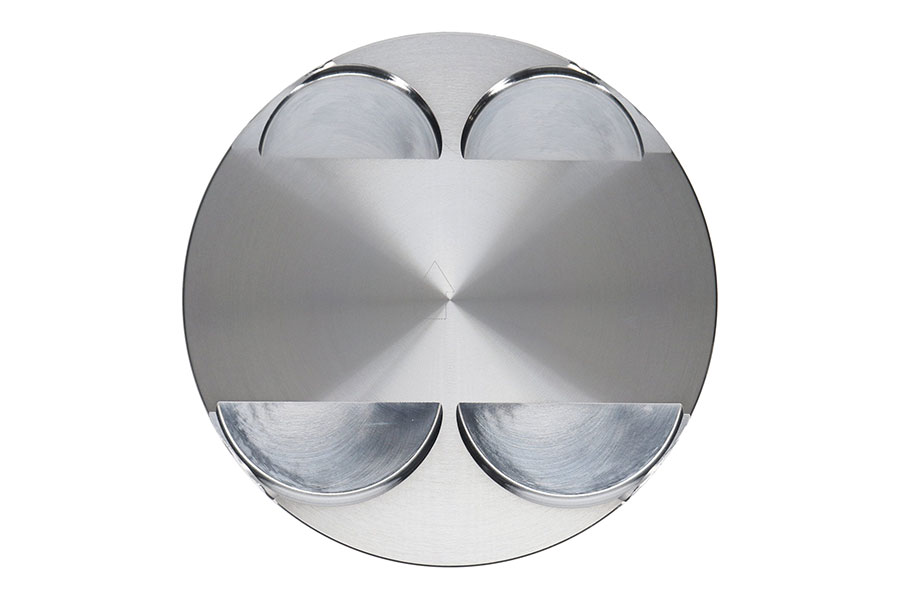

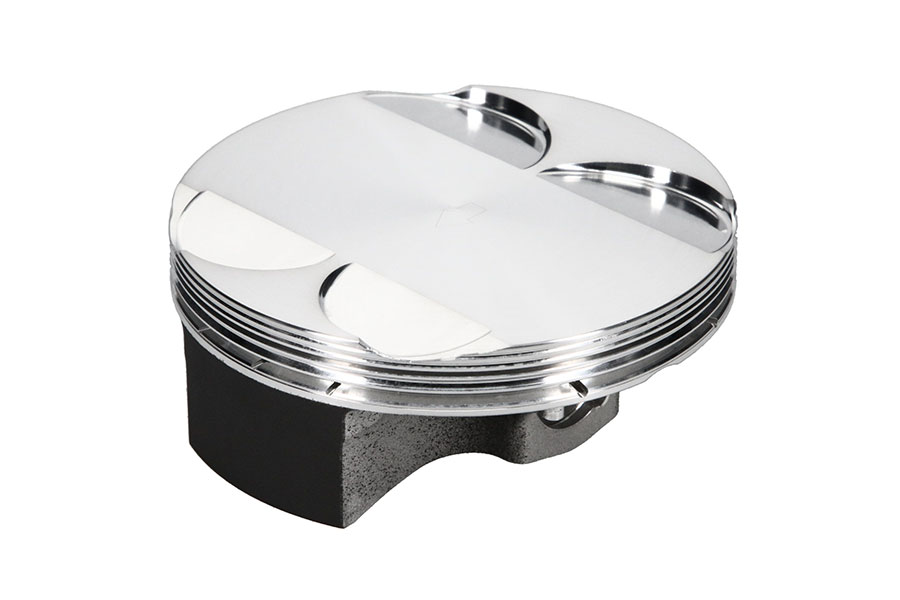

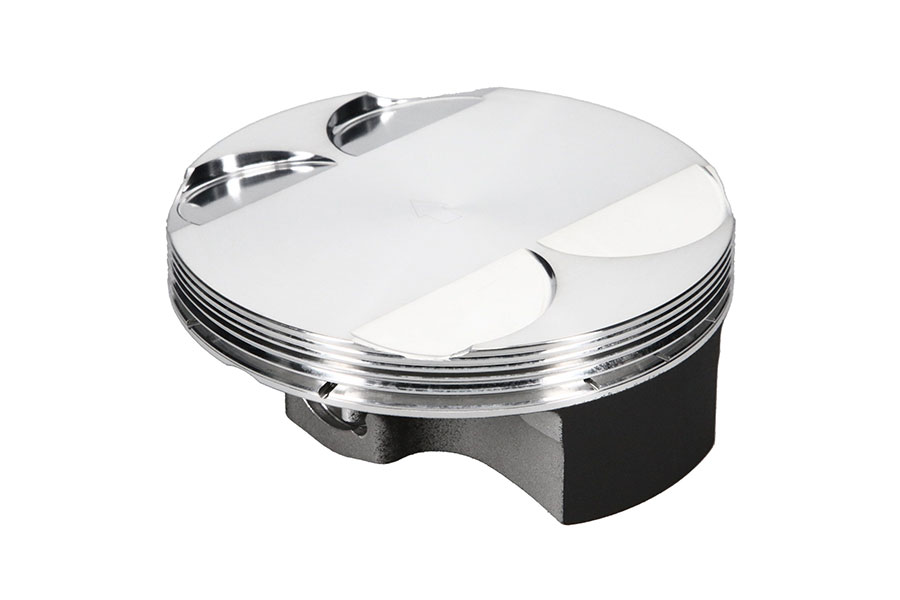

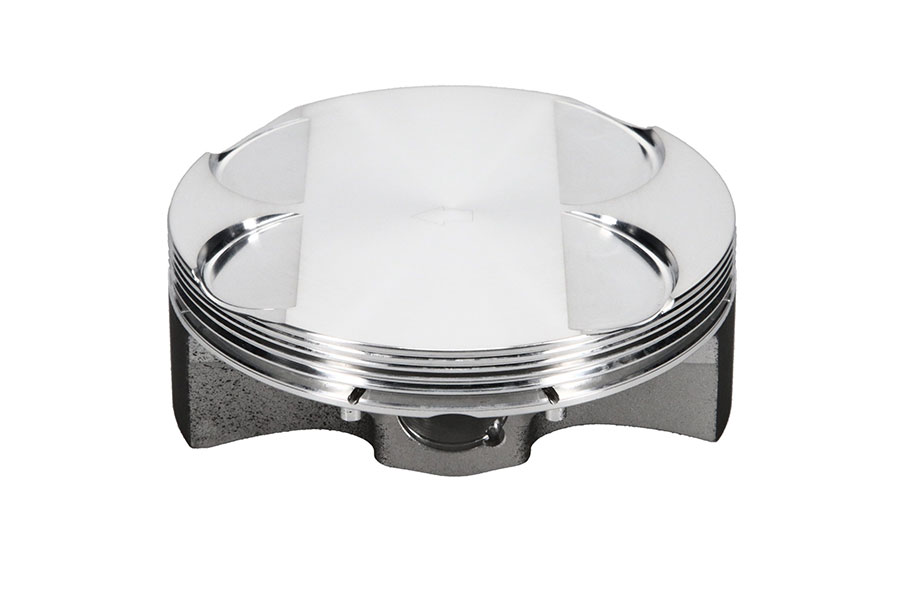

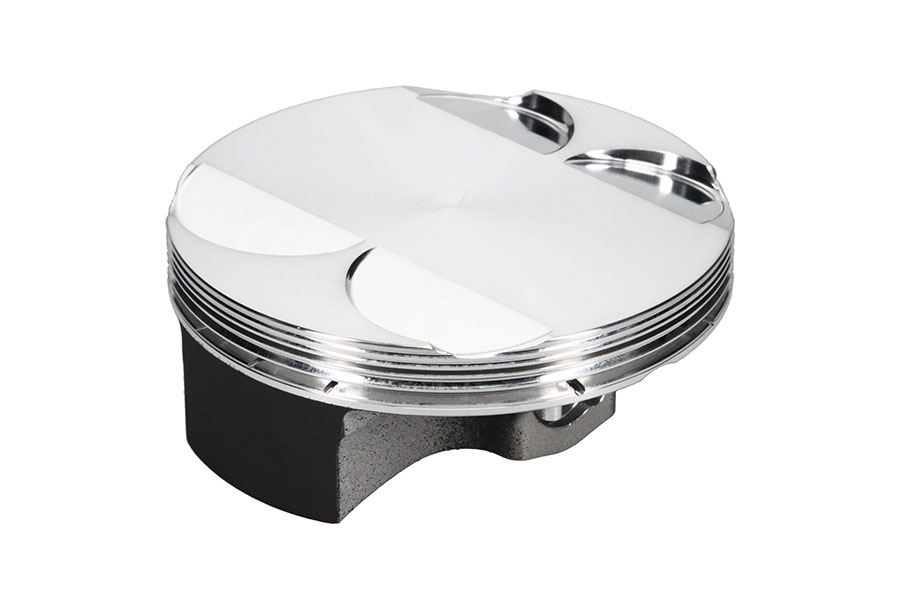

JE Pistons Piston Kit 97.00mm - 260955
Information
Bore Diameter: 97.00mm.
- Manufacturer: JE Pistons

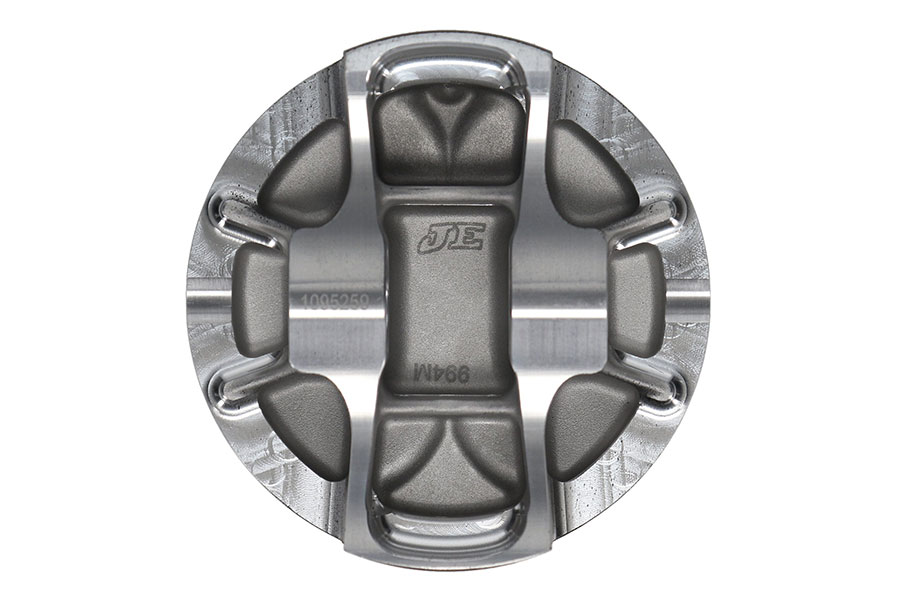

Note: Product images may only represent the class of product and not the specific model.
- Bore Diameter: 97.00mm
- Technical Details
Bore Diameter
97.00
Piston Head Type
Flat
Piston Volume
-2.8
Cylinder Head
4 VALVE 450
Piston Pin Outside Diameter
0.748
Piston Pin Length
2.050
Piston Pin Material
9310
Ringset Included
No
Top Compression Ring Thickness
0.0285
Oil Ring Thickness
0.0795
Piston Material
2618
Forging Type
FSR
Piston Avg Weight
262
Compression Ratio - Actual
12.50:1
Pin Wall Thickness
0.160
Matched Vehicles
The following are a match for this product.
| KTM 450 SX-F - 2012, 2011, 2010, 2009, 2008, 2007 |
| KTM 450 XC-F - 2009, 2008, 2007 |
| KTM 450 SX - 2010, 2009 |
