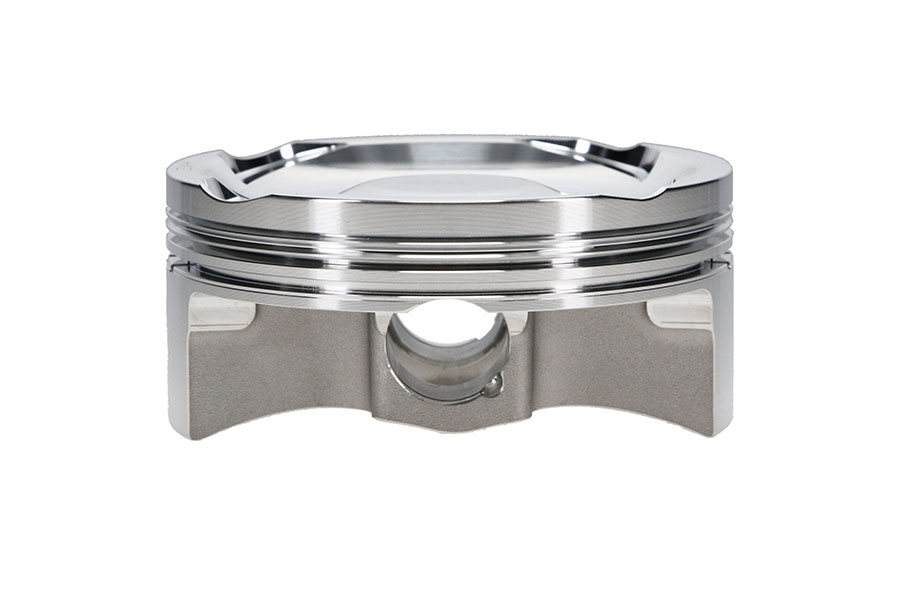

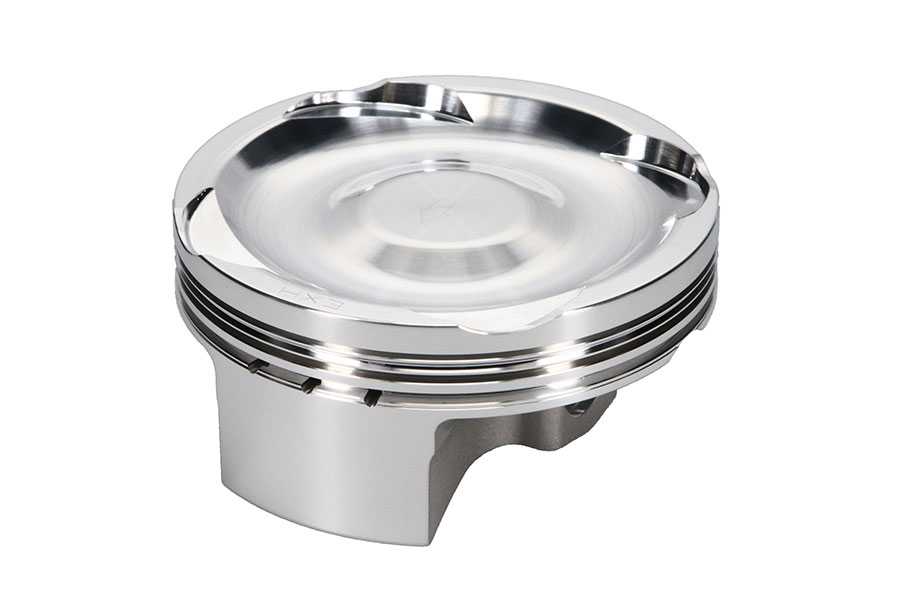

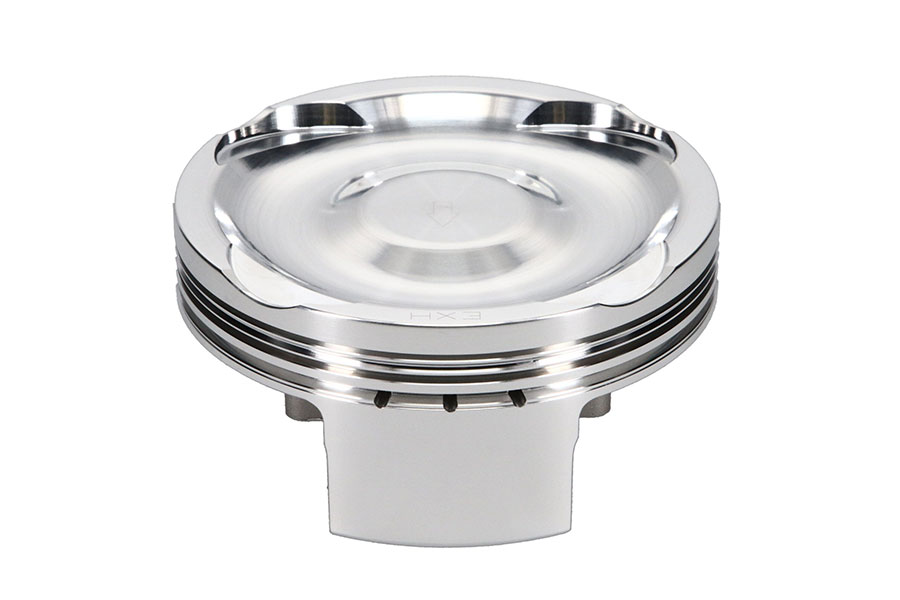

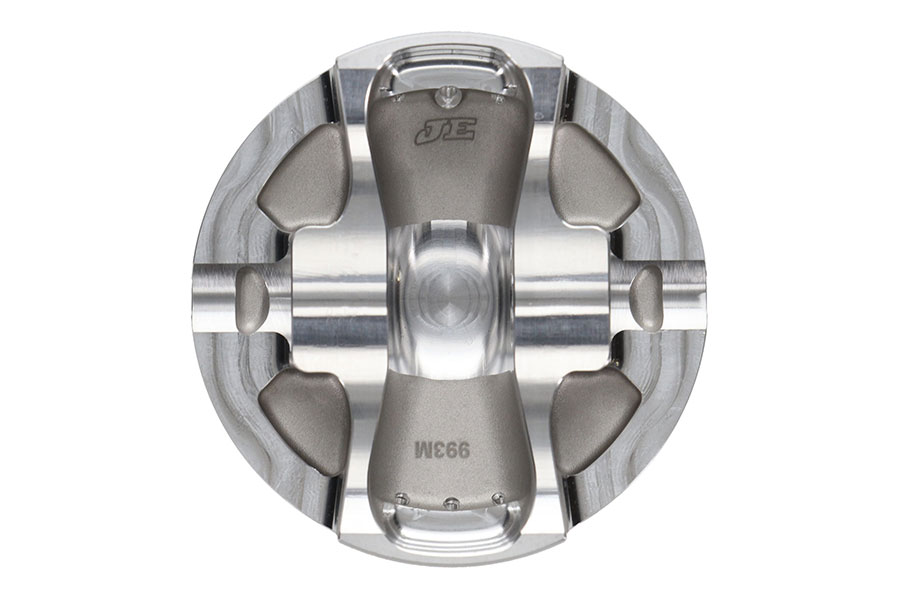

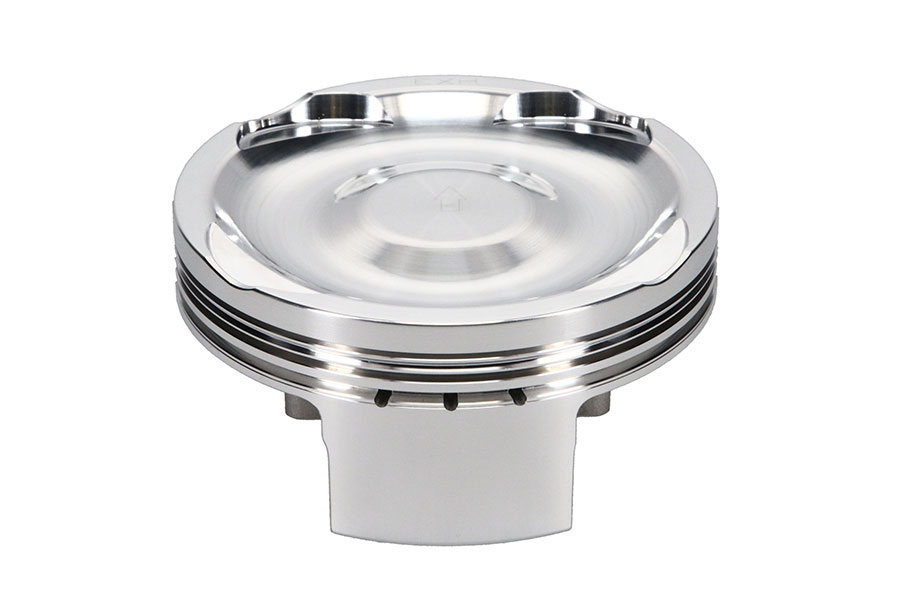

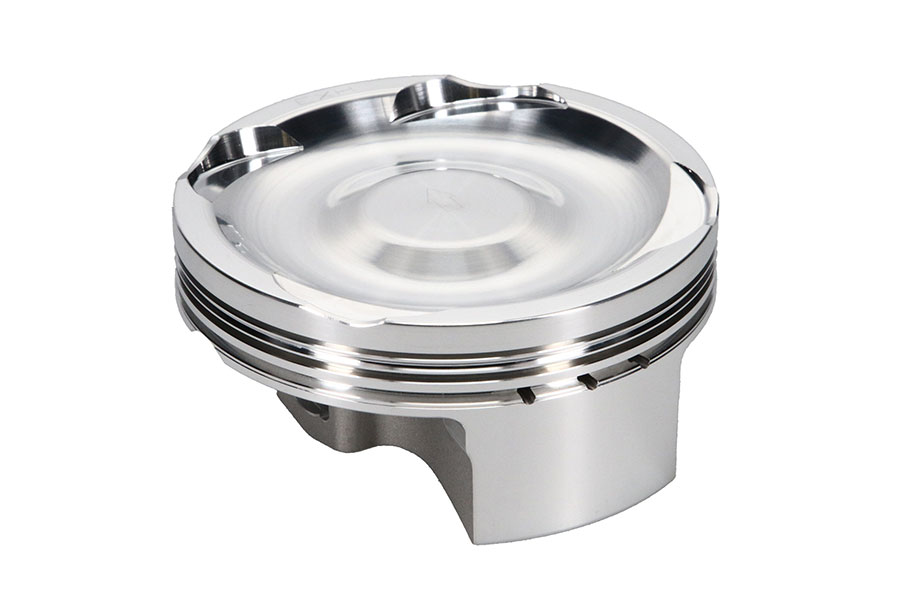

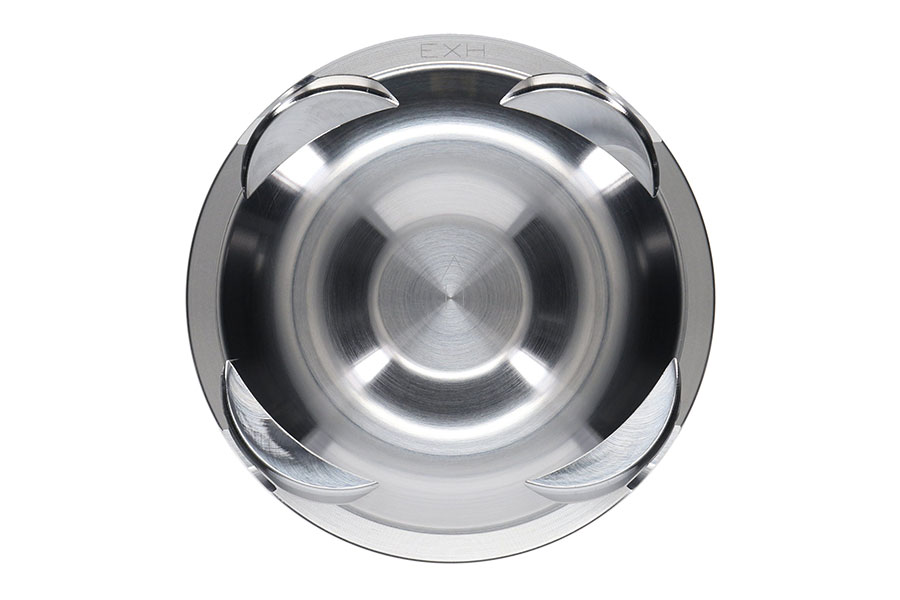

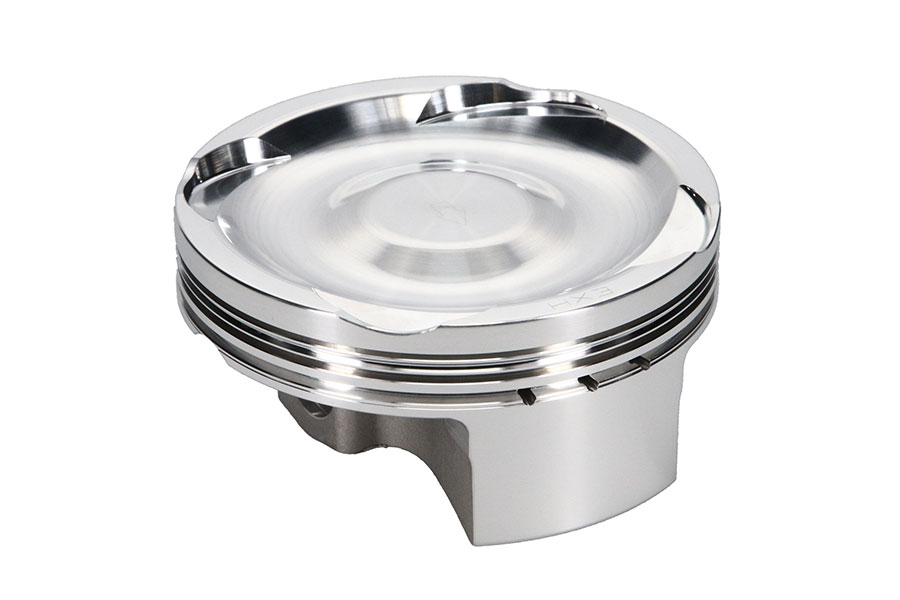

JE Pistons Piston Kit 96.00mm - 306374
Information
Bore Diameter: 96.00mm.
- Manufacturer: JE Pistons

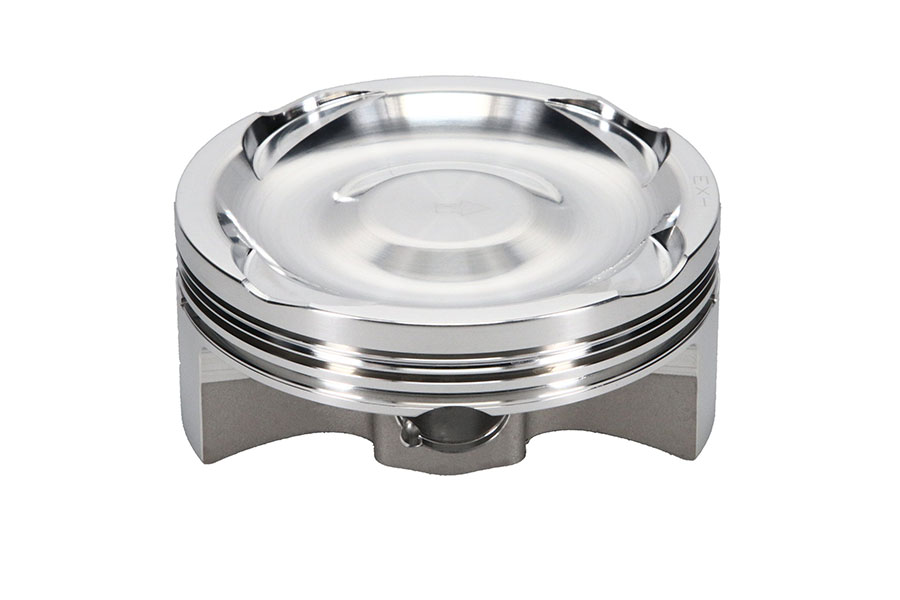

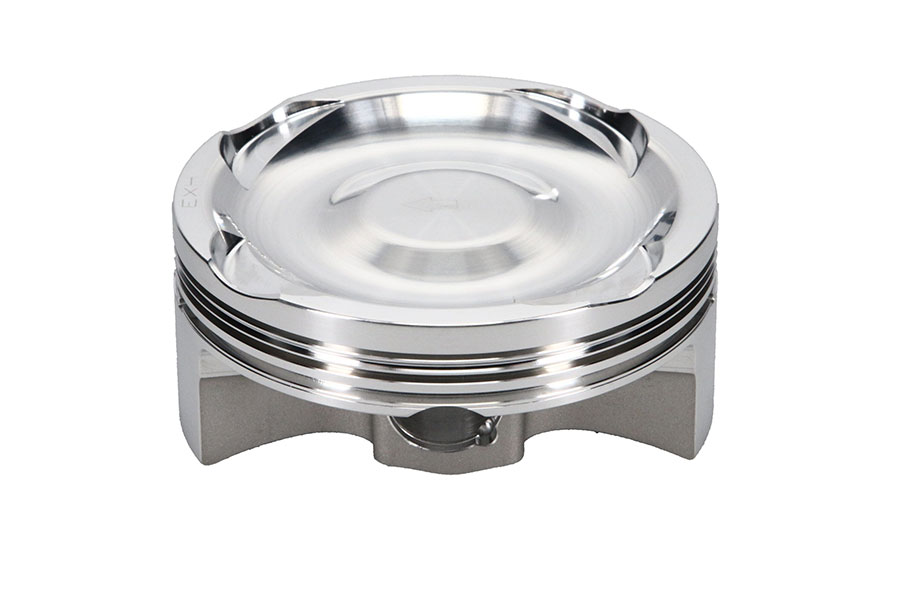

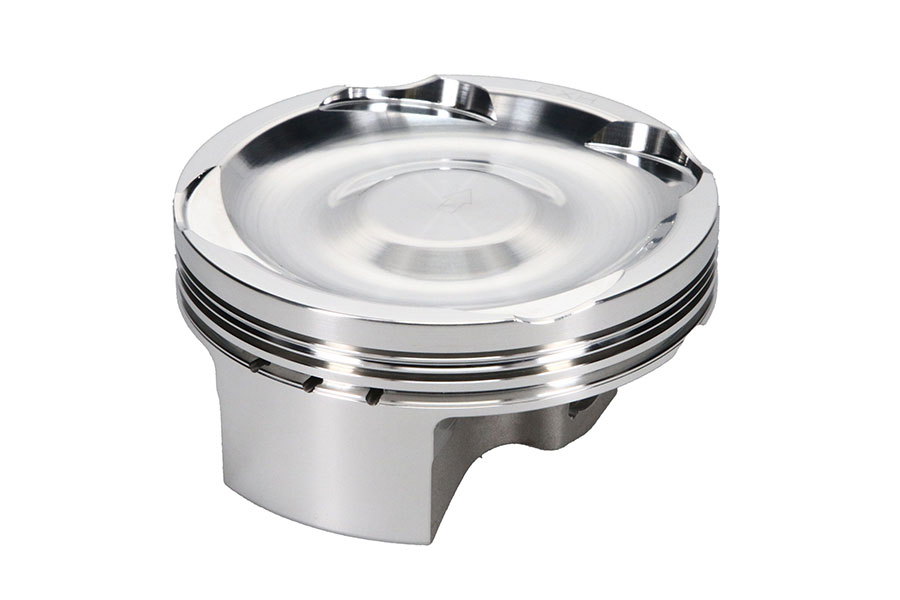

Note: Product images may only represent the class of product and not the specific model.
- Bore Diameter: 96.00mm
- Technical Details
Bore Diameter
96.00
Piston Head Type
Dome
Piston Volume
-1.8
Cylinder Head
RZR XP 900
Piston Pin Outside Diameter
0.787
Piston Pin Length
2.050
Piston Pin Material
9310
Ringset Included
Yes
Top Compression Ring Thickness
0.0383
Second Compression Ring Thickness
0.06
Oil Ring Thickness
0.0795
Piston Material
2618
Forging Type
FSR
Piston Avg Weight
299
Compression Ratio - Actual
12.00:1
Pin Wall Thickness
0.160
Matched Vehicles
The following are a match for this product.
| Polaris 900 Ranger RZR XP 4 - 2013, 2012 |
| Polaris 900 Ranger RZR XP 4 EPS LE - 2013, 2012 |
| Polaris 900 Ranger RZR XP - 2013, 2012, 2011 |
| Polaris 900 Ranger RZR XP EPS LE - 2013 |
| Polaris 900 Ranger RZR XP EPS Walker Evans LE - 2013 |
| Polaris 900 Ranger RZR XP HO Jagged X Edition - 2013 |
| Polaris 900 Ranger RZR XP LE - 2013, 2012, 2011 |
