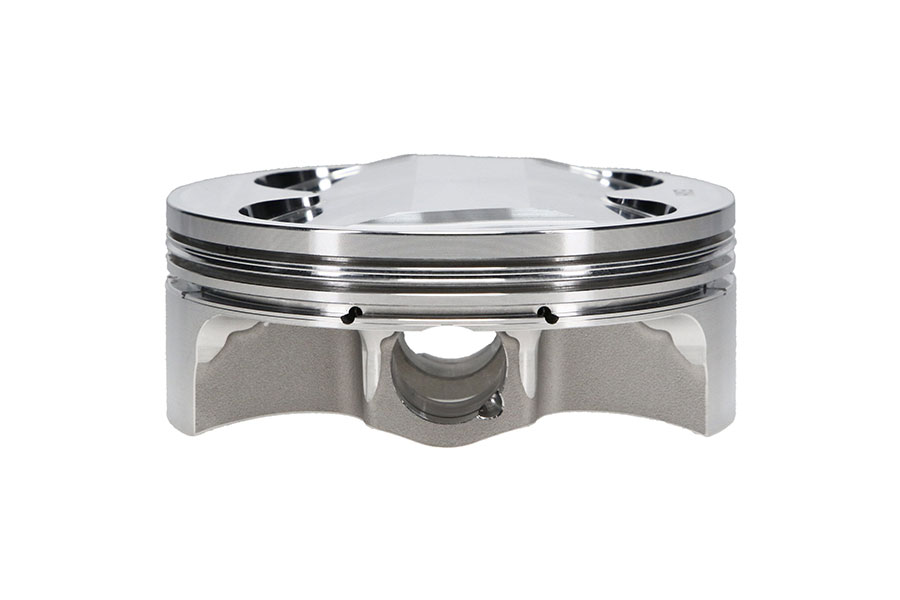

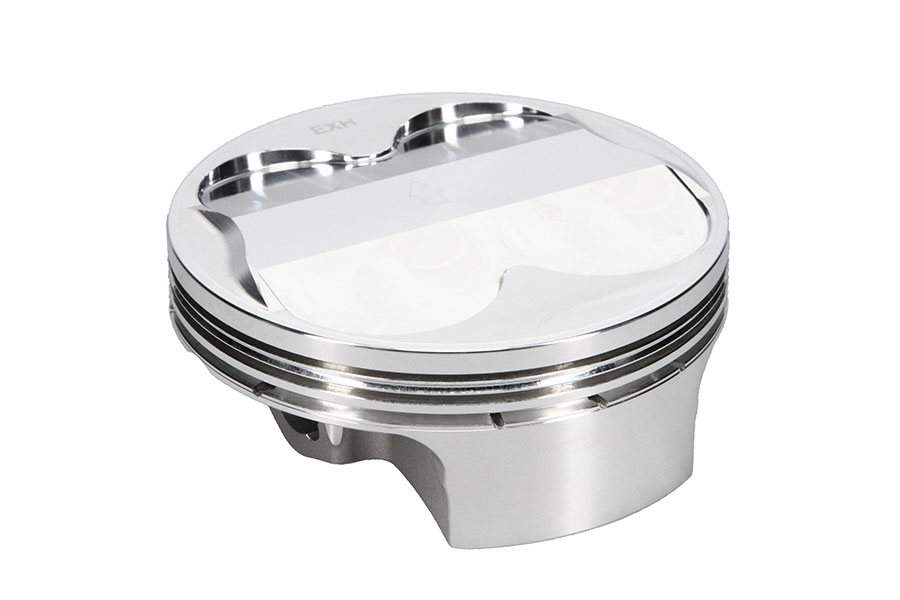

JE Pistons Piston Kit 95.50mm - 252743
Information
Bore Diameter: 95.50mm.
- Manufacturer: JE Pistons

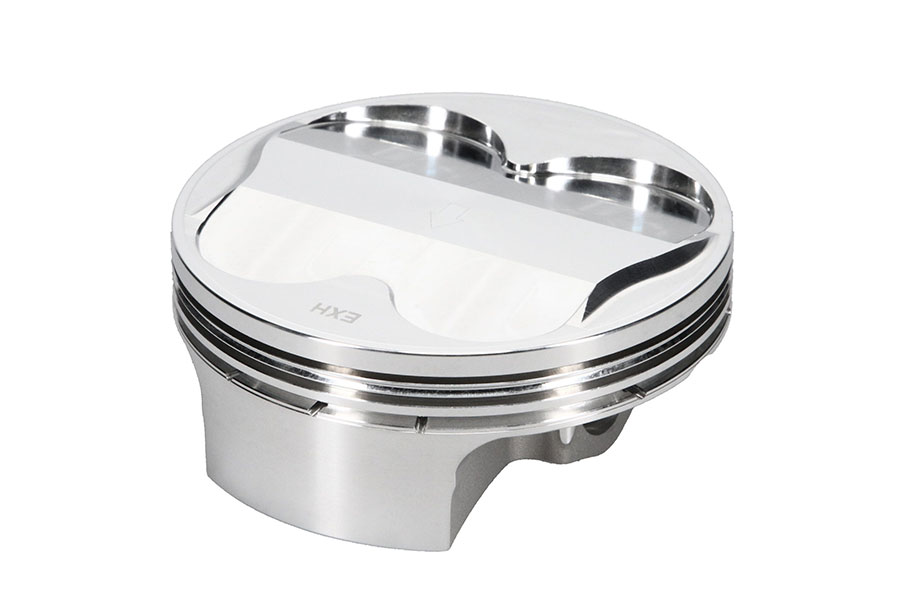

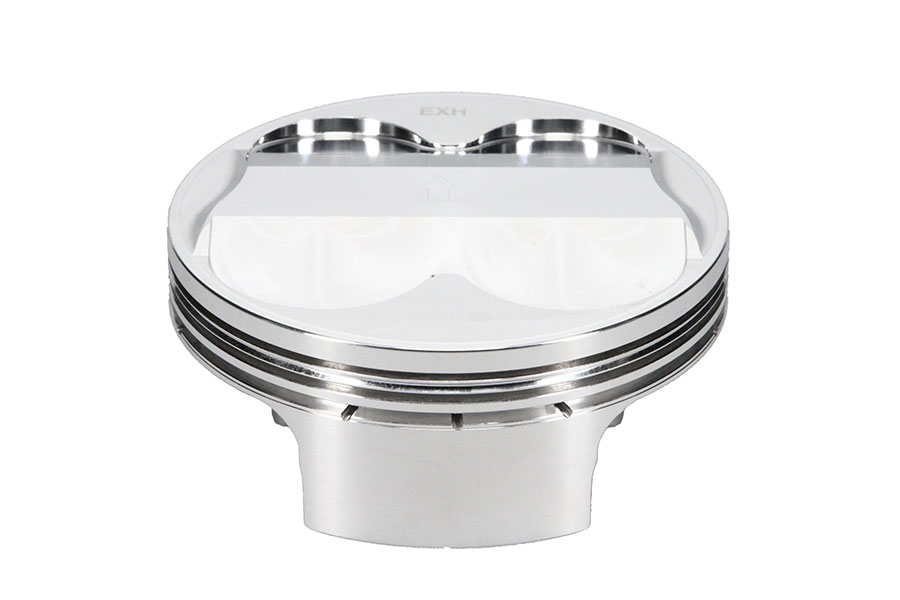

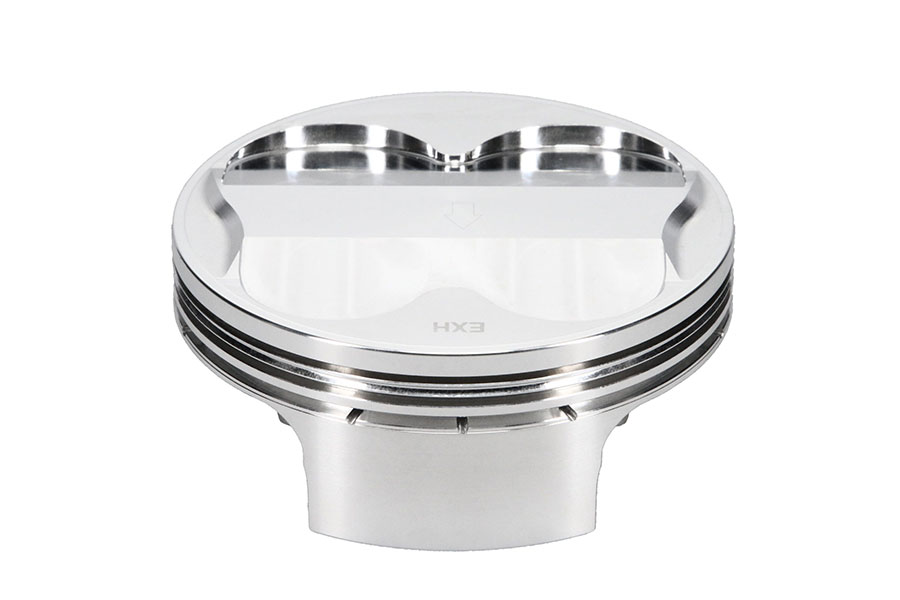

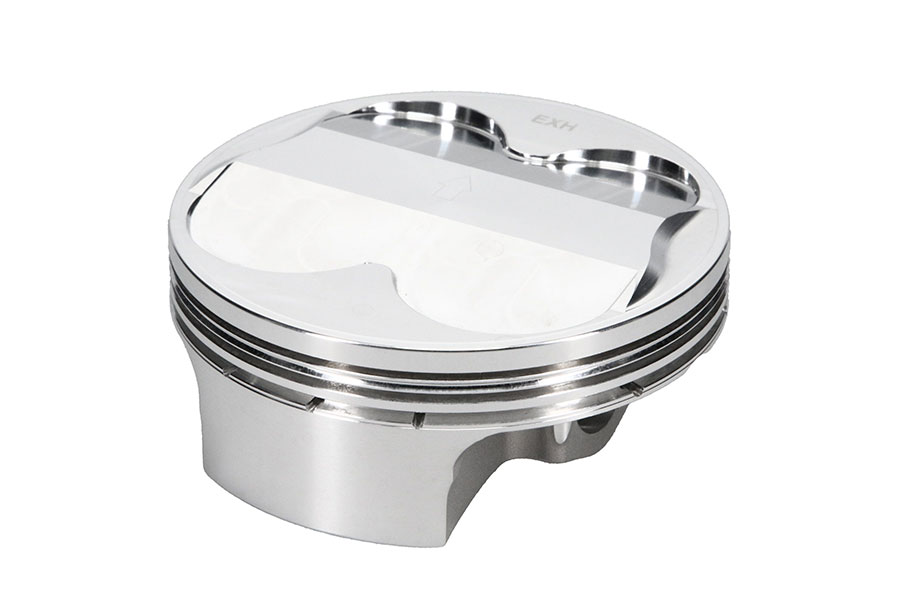

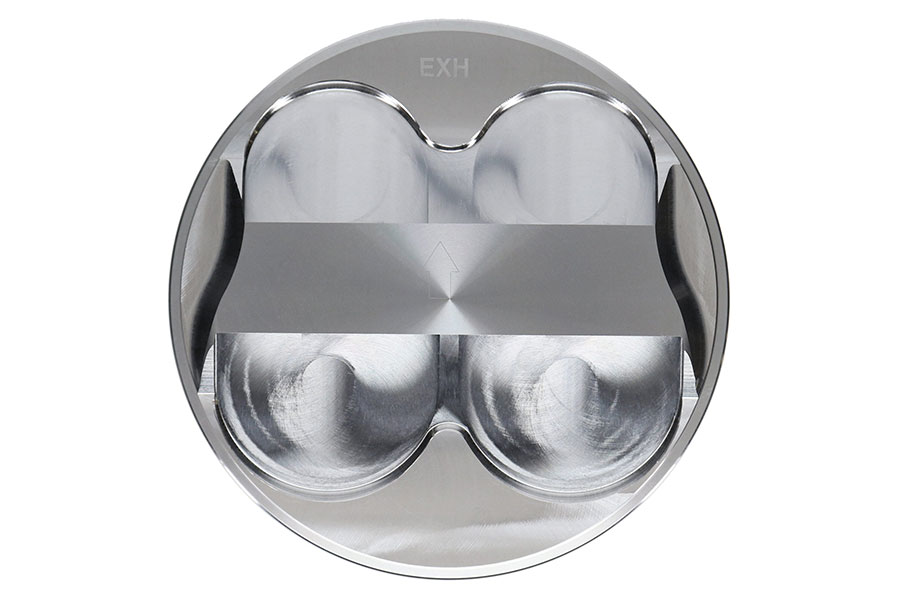

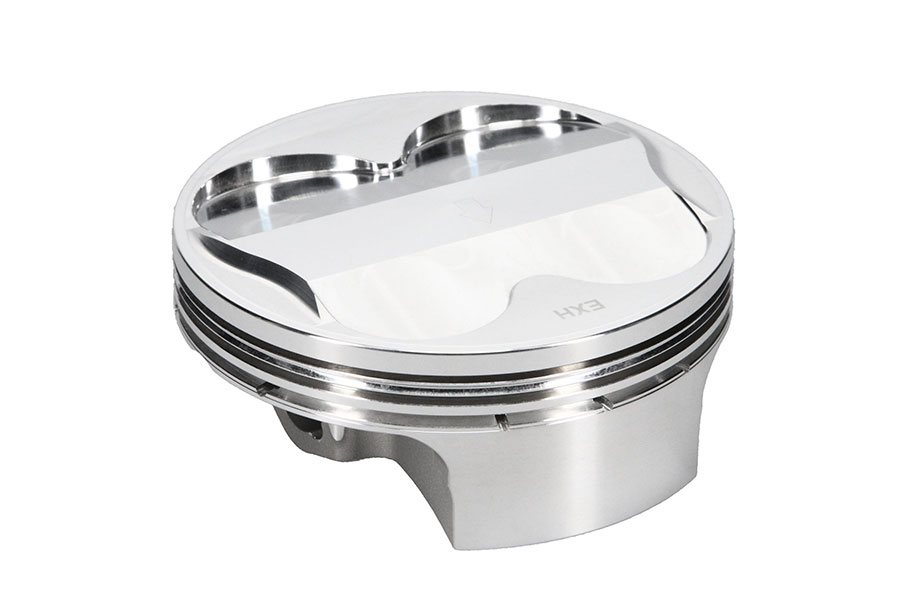

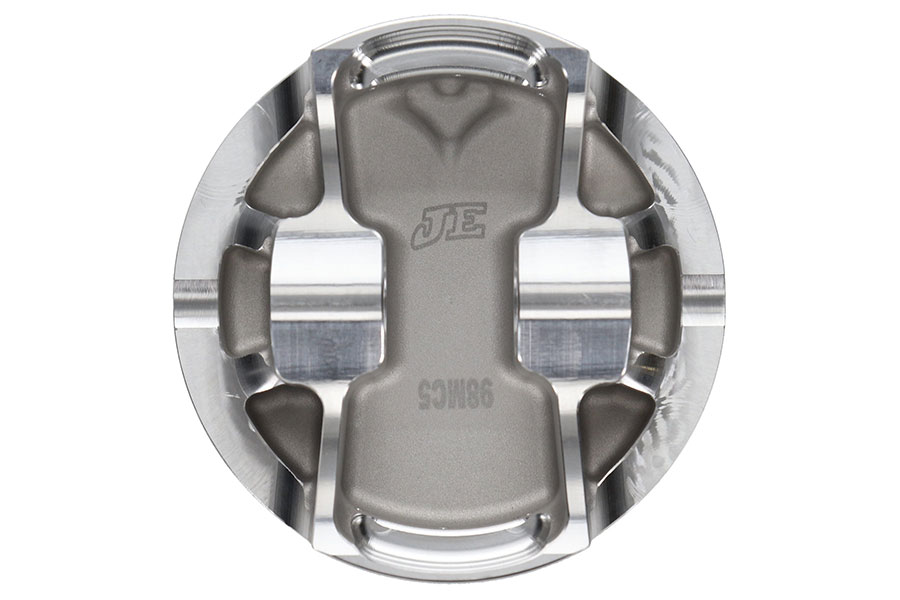

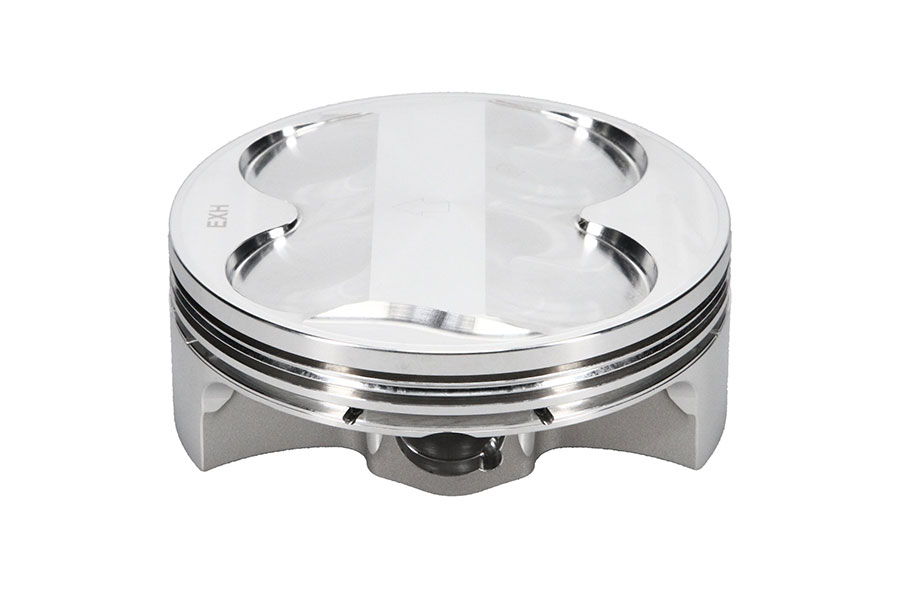

Note: Product images may only represent the class of product and not the specific model.
- Bore Diameter: 95.50mm
- Technical Details
Bore Diameter
95.50
Piston Head Type
Dome
Cylinder Head
LTR 450
Piston Pin Outside Diameter
0.748
Piston Pin Length
2.050
Piston Pin Material
9310
Ringset Included
Yes
Top Compression Ring Thickness
0.0383
Second Compression Ring Thickness
0.048
Oil Ring Thickness
0.0795
Piston Material
2618
Forging Type
FSR
Piston Avg Weight
297
Compression Ratio - Actual
12.80:1
Pin Wall Thickness
0.160
Matched Vehicles
The following are a match for this product.
| Suzuki LT-R450 Quadracer - 2009, 2008, 2007, 2006 |
