JE Pistons Piston Kit 95.50mm - 243651
Information
Bore Diameter: 95.50mm.
- Manufacturer: JE Pistons

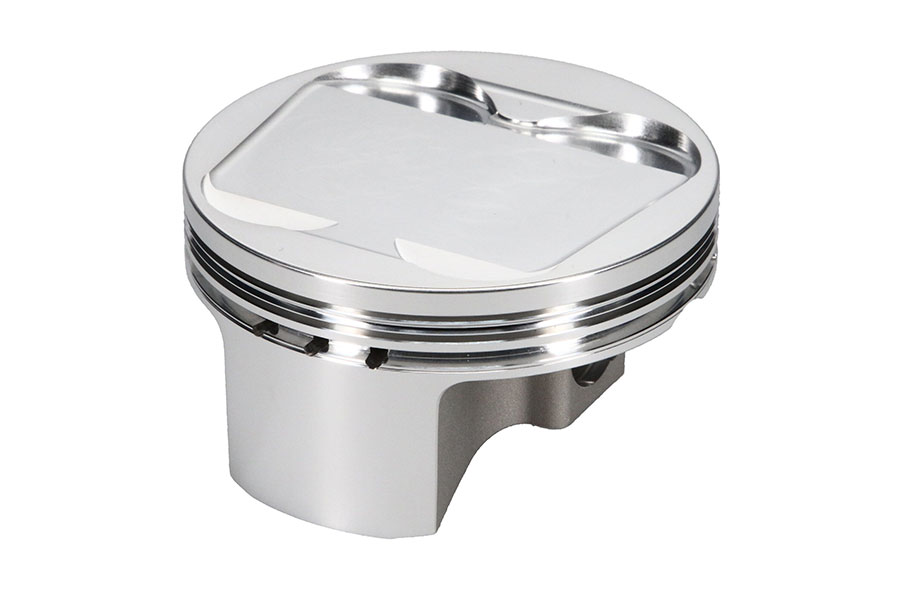

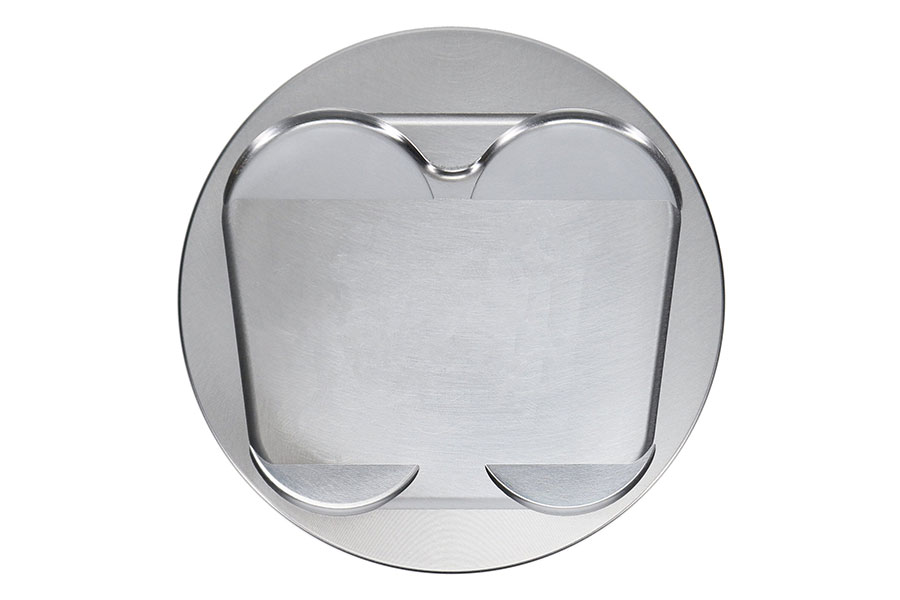

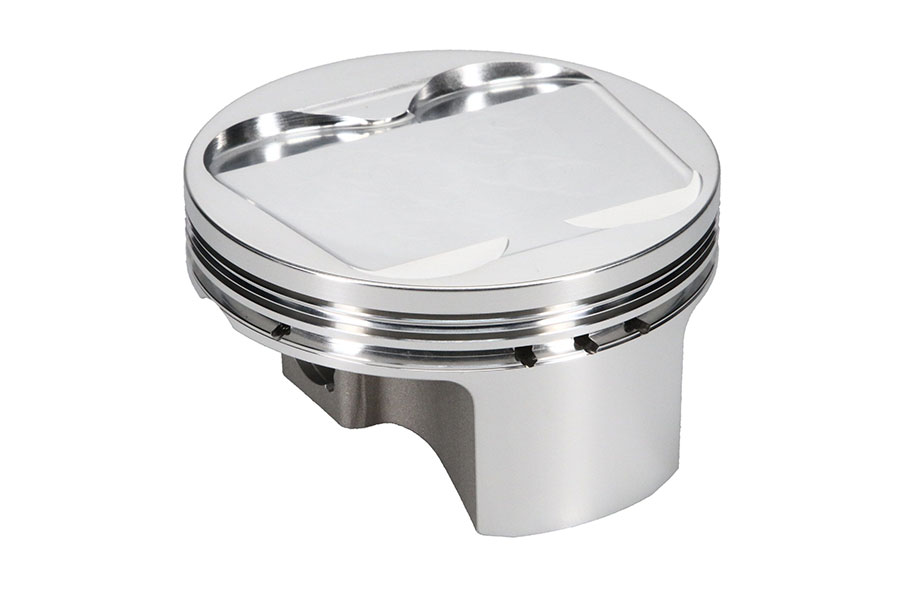

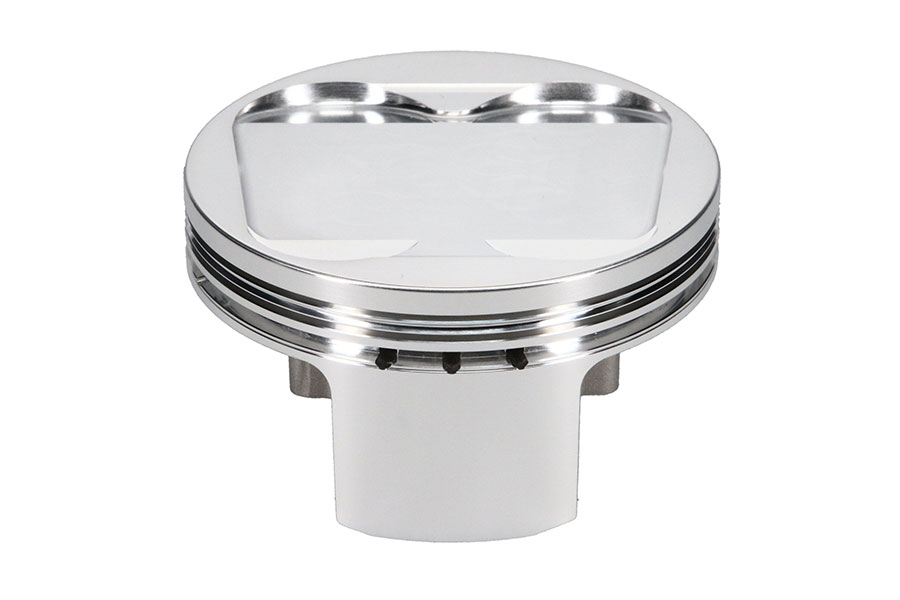

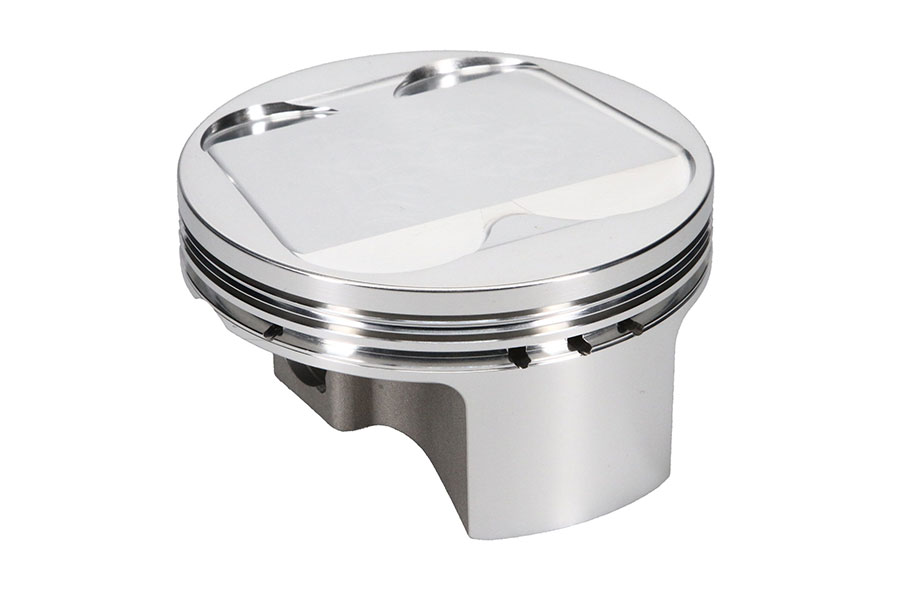

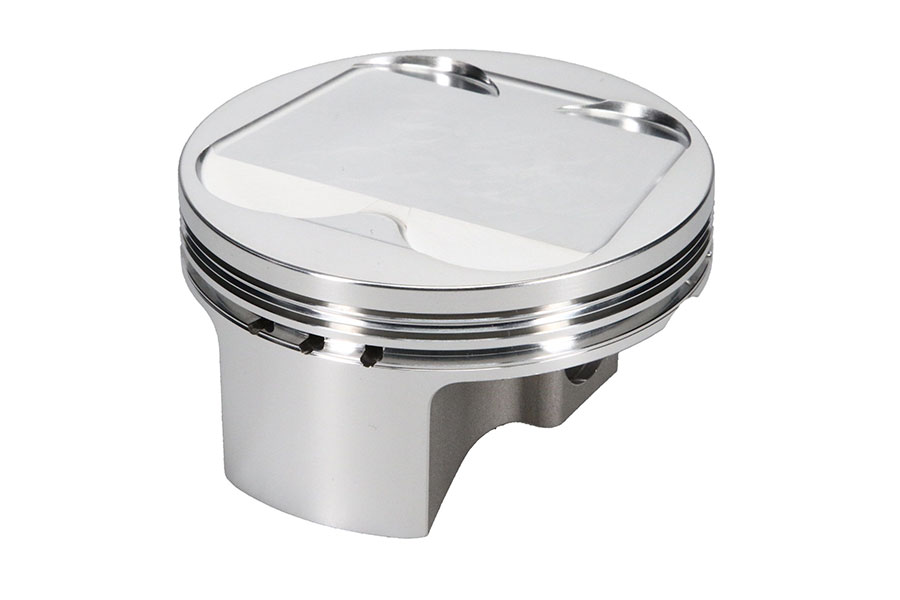

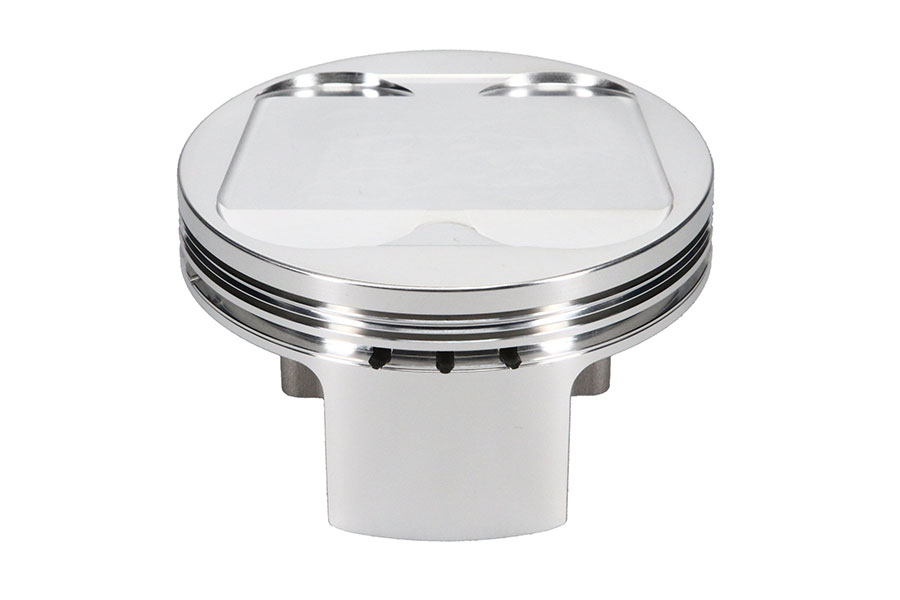

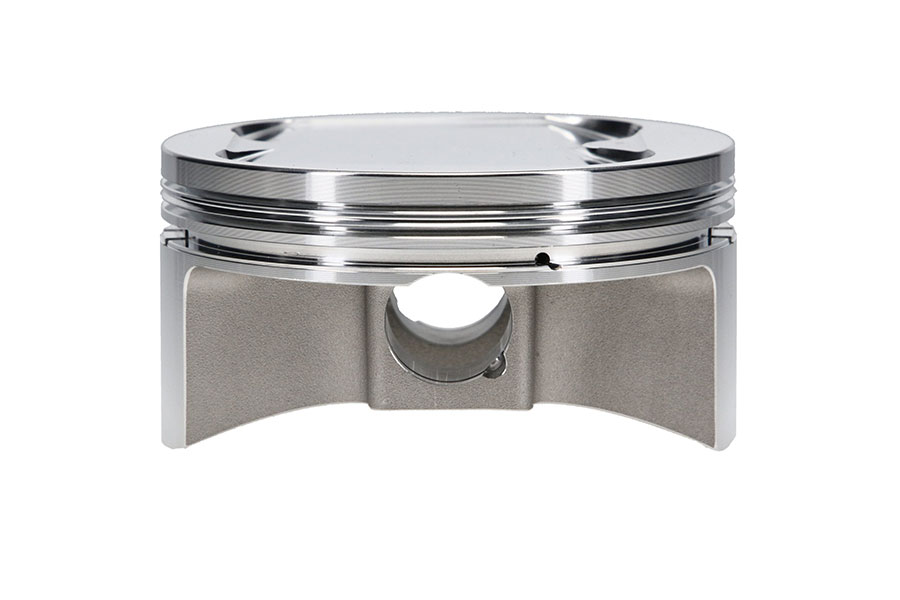

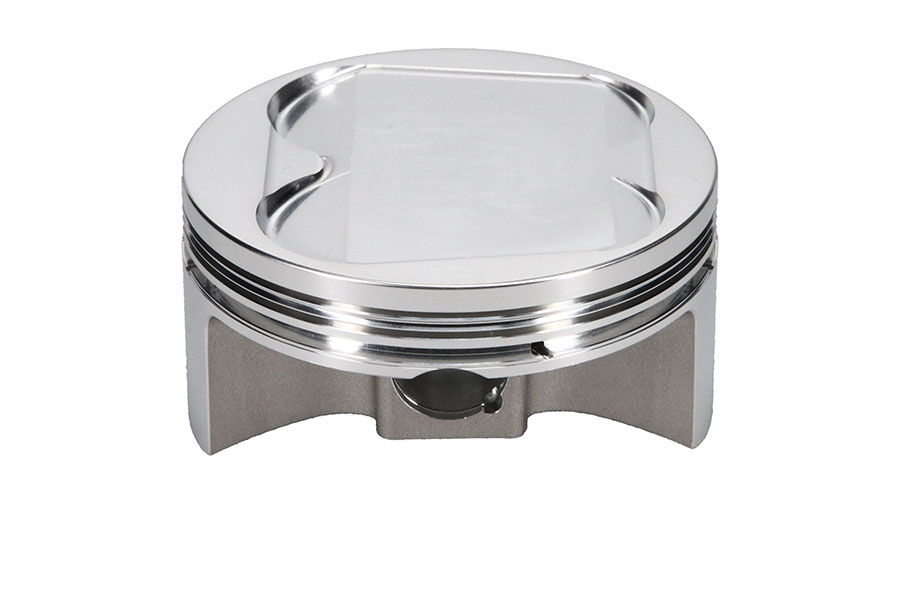

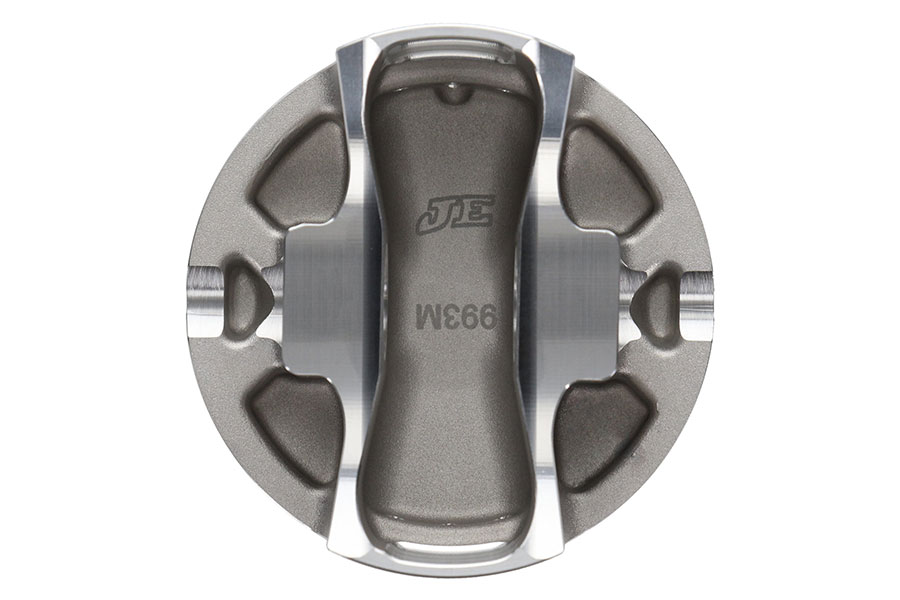

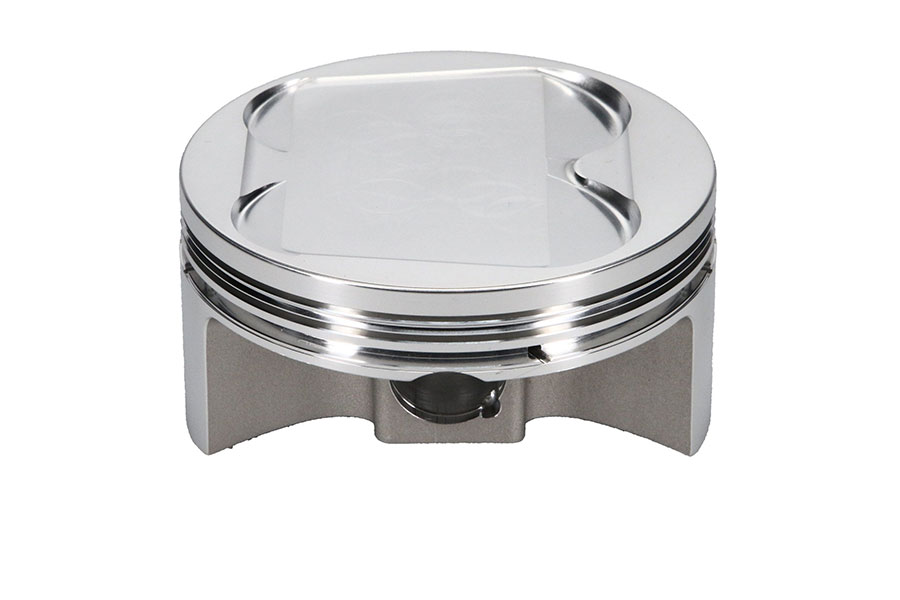

Note: Product images may only represent the class of product and not the specific model.
- Bore Diameter: 95.50mm
- Technical Details
Bore Diameter
95.50
Piston Head Type
Dish
Cylinder Head
BMW 4 VALVE
Piston Pin Outside Diameter
0.787
Piston Pin Length
2.050
Piston Pin Material
9310
Ringset Included
Yes
Top Compression Ring Thickness
0.048
Second Compression Ring Thickness
0.048
Oil Ring Thickness
0.099
Piston Material
2618
Forging Type
FSR
Piston Avg Weight
311
Compression Ratio - Actual
13.10:1
Pin Wall Thickness
0.160
Matched Vehicles
The following are a match for this product.
| Arctic Cat 400 DVX - 2008, 2007, 2006, 2005, 2004 |
| Arctic Cat 400 DVX TS - 2007, 2006 |
| Kawasaki KFX-400 - 2006, 2005, 2004, 2003 |
| Kawasaki KLX-400R - 2003 |
| Kawasaki KLX-400SR - 2003 |
| Suzuki DRZ-400 - 2004, 2003, 2002, 2001, 2000 |
| Suzuki DRZ-400E - 2007, 2006, 2005, 2004, 2003, 2002, 2001, 2000 |
| Suzuki DRZ-400S - 2016, 2015, 2014, 2013, 2012, 2011 |
| Suzuki DRZ-400S - 2016, 2015, 2014, 2013, 2012, 2011 |
| Suzuki LT-Z400 Quadsport Z - 2014, 2013, 2012 |
| Suzuki LT-Z400 Quadsport Z - 2014, 2013, 2012 |
| Suzuki LT-Z400 Quadsport Z LE - 2012 |
