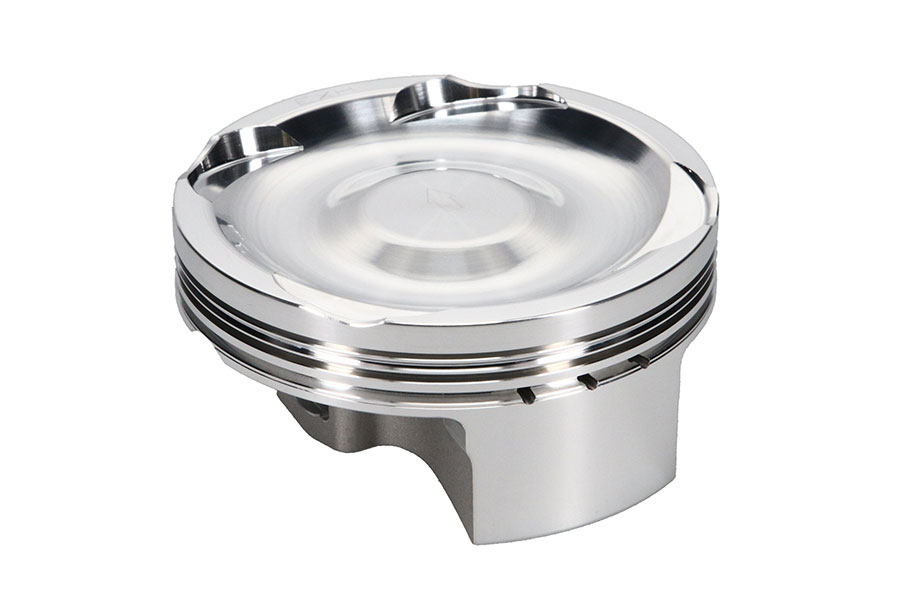

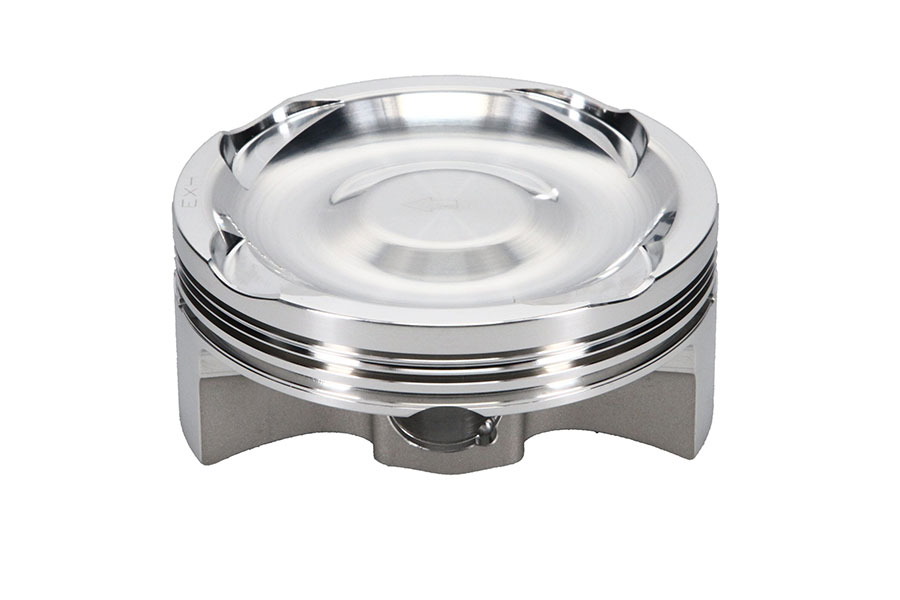

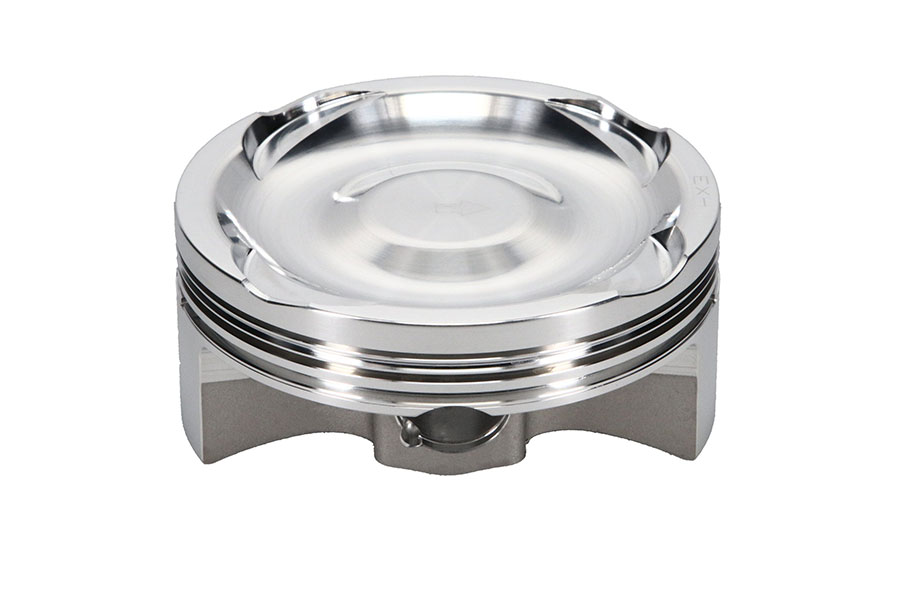

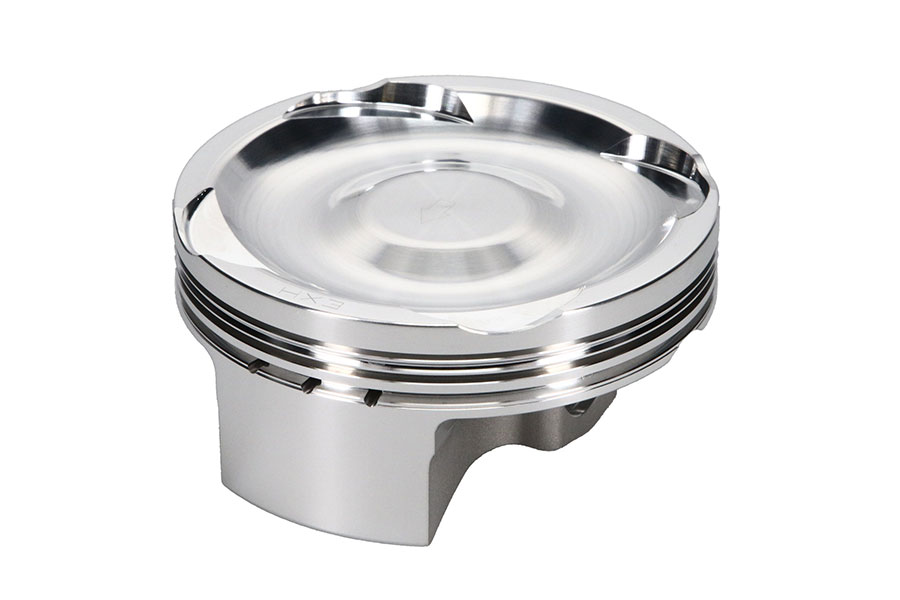

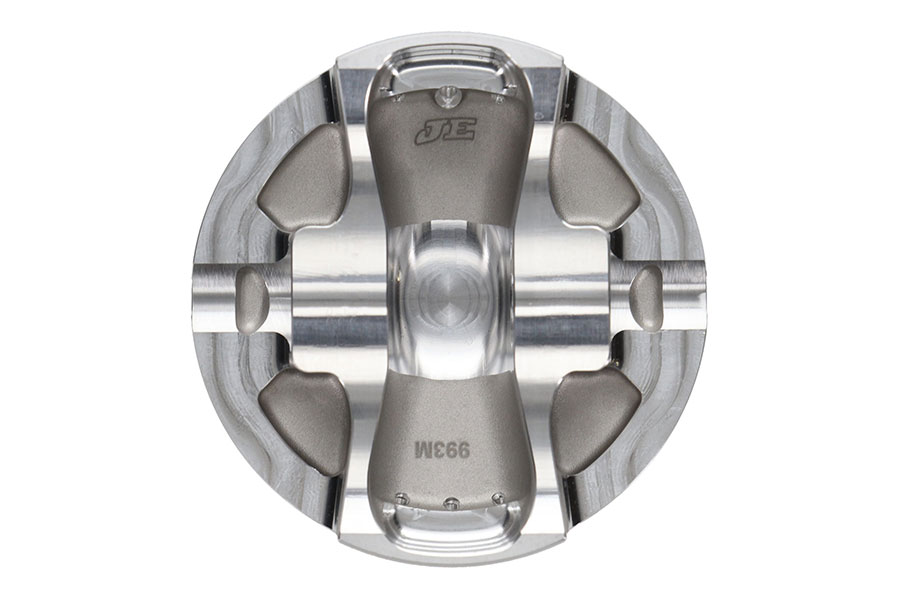

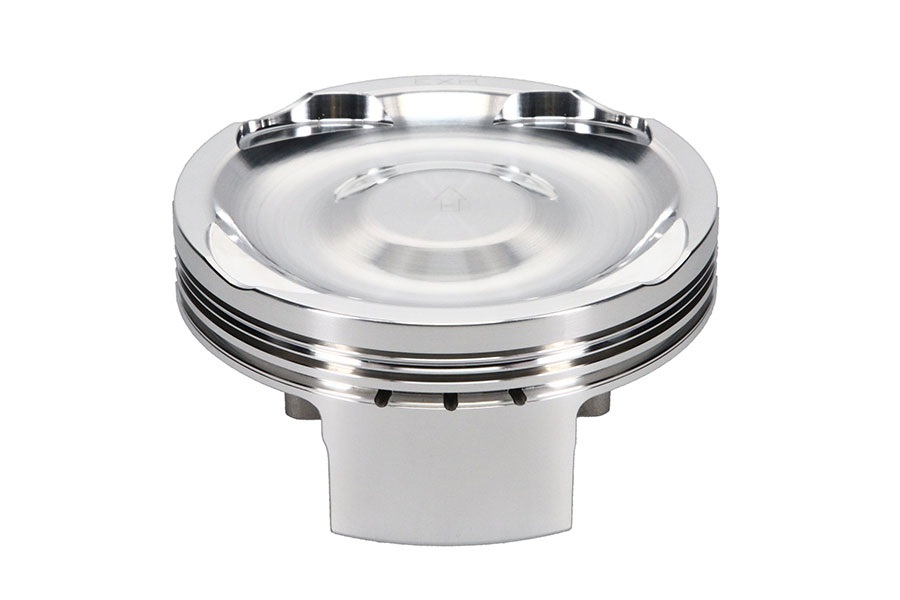

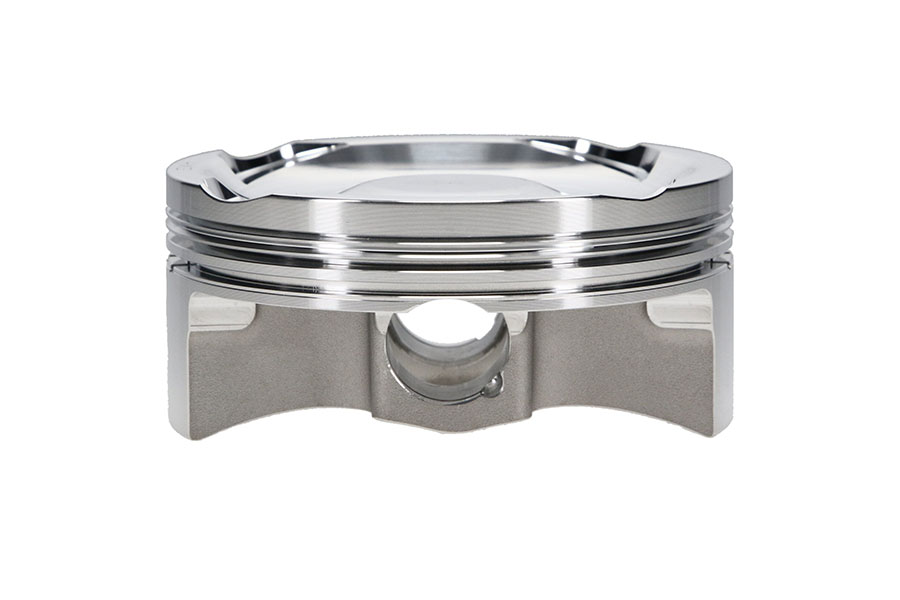

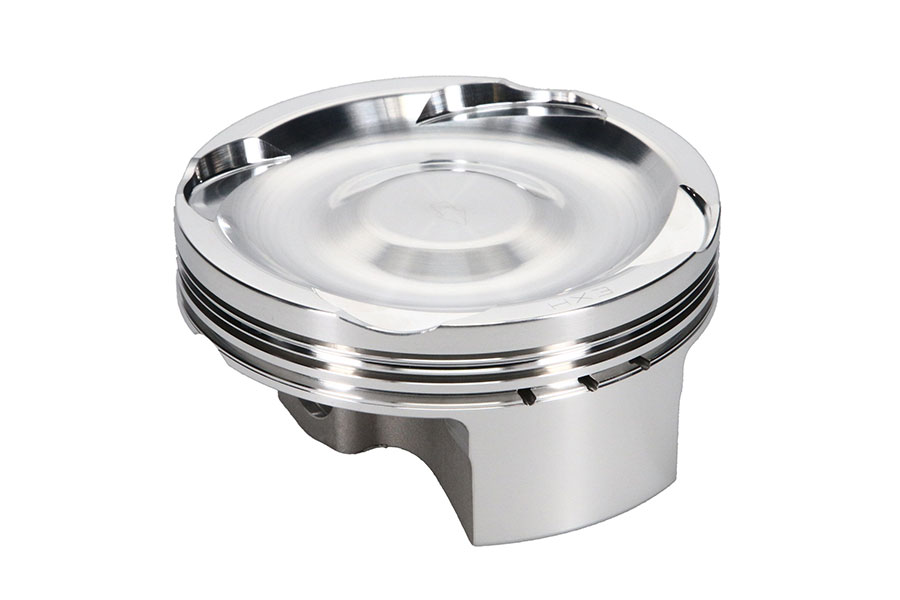

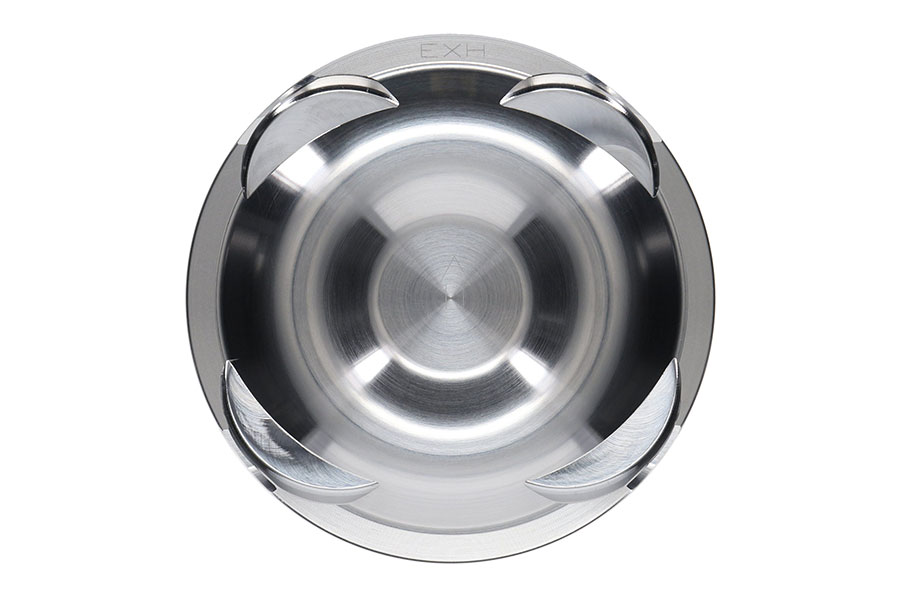

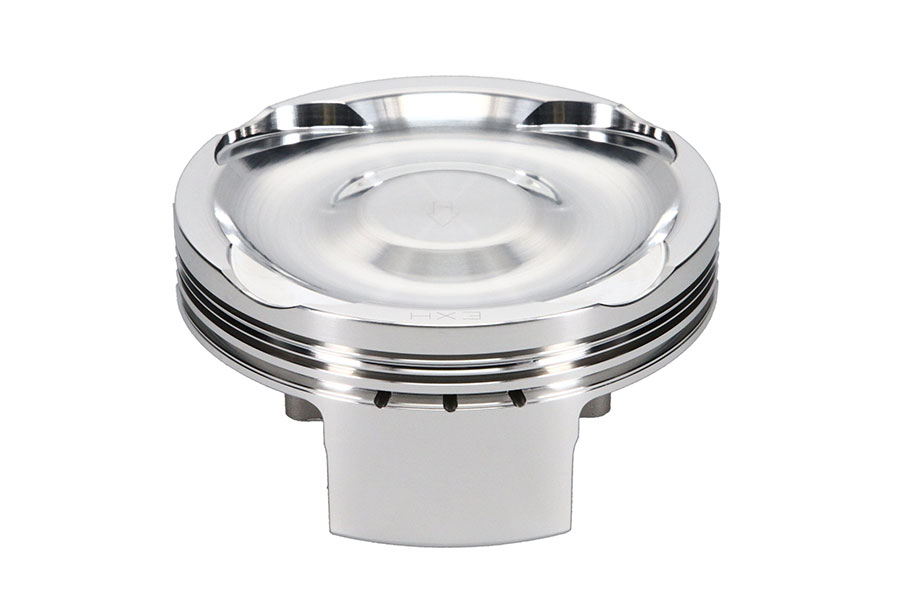

JE Pistons Piston Kit 95.00mm - 306364
Information
Bore Diameter: 95.00mm.
- Manufacturer: JE Pistons
Note: Product images may only represent the class of product and not the specific model.
- Bore Diameter: 95.00mm
- Technical Details
Bore Diameter
95.00
Piston Head Type
Dish
Piston Volume
-16.7
Cylinder Head
RZR XP 900
Piston Pin Outside Diameter
0.787
Piston Pin Length
2.050
Ringset Included
Yes
Top Compression Ring Thickness
0.048
Second Compression Ring Thickness
0.06
Oil Ring Thickness
0.0795
Piston Material
2618
Forging Type
FSR
Piston Avg Weight
297
Compression Ratio - Actual
9.00:1
Pin Wall Thickness
0.180
Matched Vehicles
The following are a match for this product.
| Polaris 900 Ranger RZR XP 4 - 2013, 2012 |
| Polaris 900 Ranger RZR XP 4 EPS LE - 2013, 2012 |
| Polaris 900 Ranger RZR XP - 2013, 2012, 2011 |
| Polaris 900 Ranger RZR XP EPS LE - 2013 |
| Polaris 900 Ranger RZR XP EPS Walker Evans LE - 2013 |
| Polaris 900 Ranger RZR XP HO Jagged X Edition - 2013 |
| Polaris 900 Ranger RZR XP LE - 2013, 2012, 2011 |
