JE Pistons Piston Kit 95.00mm - 274173
Information
Bore Diameter: 95.00mm.
- Manufacturer: JE Pistons

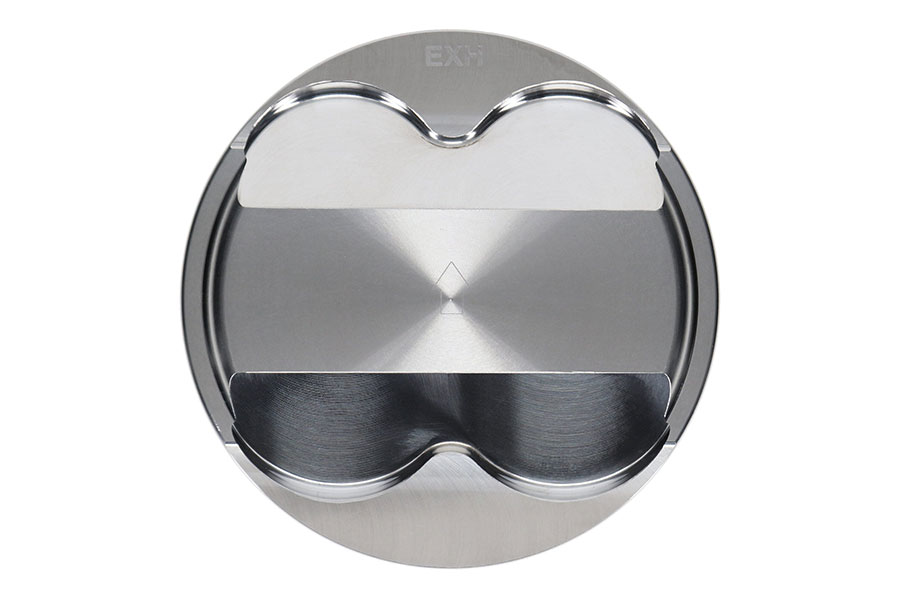

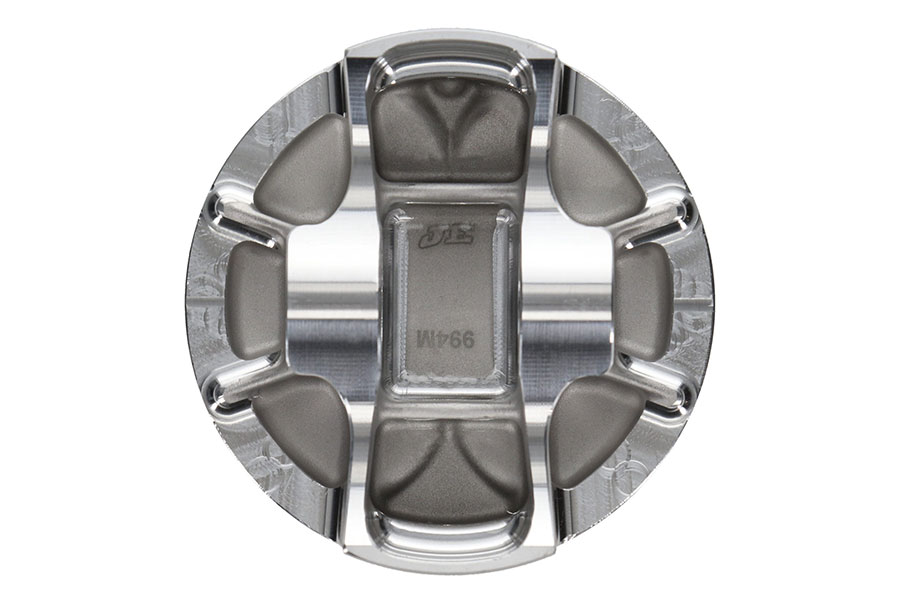

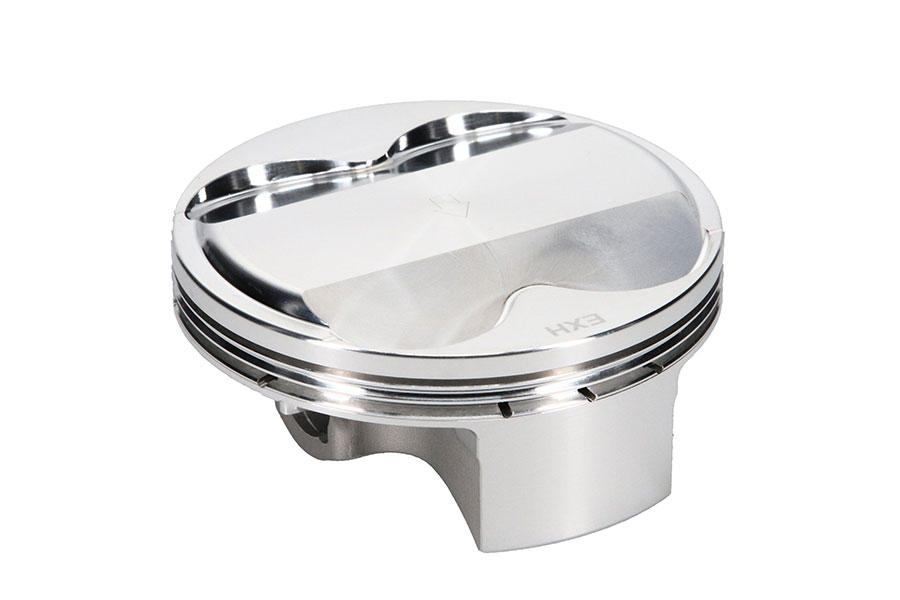

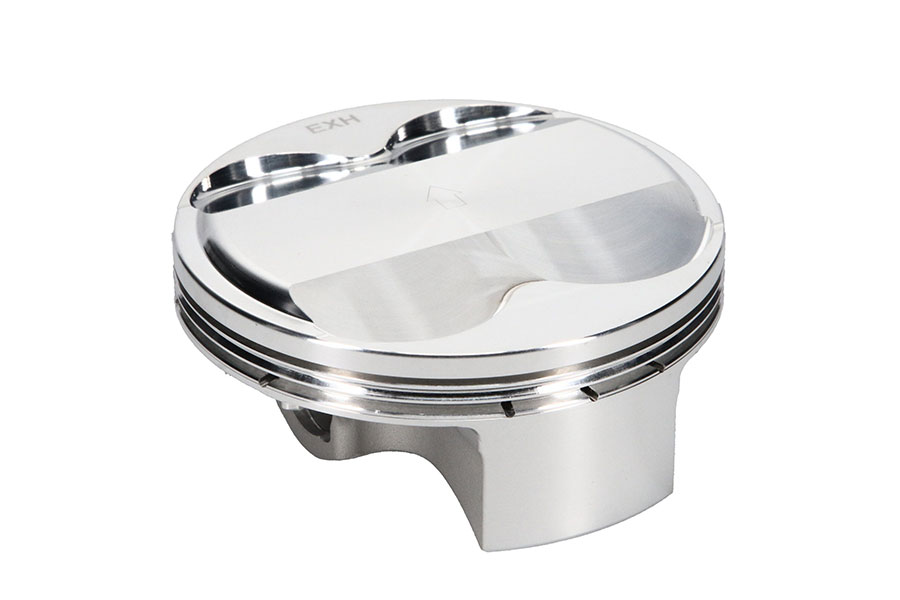

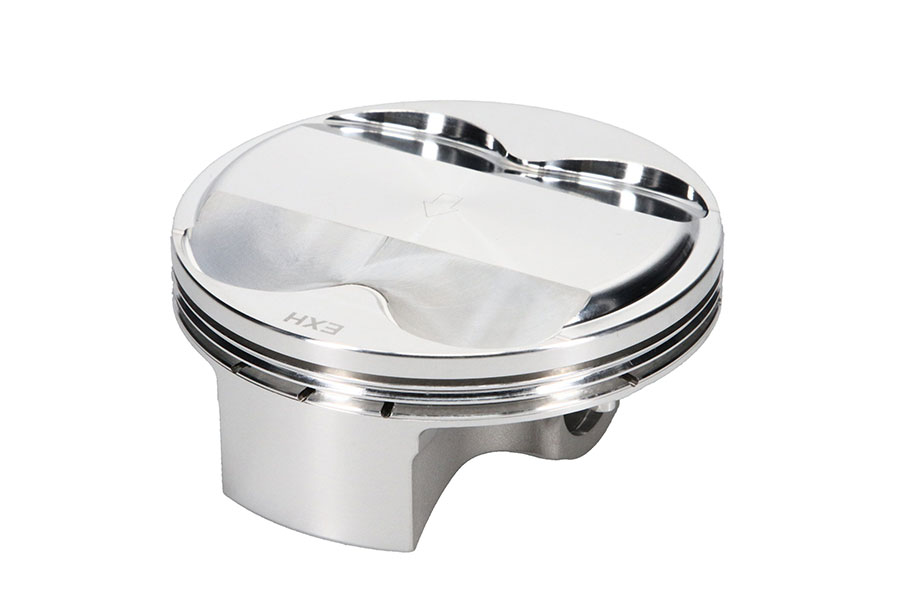

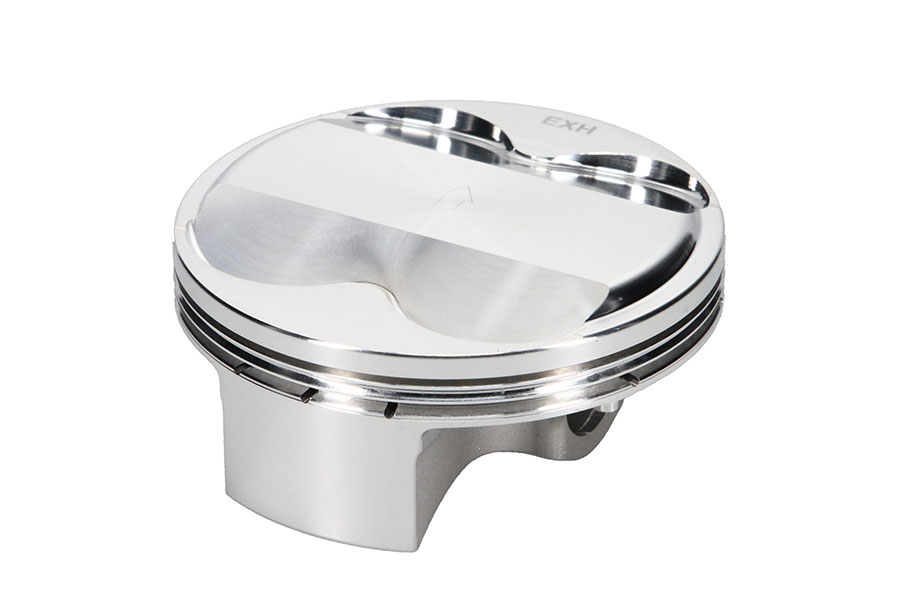

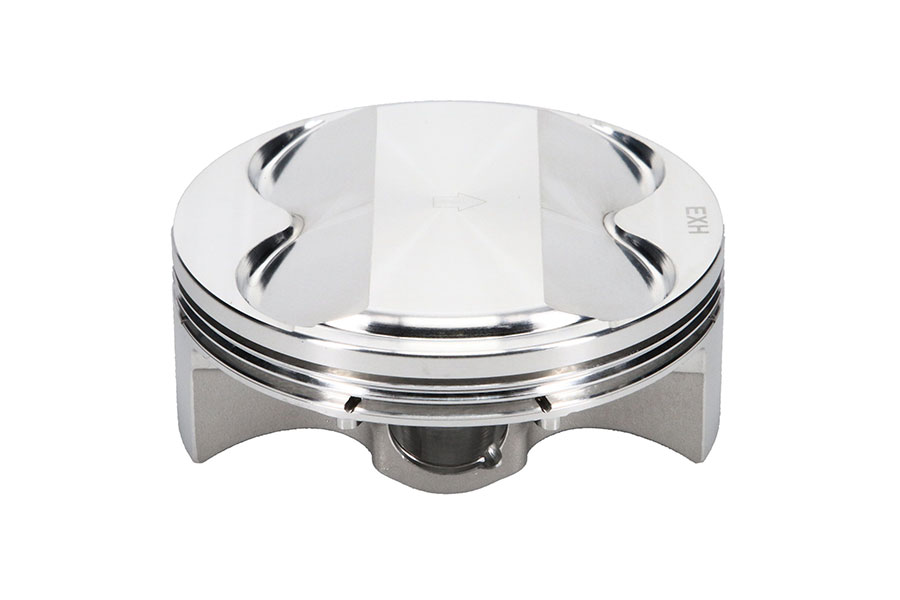

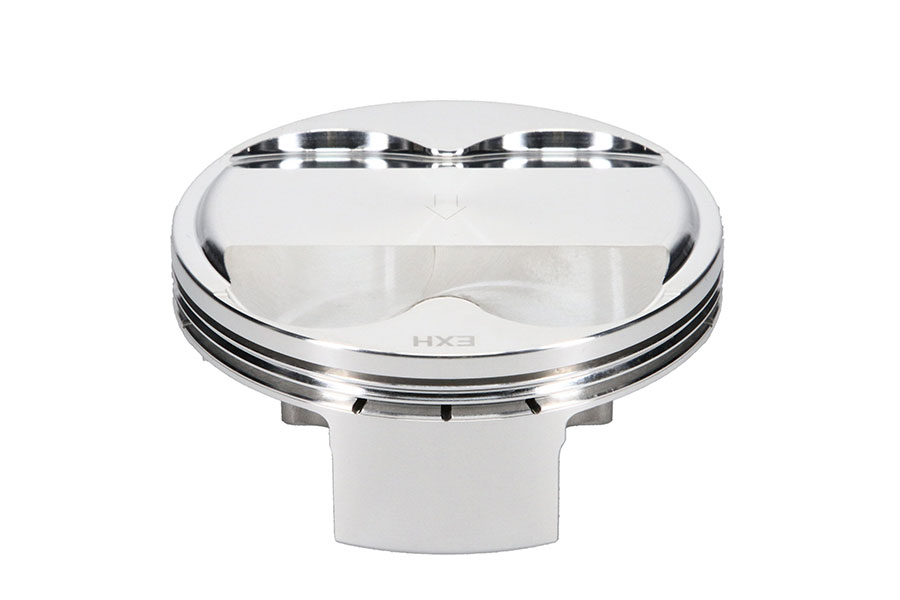

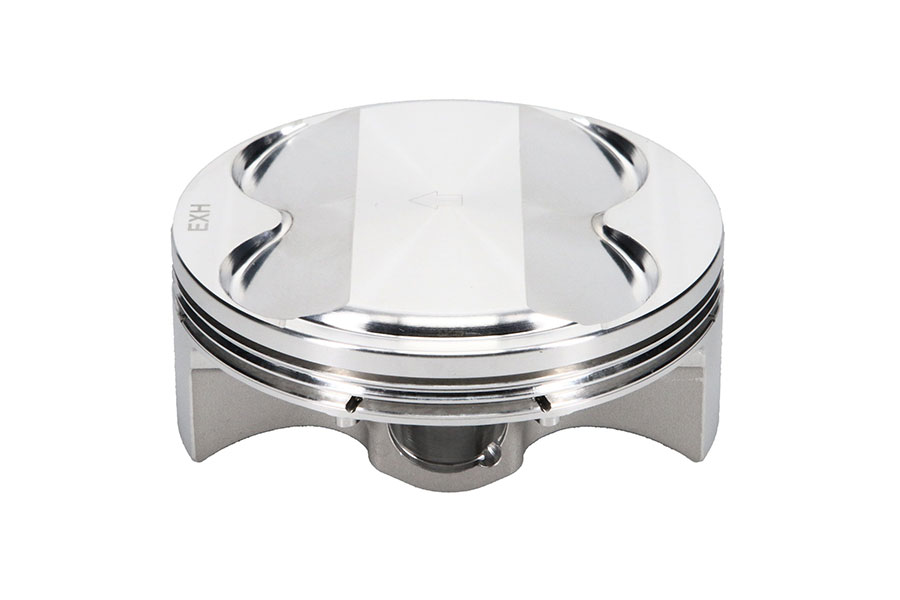

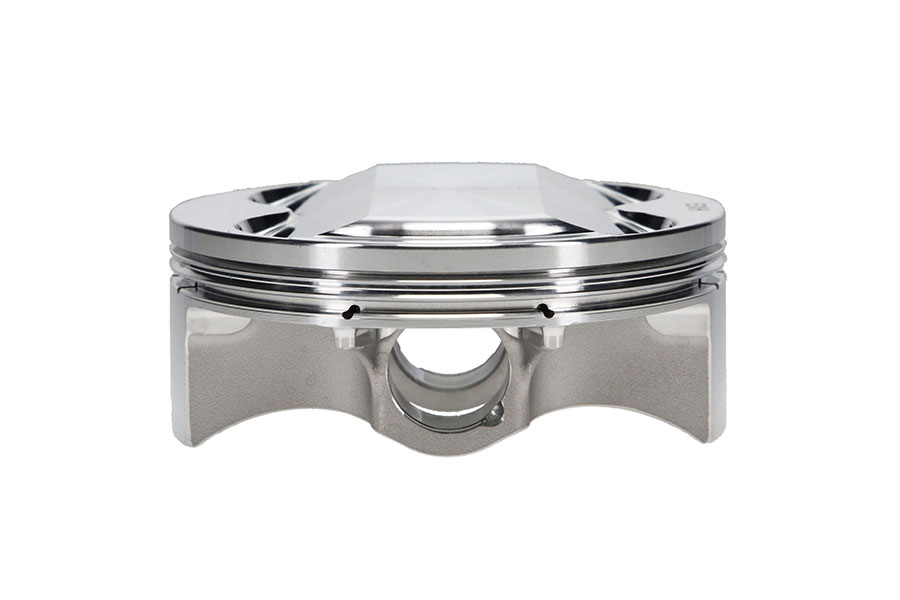

Note: Product images may only represent the class of product and not the specific model.
- Bore Diameter: 95.00mm
- Technical Details
Bore Diameter
95.00
Piston Head Type
Dome
Cylinder Head
4 VALVE 520
Piston Pin Outside Diameter
0.787
Piston Pin Length
2.050
Piston Pin Material
9310
Ringset Included
Yes
Top Compression Ring Thickness
0.048
Oil Ring Thickness
0.0795
Piston Material
2618
Forging Type
FSR
Piston Avg Weight
270
Compression Ratio - Actual
12.50:1
Pin Wall Thickness
0.160
Matched Vehicles
The following are a match for this product.
| KTM 520 EXC - 2002, 2001, 2000 |
| KTM 520 SX - 2002, 2001, 2000 |
| KTM 525 EXC - 2006, 2005, 2004, 2003 |
| KTM 525 SX - 2006, 2005, 2004, 2003 |
| KTM 525 XC - 2010, 2009, 2008 |
| Polaris 525 Outlaw IRS - 2011, 2010, 2009, 2008, 2007 |
| Polaris 525 Outlaw S - 2010, 2009, 2008 |
