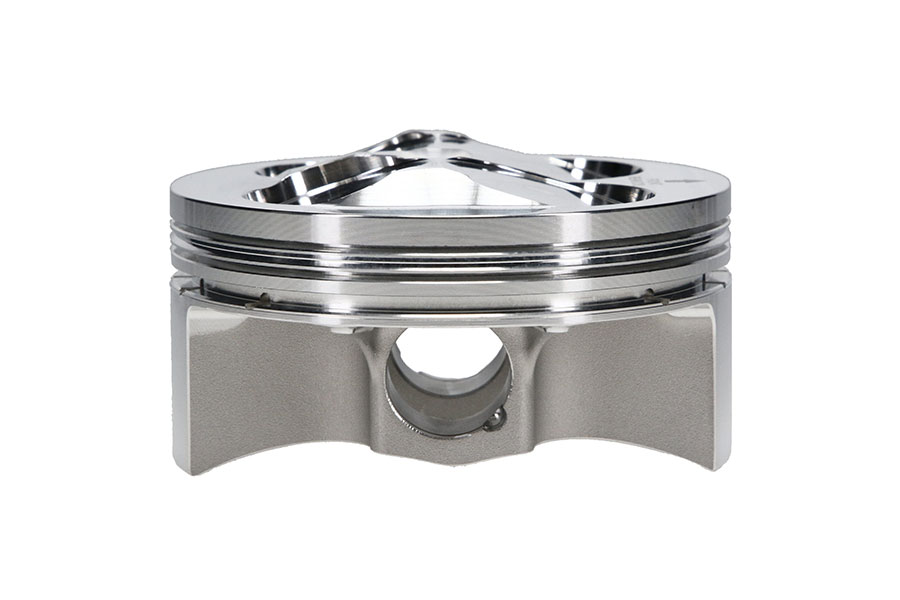

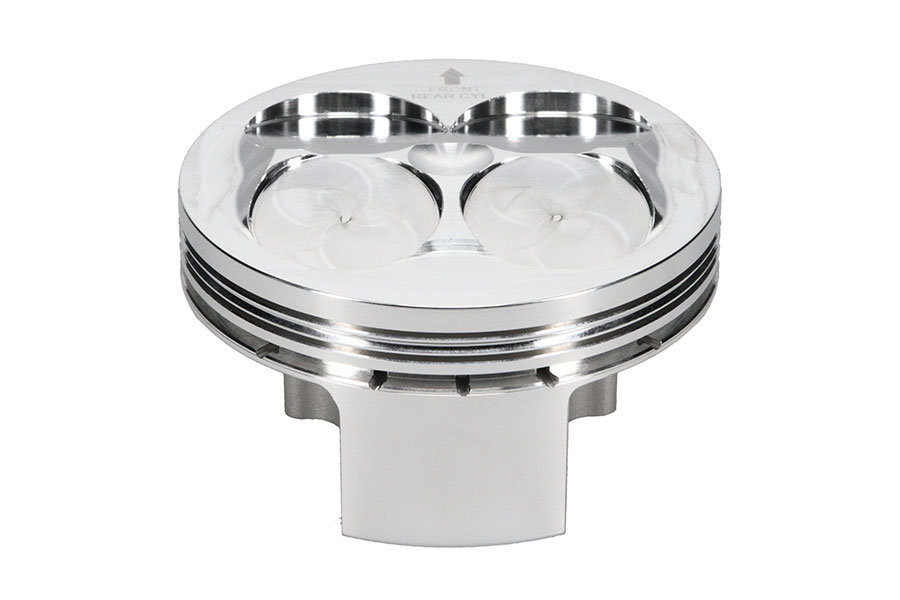

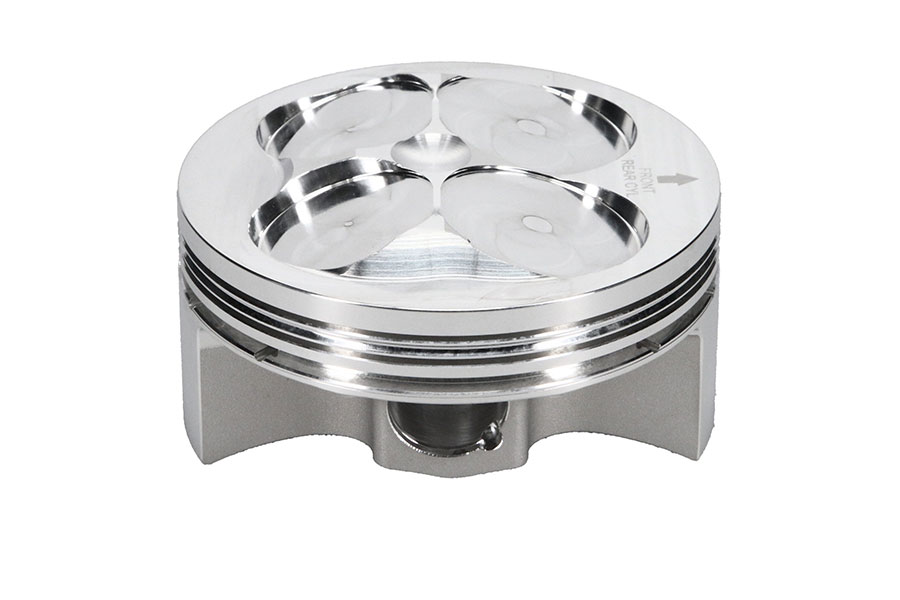

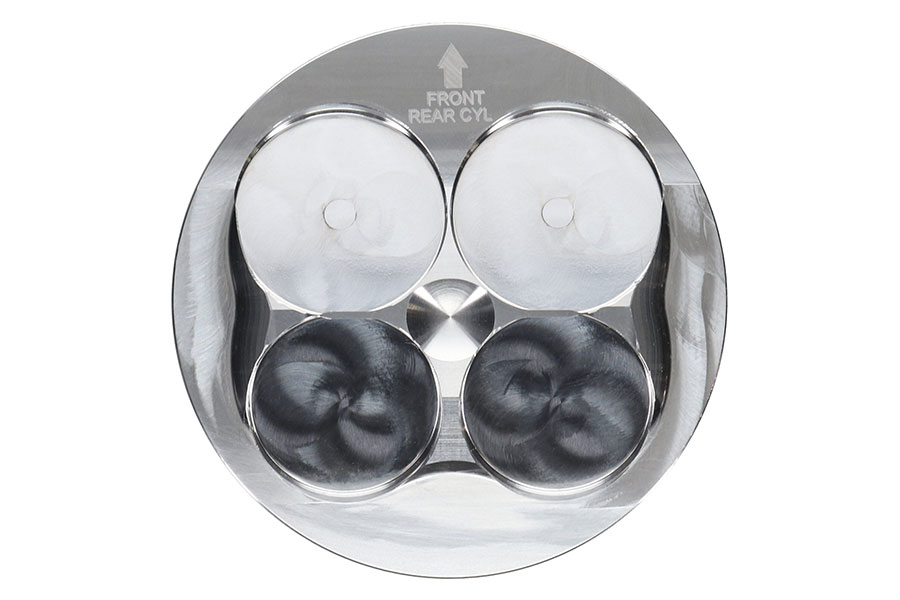

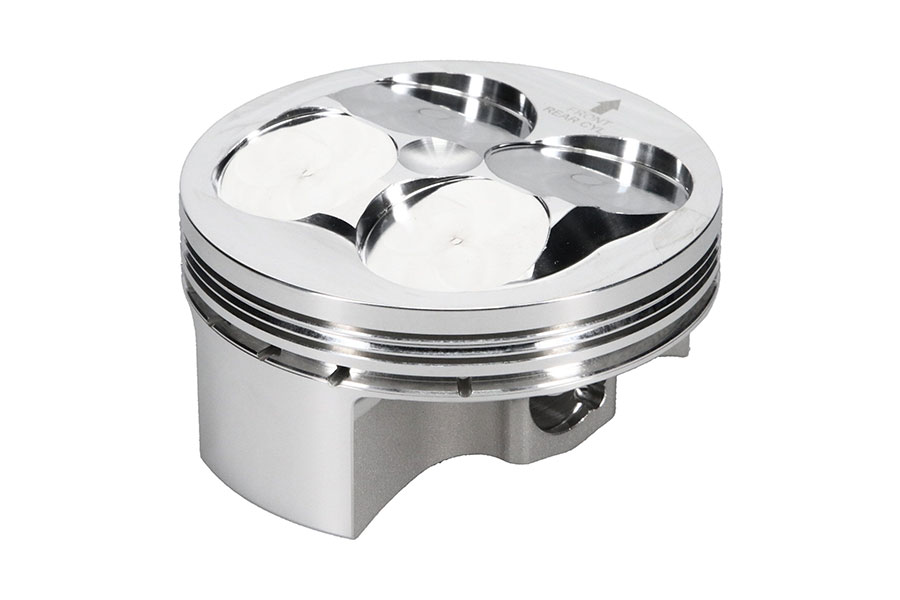

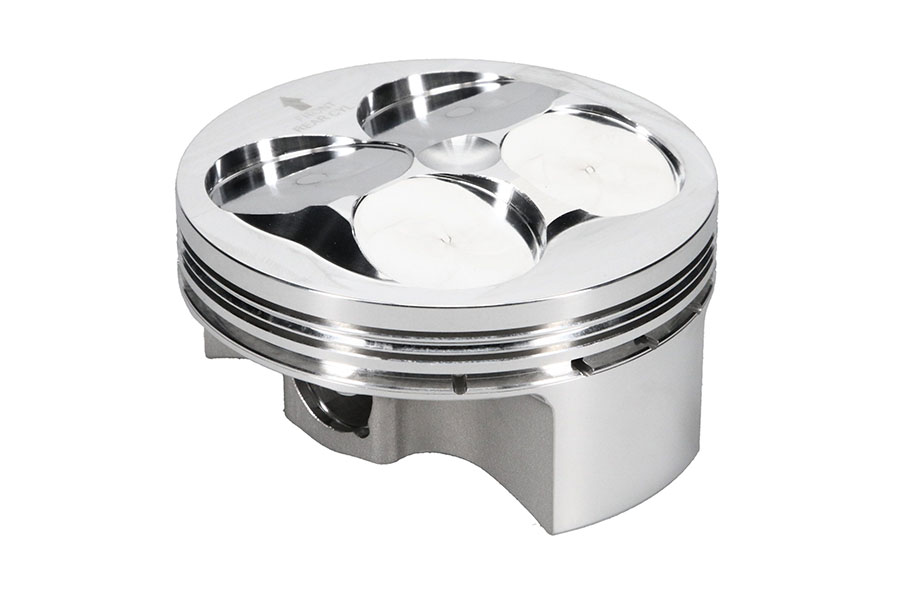

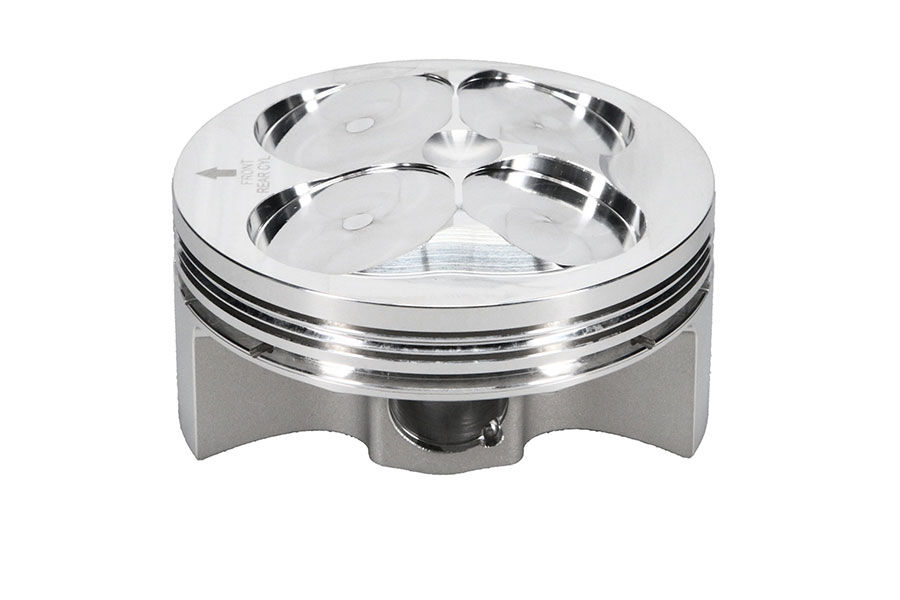

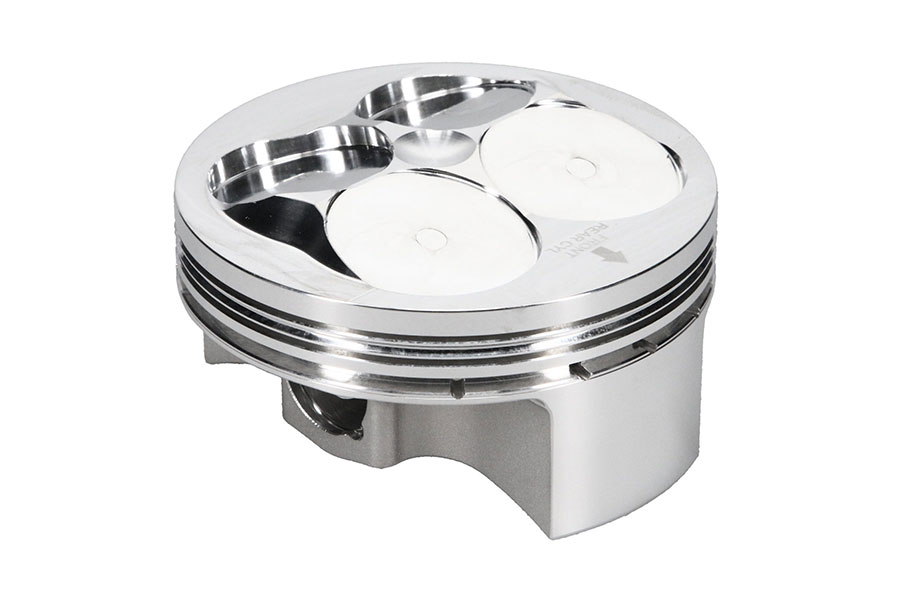

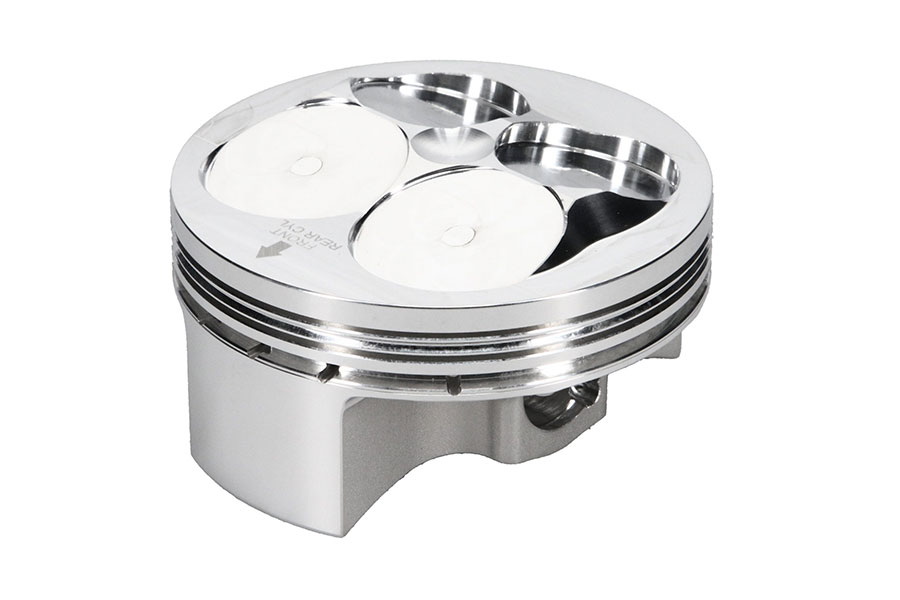

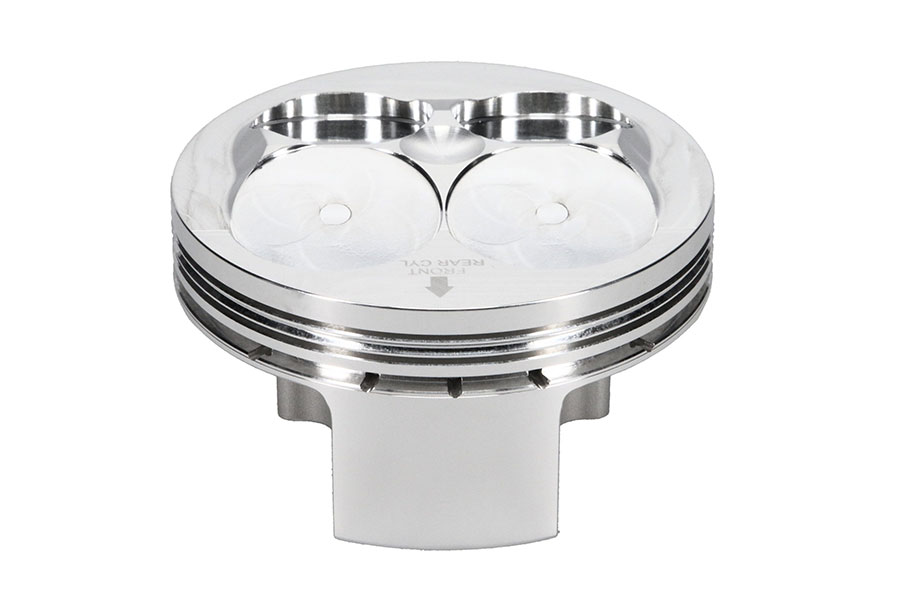

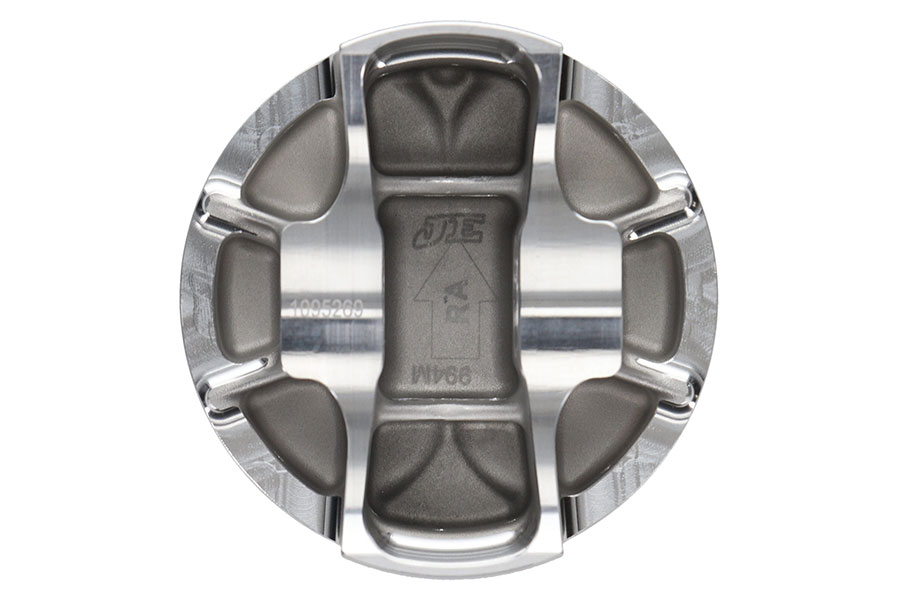

JE Pistons Piston Kit 93.00mm - 300183
Information
Bore Diameter: 93.00mm.
- Manufacturer: JE Pistons
Note: Product images may only represent the class of product and not the specific model.
- Bore Diameter: 93.00mm
- Technical Details
Bore Diameter
93.00
Piston Head Type
Dome
Piston Volume
3.6
Cylinder Head
CAN-AM
Piston Pin Outside Diameter
0.787
Piston Pin Length
2.050
Piston Pin Material
9310
Ringset Included
Yes
Top Compression Ring Thickness
0.04
Second Compression Ring Thickness
0.048
Oil Ring Thickness
0.111
Piston Material
2618
Forging Type
FSR
Piston Avg Weight
312
Compression Ratio - Actual
13.00:1
Pin Wall Thickness
0.160
Matched Vehicles
The following are a match for this product.
| Bombardier 800 Outlander HO EFI 4X4 - 2006 |
| Bombardier 800 Outlander HO EFI 4X4 XT - 2006 |
| Can-Am Outlander 800 HO 4X4 EFI - 2010, 2009, 2008, 2007 |
| Can-Am Outlander 800 HO 4X4 EFI XT - 2010, 2009, 2008, 2007 |
| Can-Am Outlander 800R EFI - 2015, 2014, 2013, 2012, 2011 |
| Can-Am Outlander 800R EFI DPS - 2015, 2014, 2013 |
| Can-Am Outlander 800R EFI X MR - 2015, 2014, 2013, 2012 |
| Can-Am Outlander 800R EFI X XC - 2011 |
| Can-Am Outlander 800R EFI XT - 2015, 2014, 2013, 2012, 2011 |
| Can-Am Outlander 800R EFI XT-P - 2015, 2014, 2013 |
| Can-Am Outlander 800R EFI XT-P - 2015, 2014, 2013 |
| Can-Am Renegade 800 - 2010, 2009, 2008, 2007 |
| Can-Am Renegade 800 X - 2010, 2009, 2008 |
| Can-Am Renegade 800 X XC - 2011, 2010 |
| Can-Am Renegade 800R - 2015, 2014, 2013, 2012, 2011, 2010 |
| Can-Am Renegade 800R EFI X XC - 2012 |
| Can-Am Renegade 800R X XC - 2015, 2014, 2013, 2012, 2011, 2010 |
