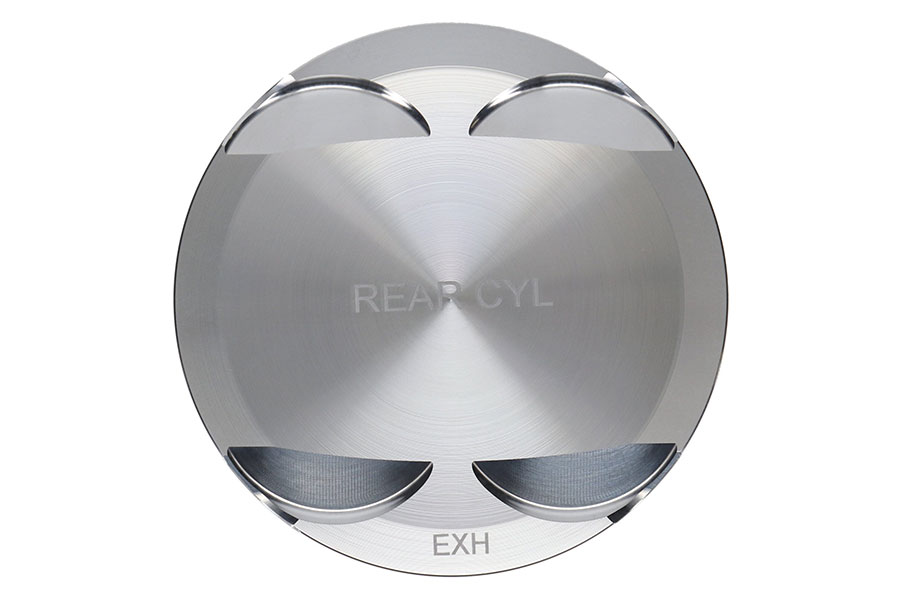

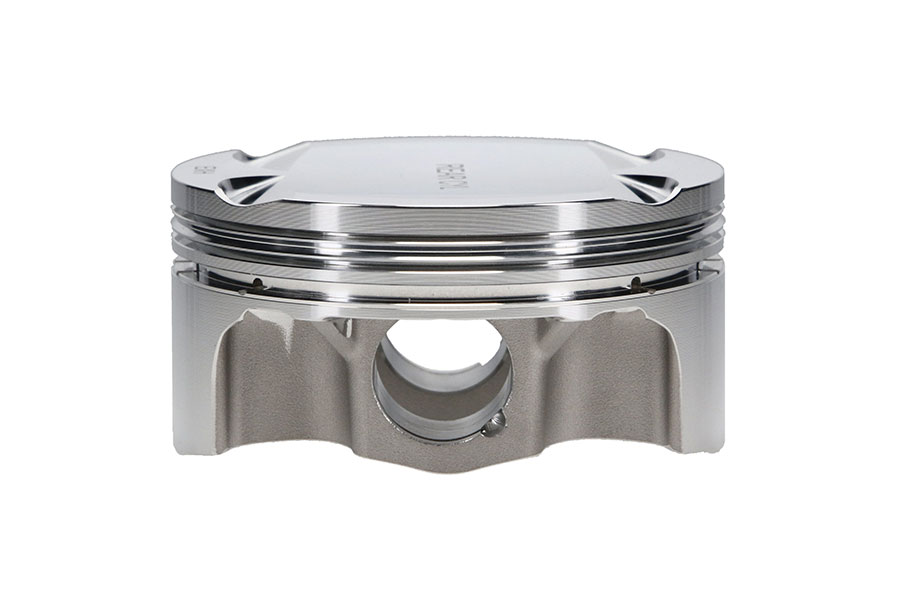

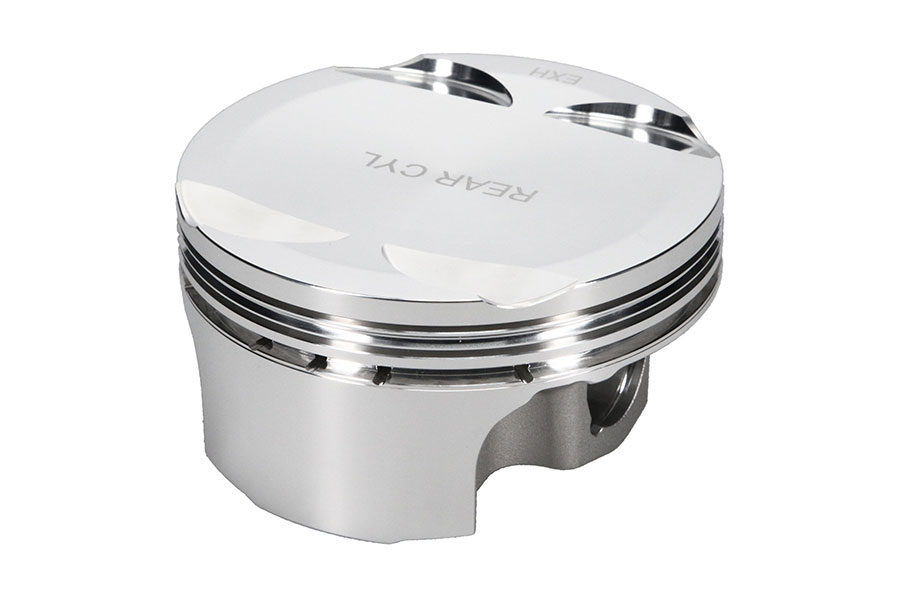

JE Pistons Piston Kit 91.00mm - 324953
Information
Bore Diameter: 91.00mm.
- Manufacturer: JE Pistons

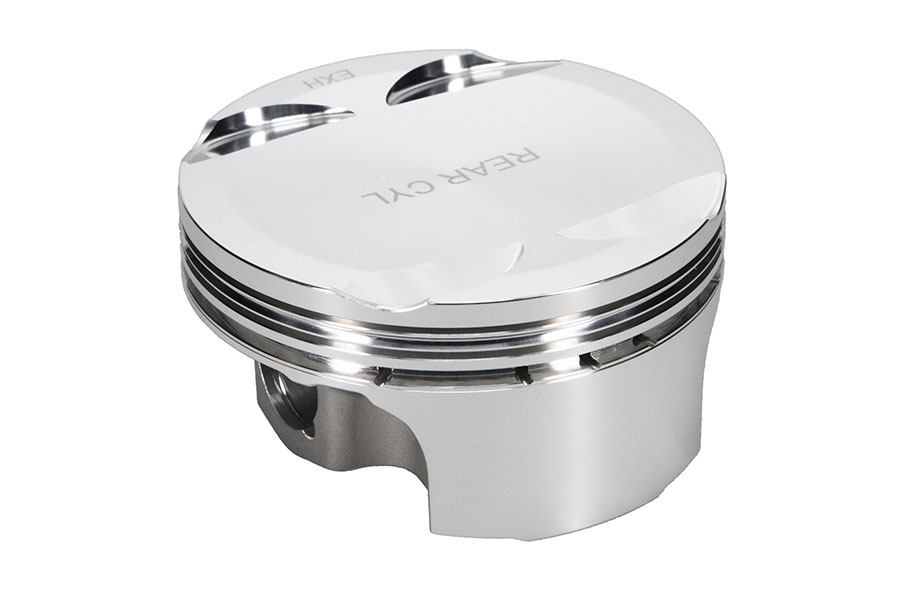

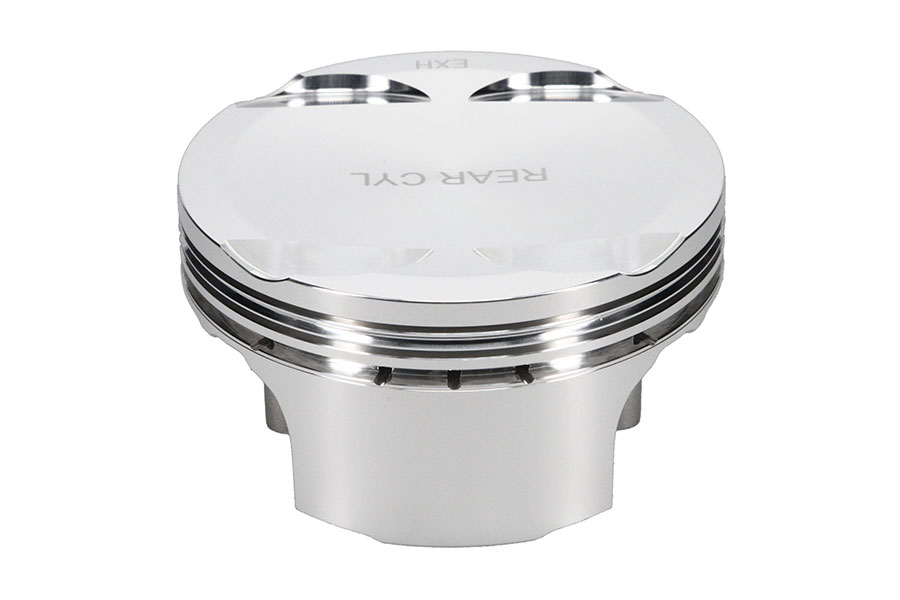

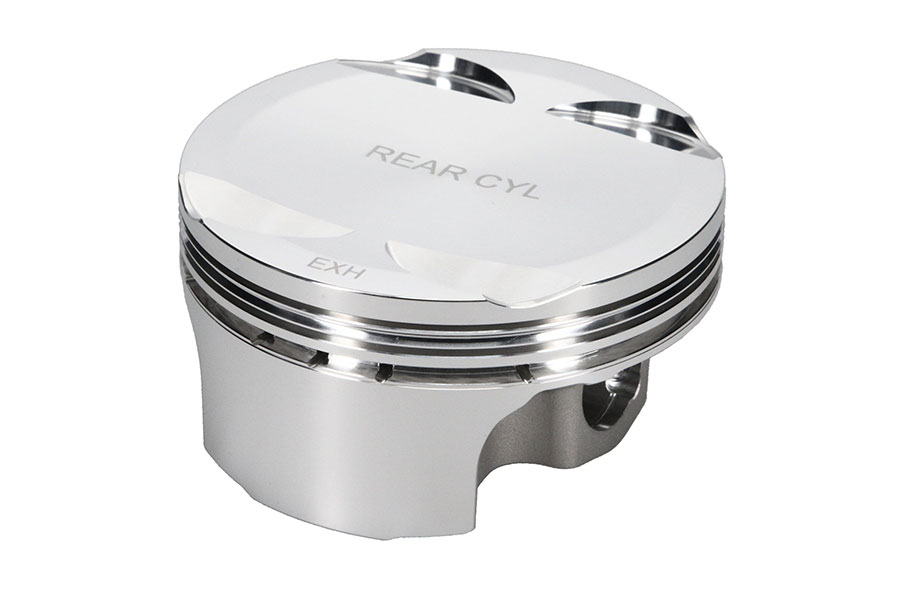

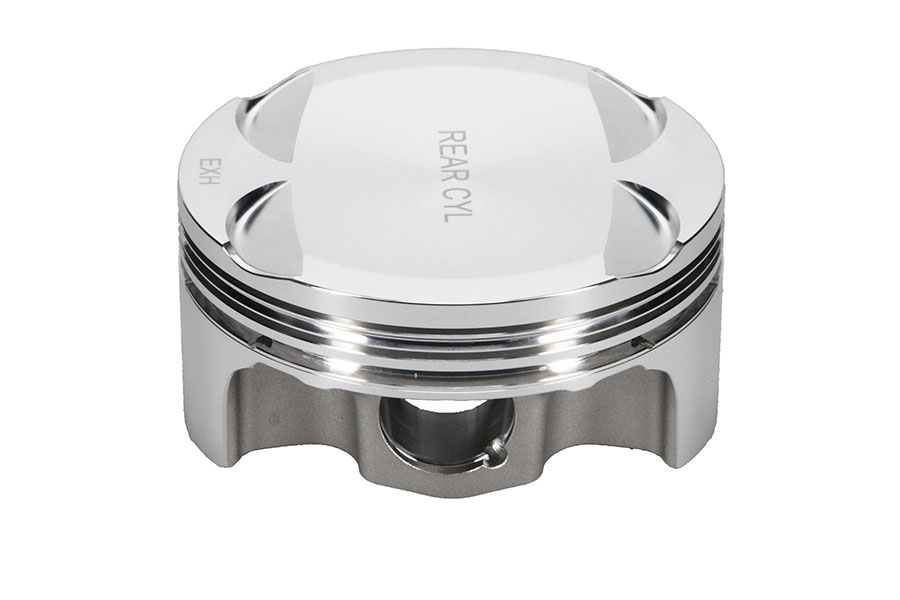

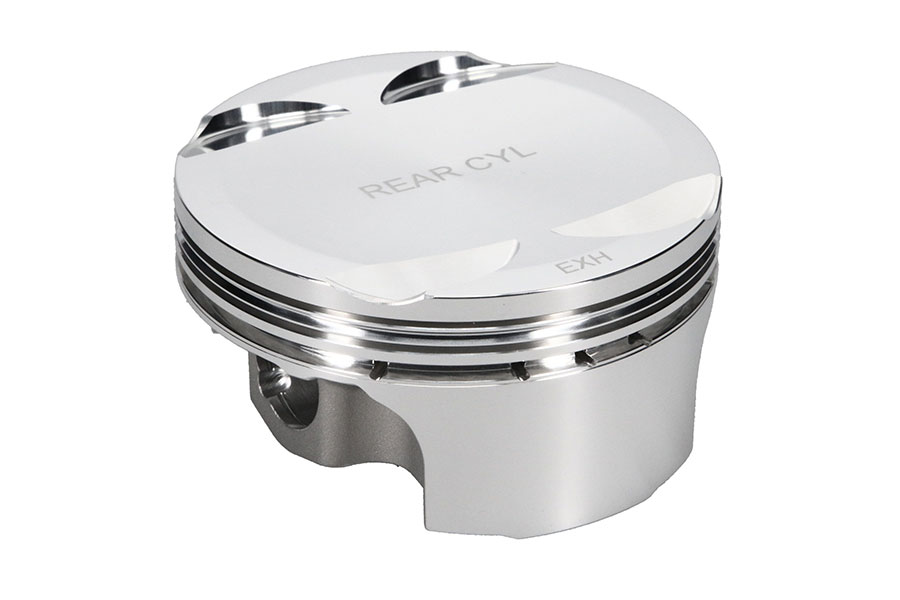

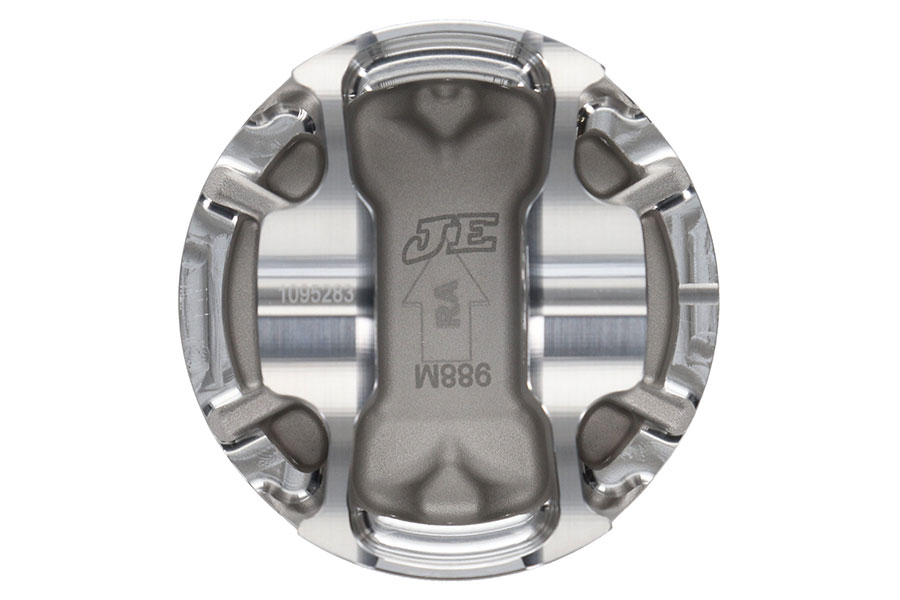

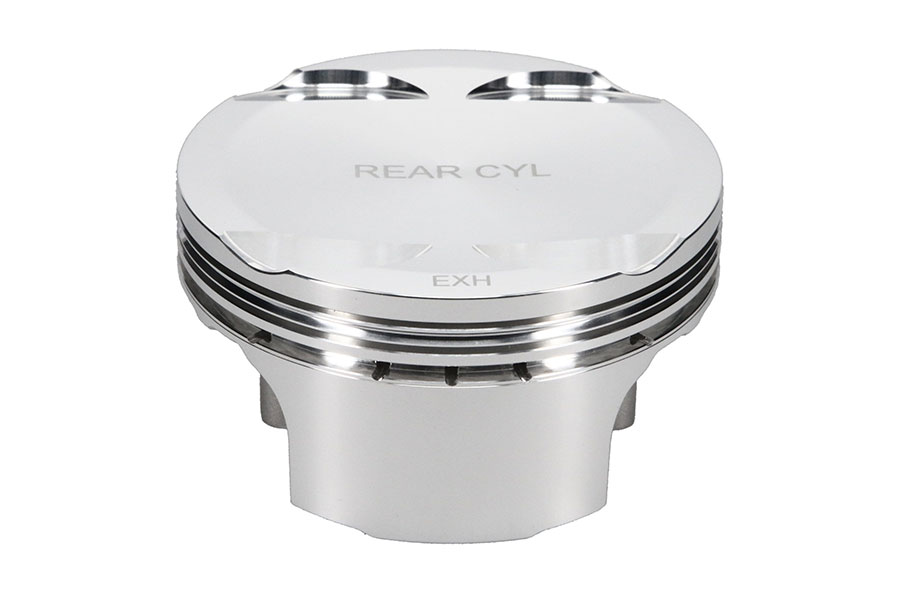

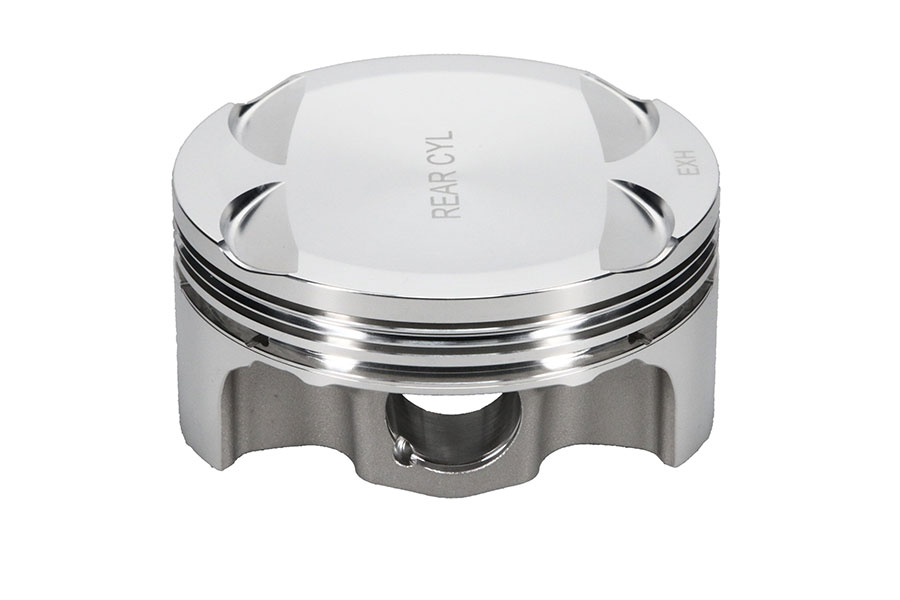

Note: Product images may only represent the class of product and not the specific model.
- Bore Diameter: 91.00mm
- Technical Details
Bore Diameter
91.00
Piston Head Type
Dish
Piston Volume
-4.9
Cylinder Head
MAVERICK 1000
Piston Pin Outside Diameter
0.866
Piston Pin Length
2.250
Piston Pin Material
9310
Ringset Included
Yes
Top Compression Ring Thickness
0.04
Second Compression Ring Thickness
0.048
Oil Ring Thickness
0.111
Piston Material
2618
Forging Type
FSR
Piston Avg Weight
314
Compression Ratio - Actual
12.50:1
Pin Wall Thickness
0.150
Matched Vehicles
The following are a match for this product.
| Can-Am Maverick 1000R X RS DPS - 2015 |
