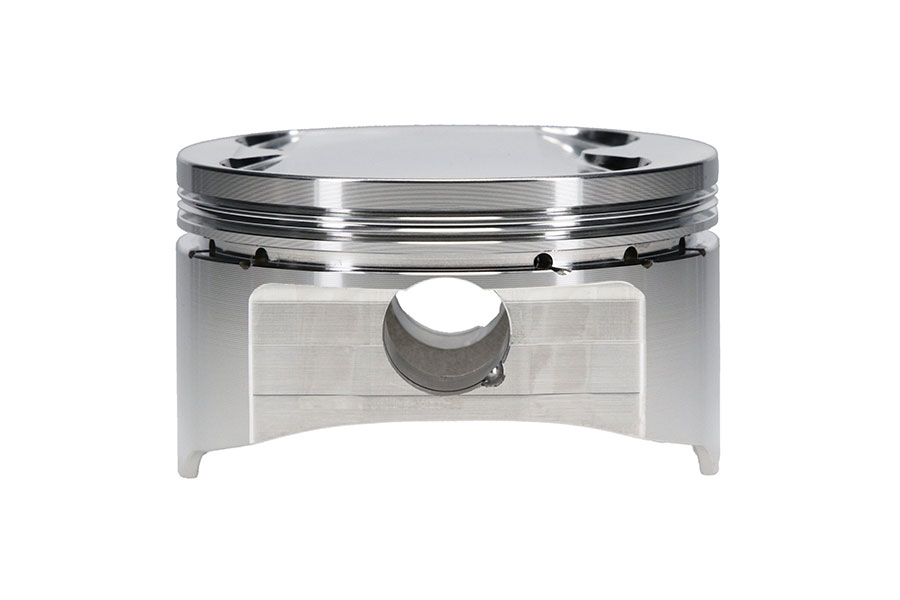

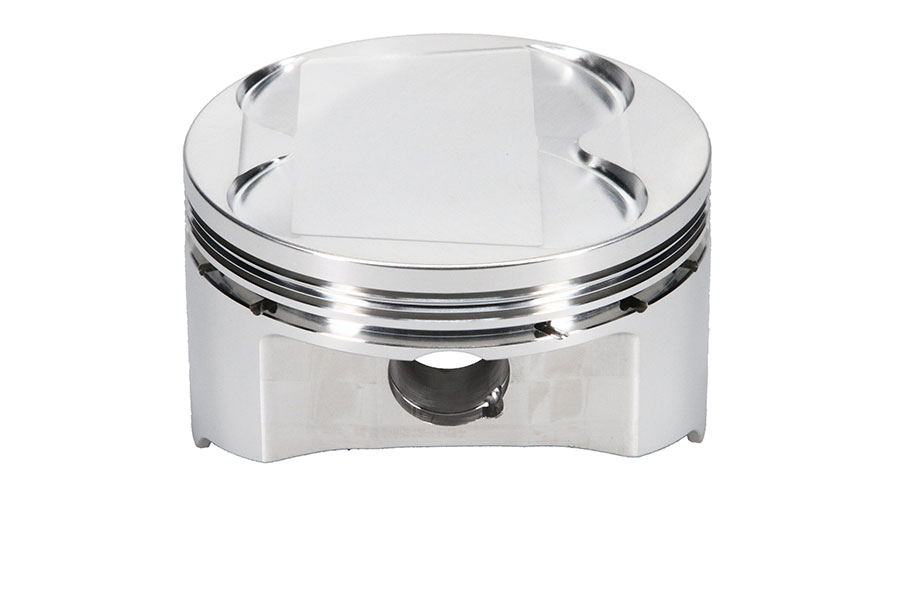

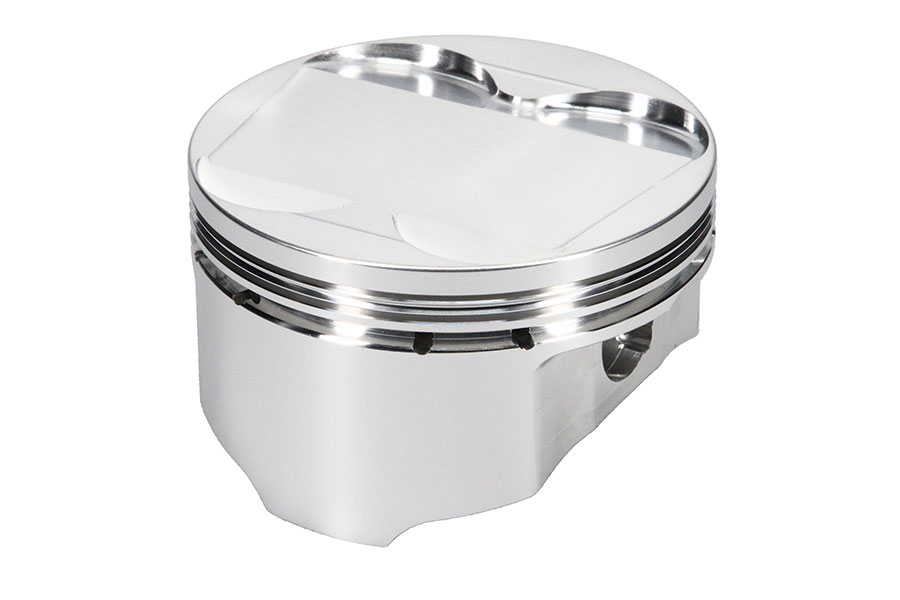

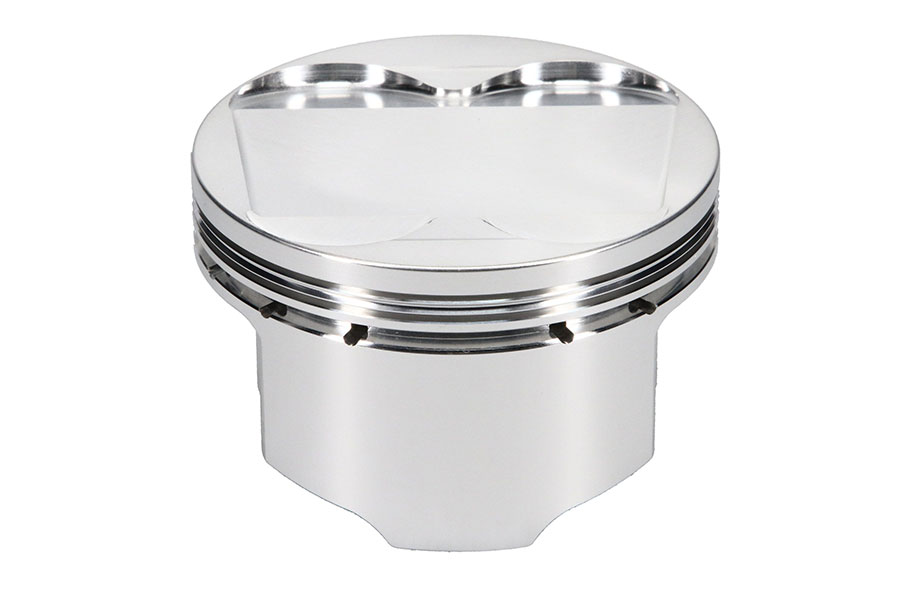

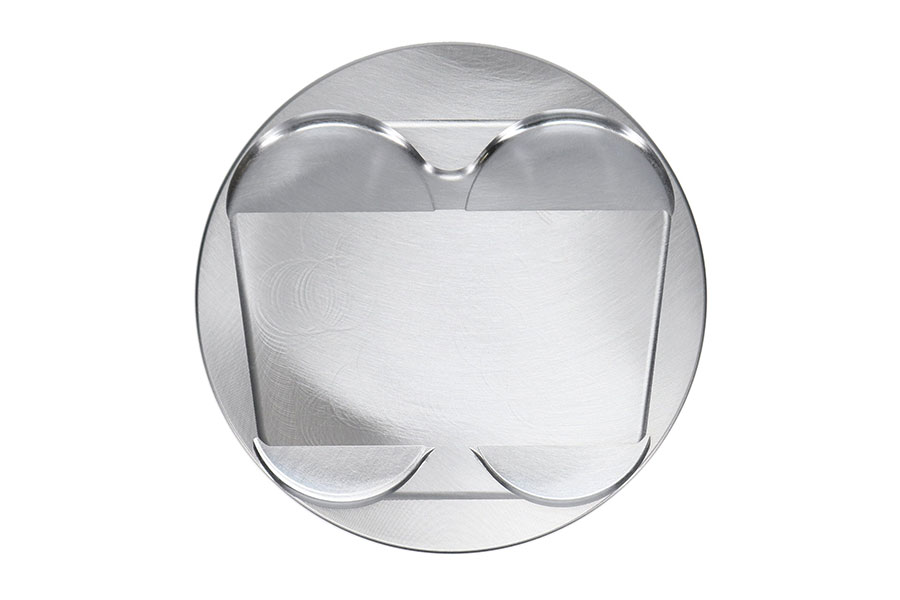

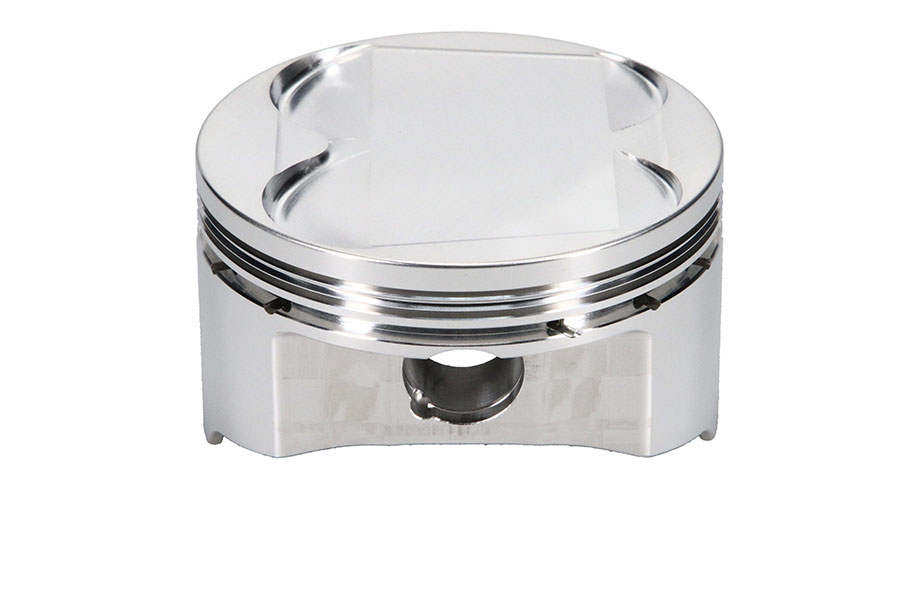

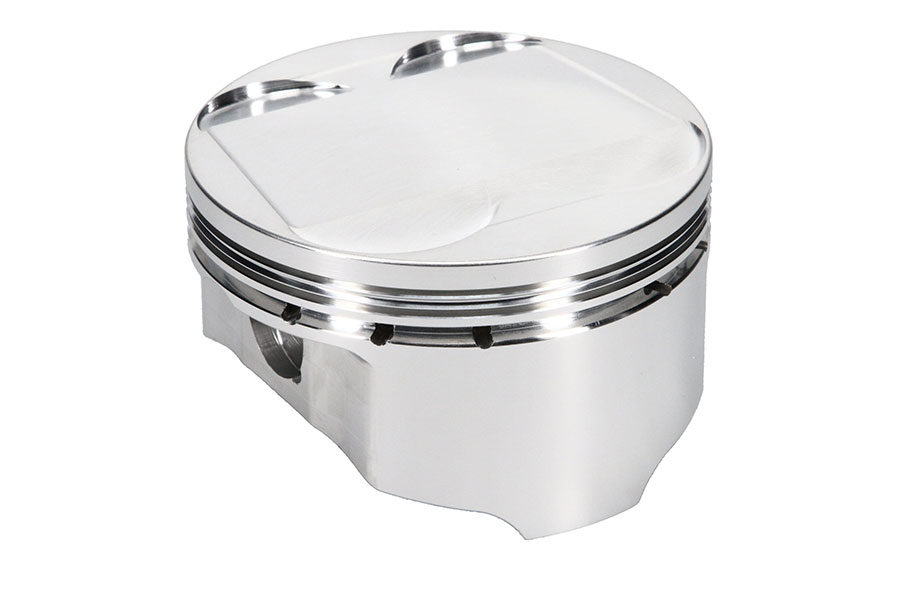

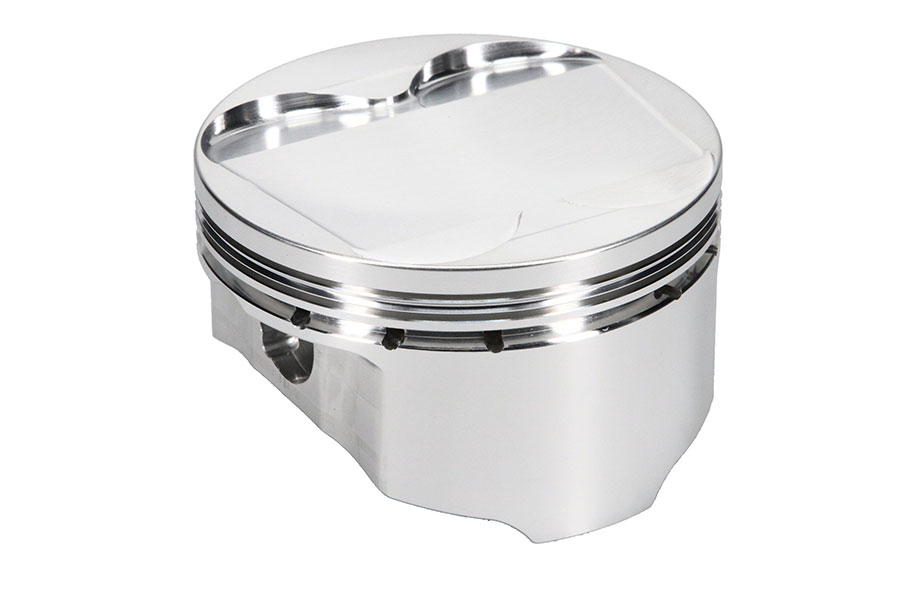

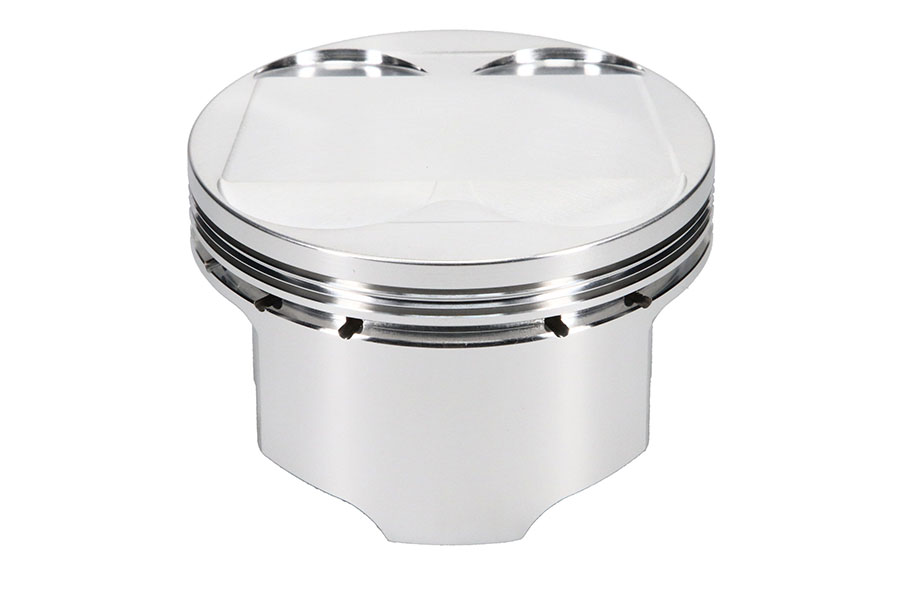

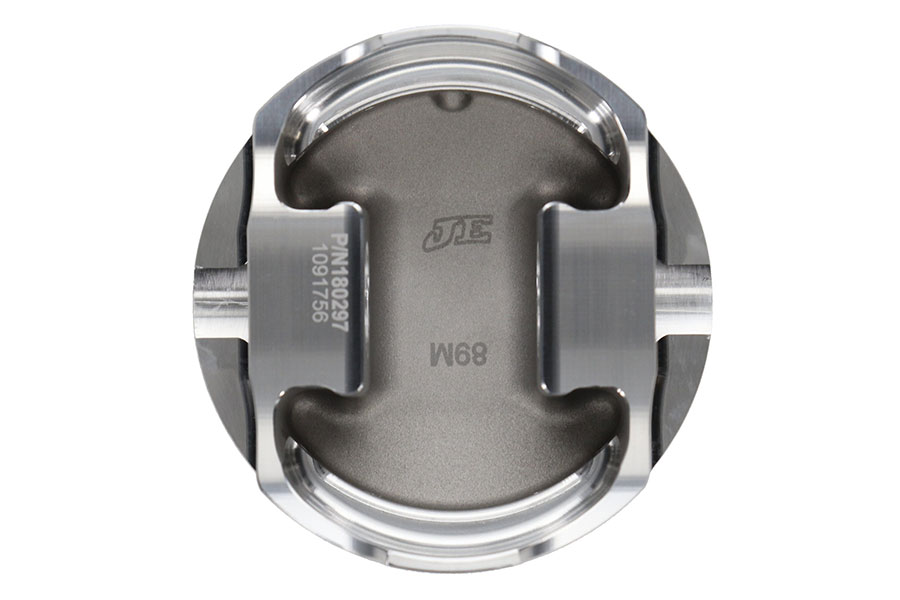

JE Pistons Piston Kit 90.00mm - 180297
Information
Bore Diameter: 90.00mm.
- Manufacturer: JE Pistons
Note: Product images may only represent the class of product and not the specific model.
- Bore Diameter: 90.00mm
- Technical Details
Bore Diameter
90.00
Piston Head Type
Dish
Cylinder Head
BMW 4 VALVE
Piston Pin Outside Diameter
0.787
Piston Pin Length
2.350
Piston Pin Material
9310
Ringset Included
Yes
Top Compression Ring Thickness
0.04
Second Compression Ring Thickness
0.048
Oil Ring Thickness
0.111
Piston Material
2618
Forging Type
Round
Piston Avg Weight
283
Compression Ratio - Actual
12.00:1
Pin Wall Thickness
0.100
Matched Vehicles
The following are a match for this product.
| Arctic Cat 400 DVX - 2008, 2007, 2006, 2005, 2004 |
| Arctic Cat 400 DVX TS - 2007, 2006 |
| Kawasaki KFX-400 - 2006, 2005, 2004, 2003 |
| Kawasaki KLX-400R - 2003 |
| Kawasaki KLX-400SR - 2003 |
| Suzuki DRZ-400 - 2004, 2003, 2002, 2001, 2000 |
| Suzuki DRZ-400E - 2007, 2006, 2005, 2004, 2003, 2002, 2001, 2000 |
| Suzuki DRZ-400S - 2016, 2015, 2014, 2013, 2012, 2011 |
| Suzuki DRZ-400S - 2016, 2015, 2014, 2013, 2012, 2011 |
| Suzuki LT-Z400 Quadsport Z - 2014, 2013, 2012 |
| Suzuki LT-Z400 Quadsport Z - 2014, 2013, 2012 |
| Suzuki LT-Z400 Quadsport Z LE - 2012 |
