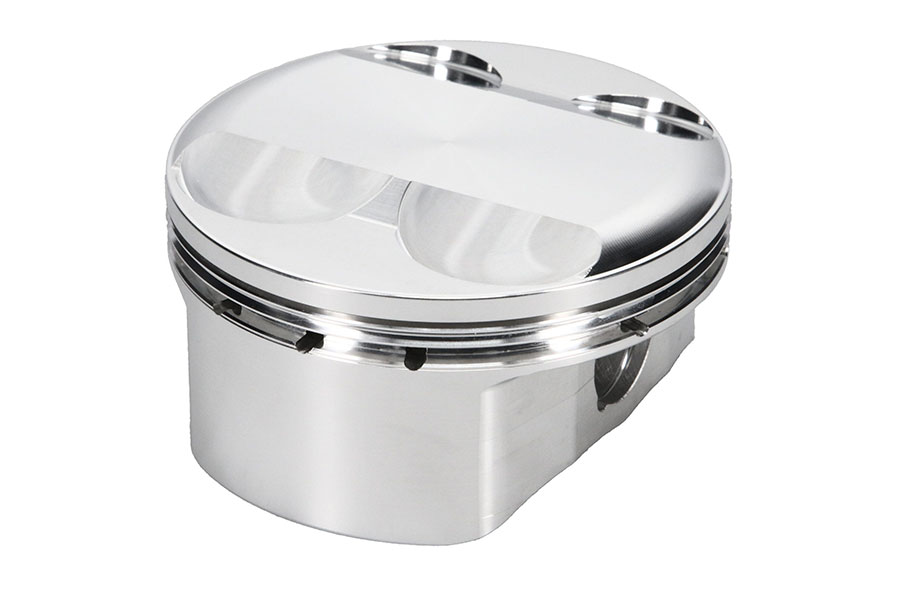

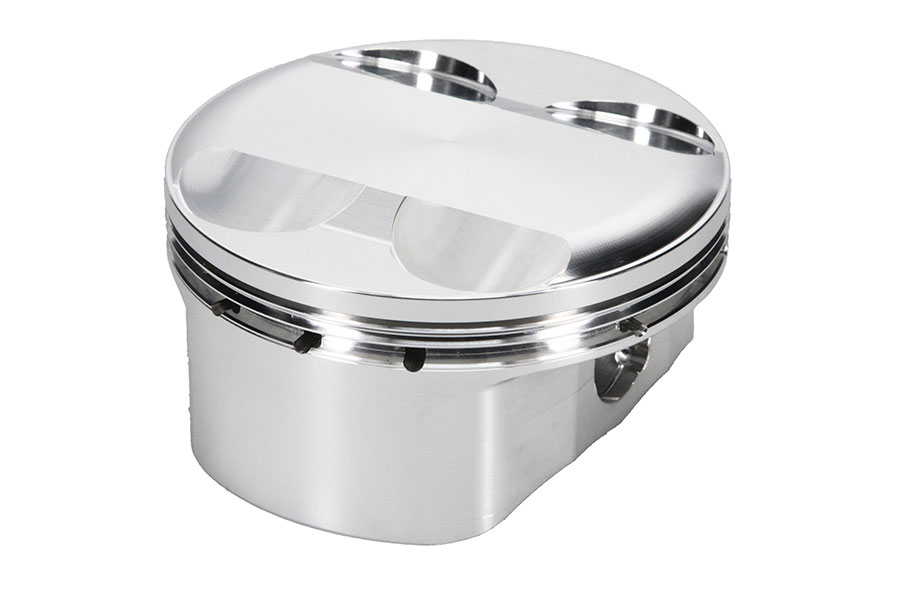

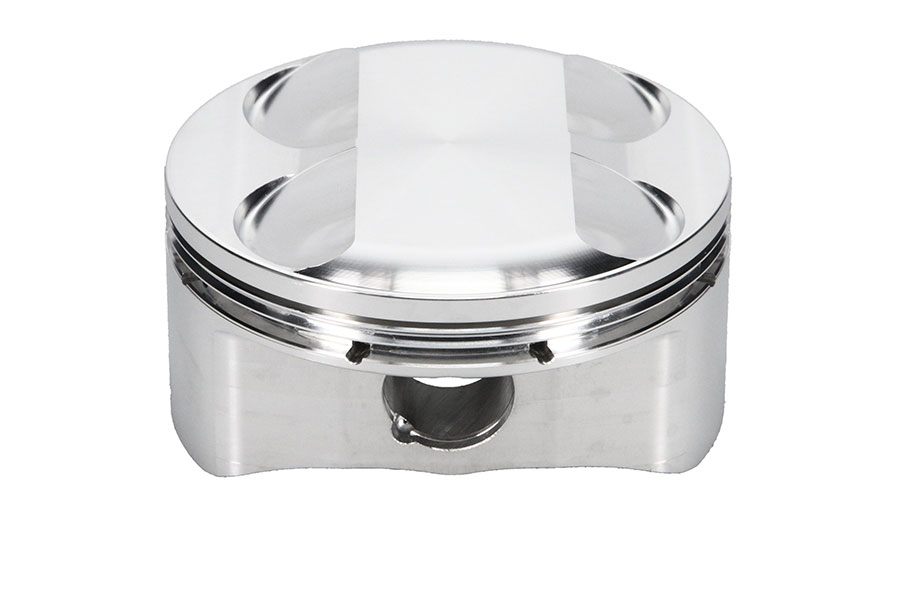

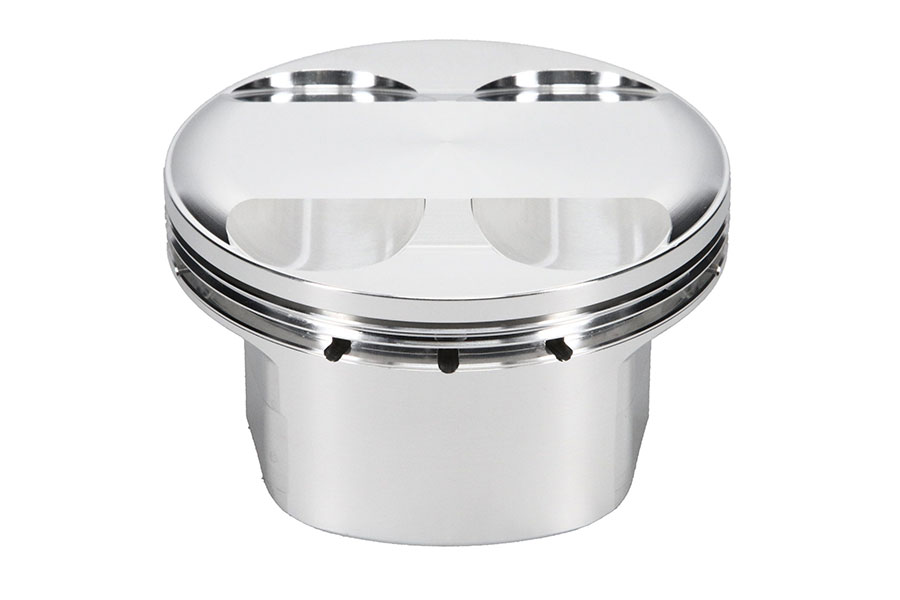

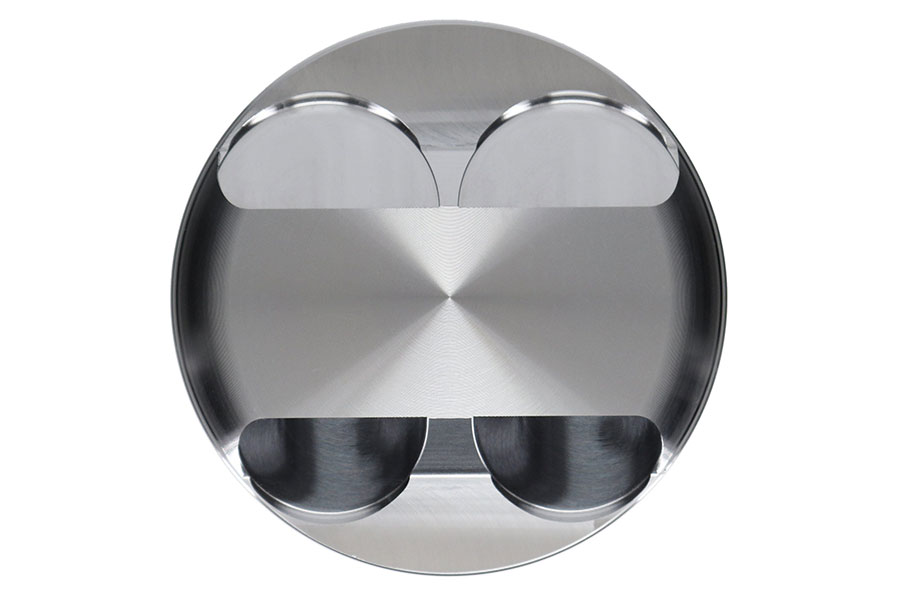

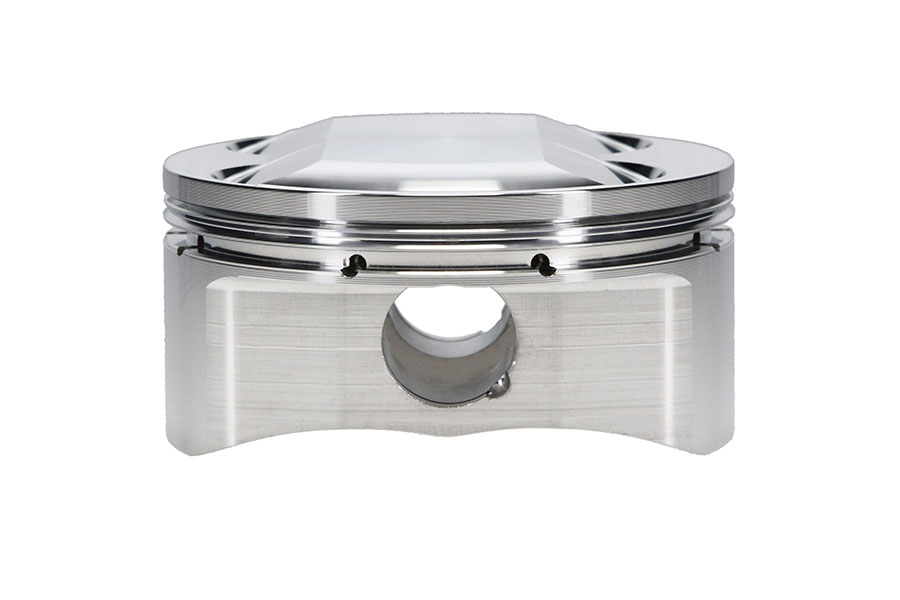

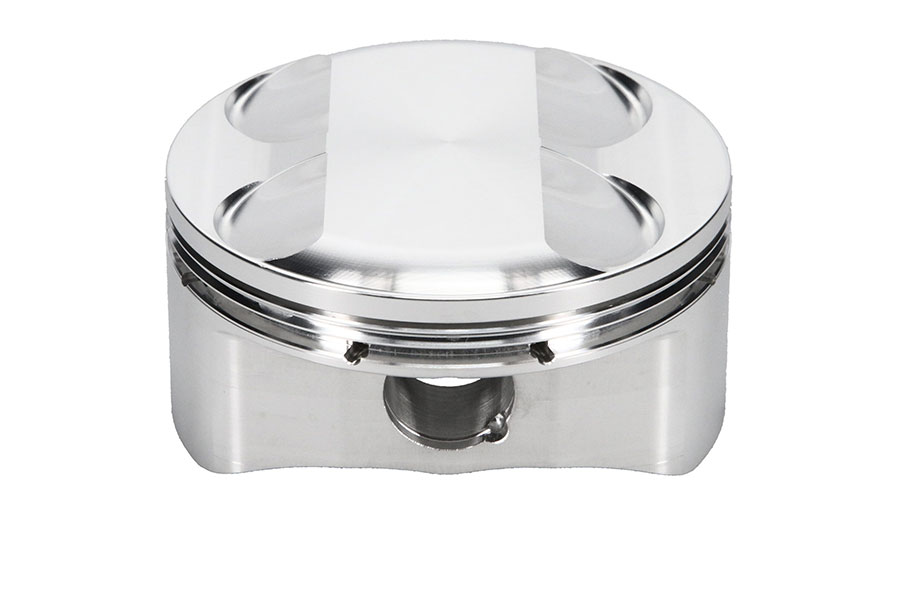

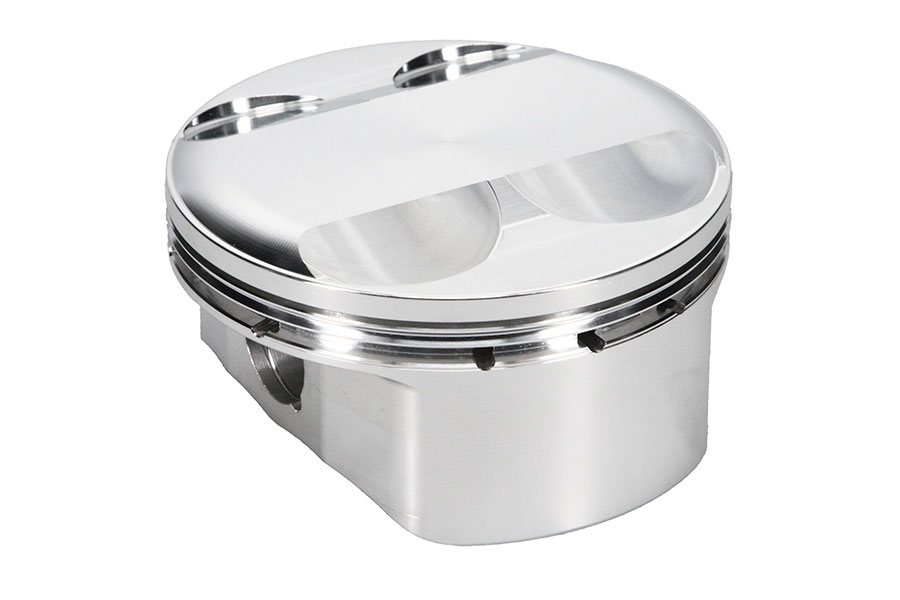

JE Pistons Piston Kit 89.00mm - 274221
Information
Bore Diameter: 89.00mm.
- Manufacturer: JE Pistons

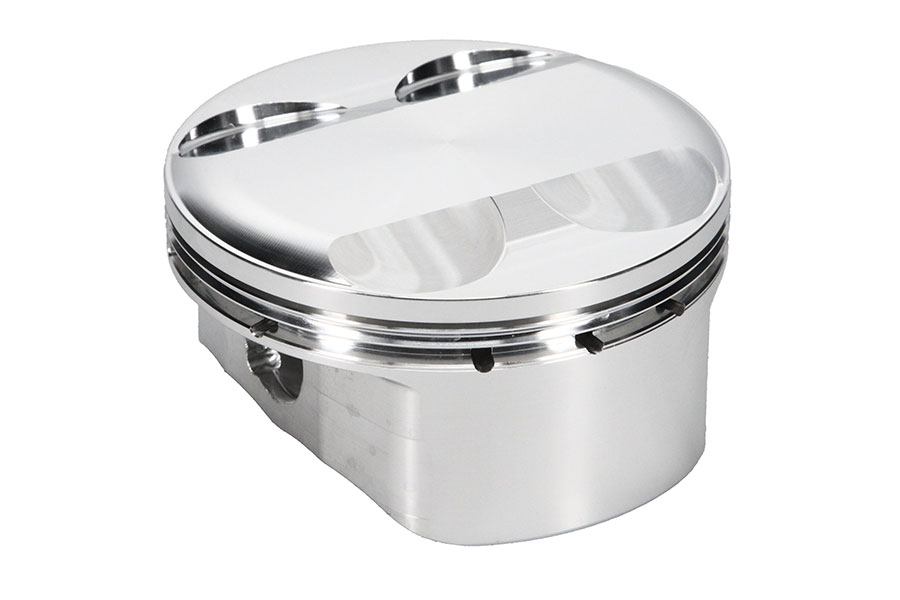

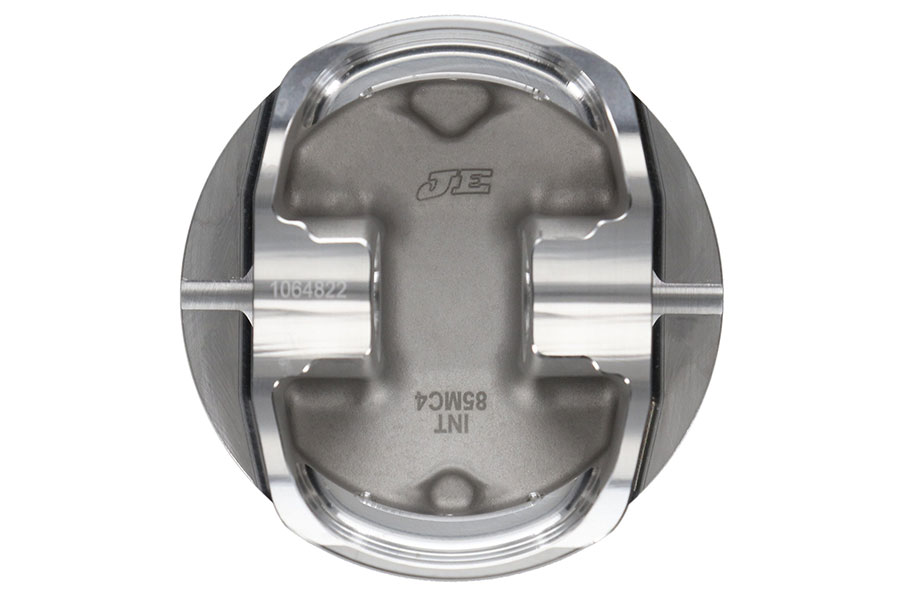

Note: Product images may only represent the class of product and not the specific model.
- Bore Diameter: 89.00mm
- Technical Details
Bore Diameter
89.00
Piston Head Type
Dome
Piston Volume
38.7
Cylinder Head
450XC
Piston Pin Outside Diameter
0.787
Piston Pin Length
2.250
Piston Pin Material
9310
Ringset Included
Yes
Top Compression Ring Thickness
0.0397
Oil Ring Thickness
0.111
Piston Material
2618
Forging Type
Round
Piston Avg Weight
261
Compression Ratio - Actual
12.50:1
Pin Wall Thickness
0.140
Matched Vehicles
The following are a match for this product.
| KTM 450 EXC - 2005, 2004, 2003 |
| KTM 450 MXC - 2005, 2004, 2003 |
| KTM 450 XC - 2009, 2008 |
| KTM 450 XC-W - 2007, 2006 |
