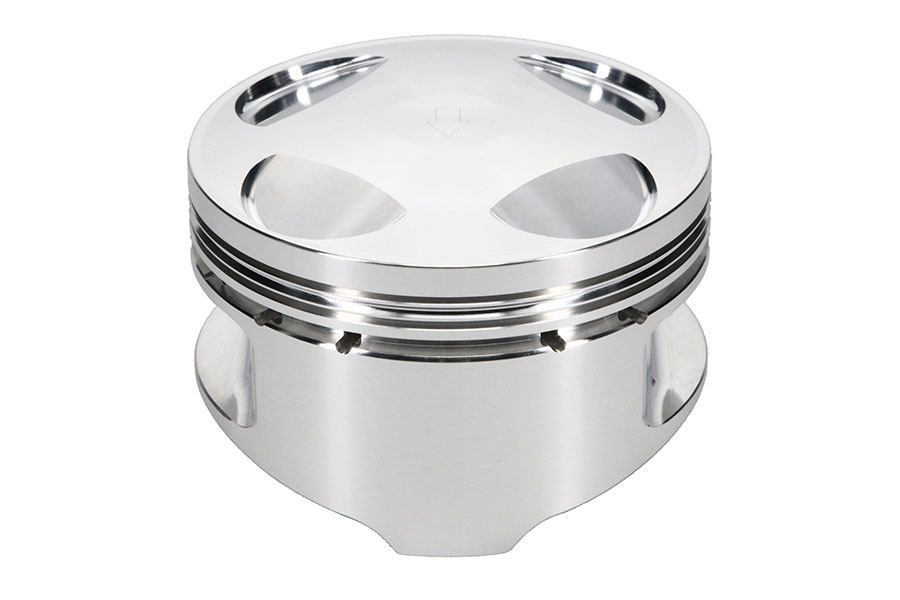

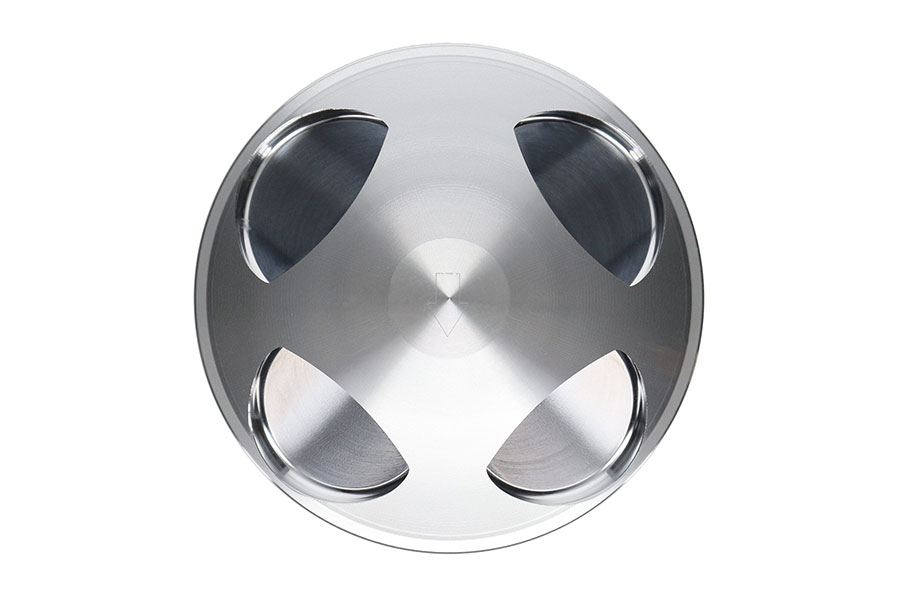

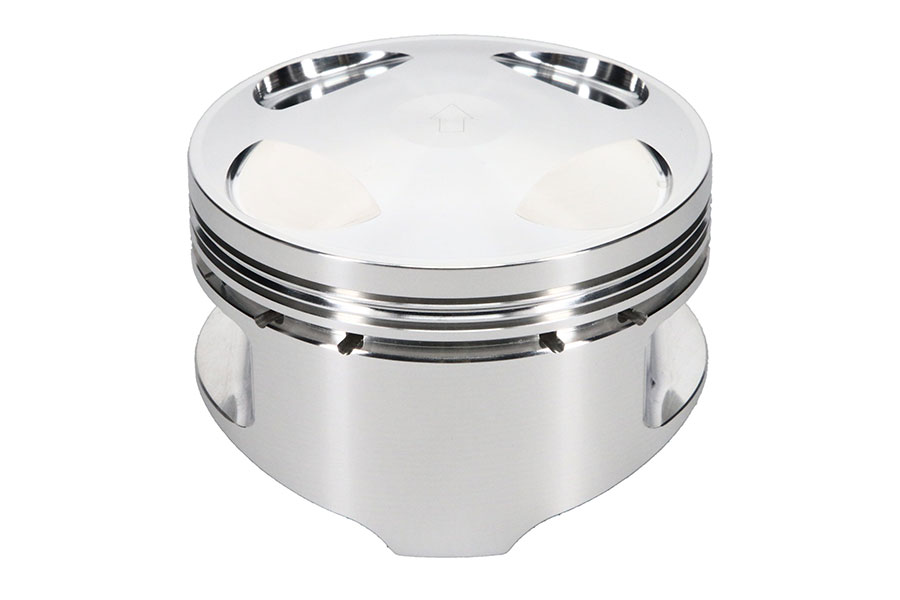

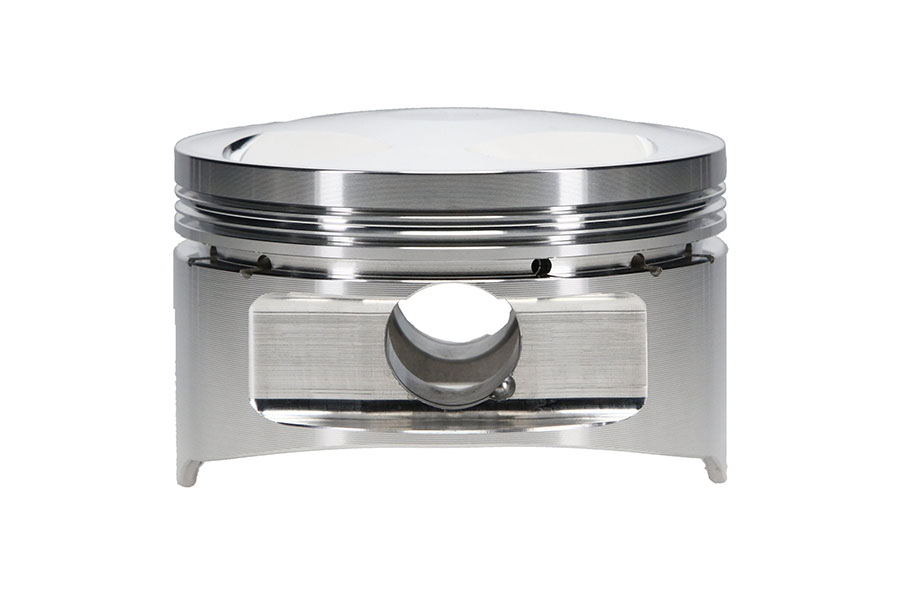

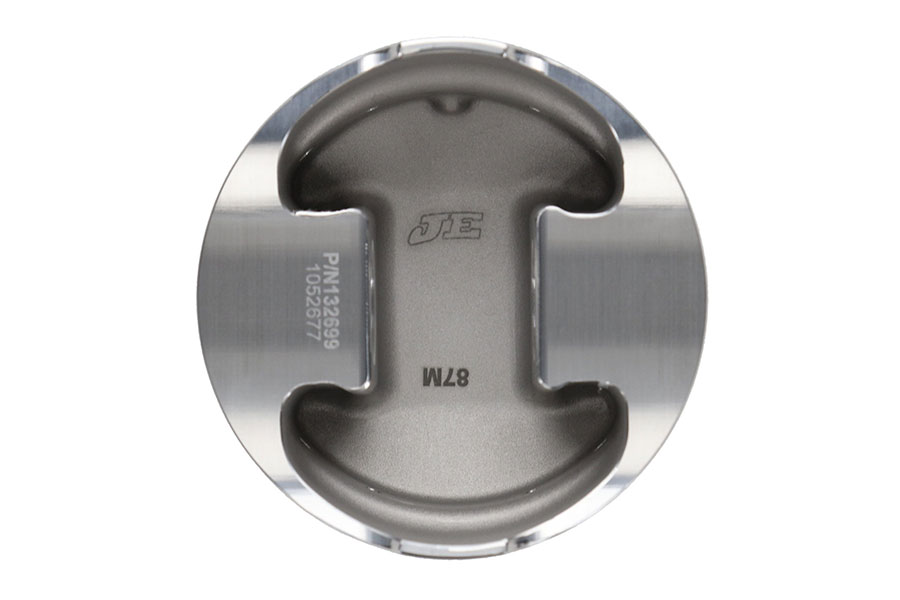

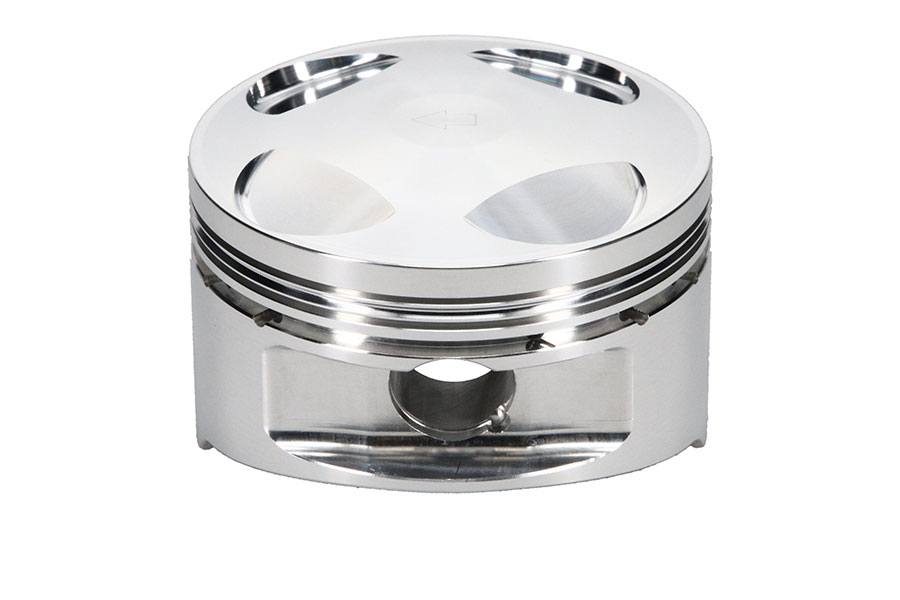

JE Pistons Piston Kit 89.00mm - 247612
Information
Bore Diameter: 89.00mm.
- Manufacturer: JE Pistons
Note: Product images may only represent the class of product and not the specific model.
- Bore Diameter: 89.00mm
- Technical Details
Bore Diameter
89.00
Piston Head Type
Dome
Cylinder Head
EX/XR 400 R
Piston Pin Outside Diameter
0.787
Piston Pin Length
2.250
Piston Pin Material
9310
Ringset Included
Yes
Top Compression Ring Thickness
0.04
Second Compression Ring Thickness
0.048
Oil Ring Thickness
0.111
Piston Material
2618
Forging Type
Round
Piston Avg Weight
273
Compression Ratio - Actual
10.80:1
Pin Wall Thickness
0.140
Matched Vehicles
The following are a match for this product.
| Honda TRX-400EX SportRAX - 2008, 2007, 2006, 2005, 2004, 2003, 2002, 2001, 2000, 1999 |
| Honda TRX-400X - 2014, 2013, 2012 |
| Honda TRX-400X - 2014, 2013, 2012 |
| Honda XR-400R - 2004, 2003, 2002, 2001, 2000, 1999, 1998, 1997, 1996 |
