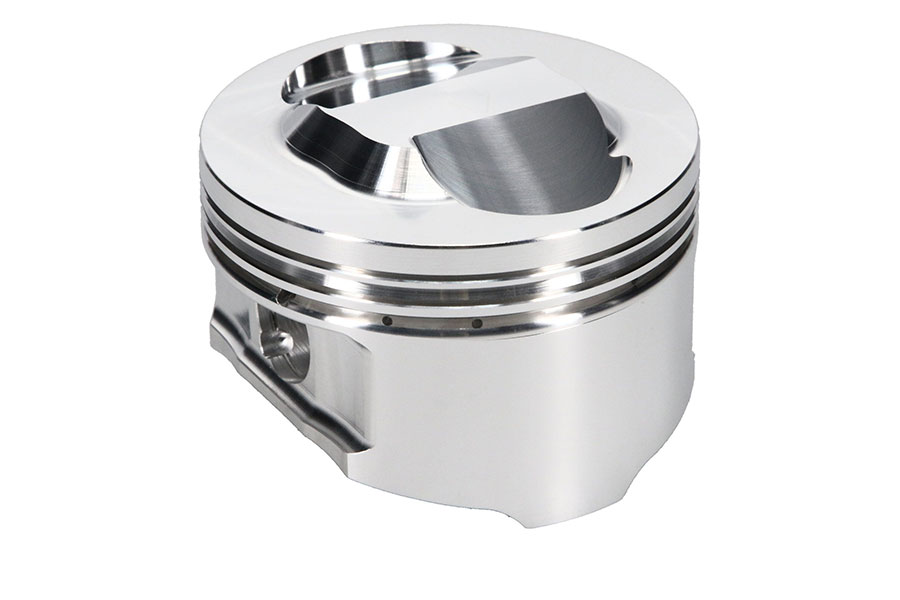

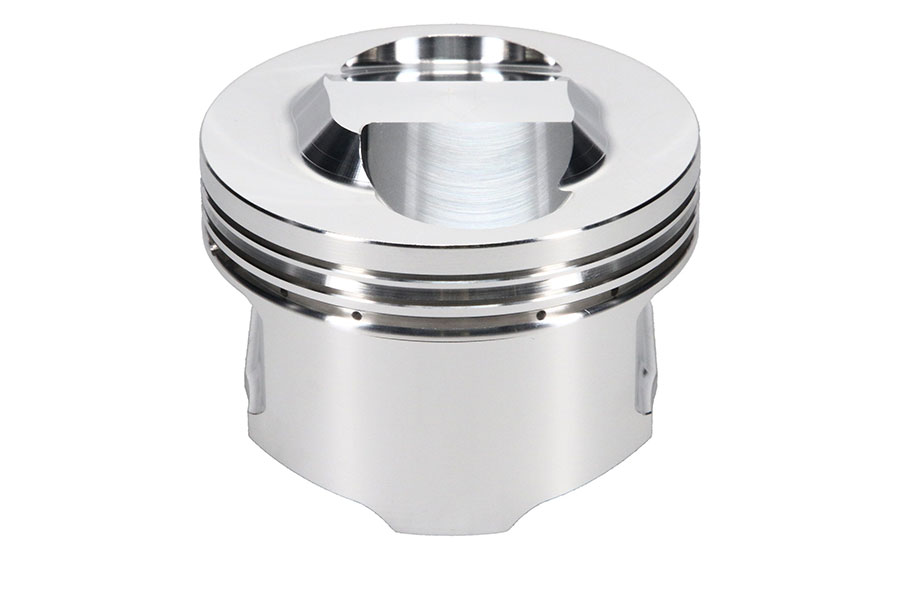

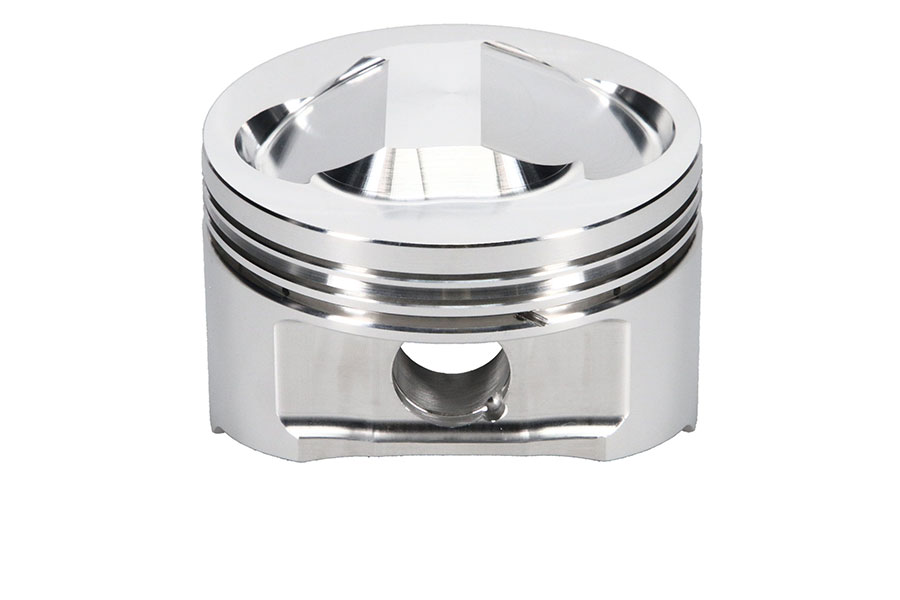

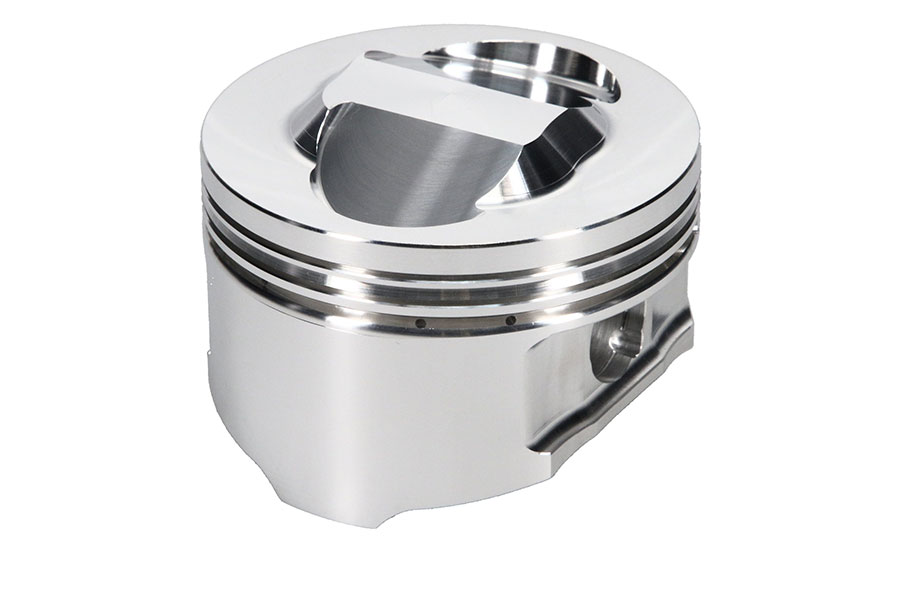

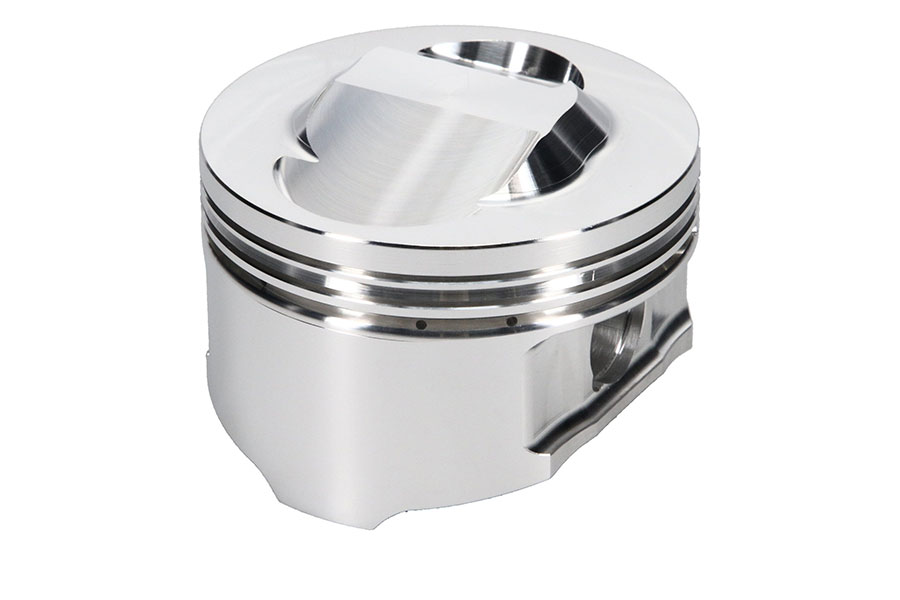

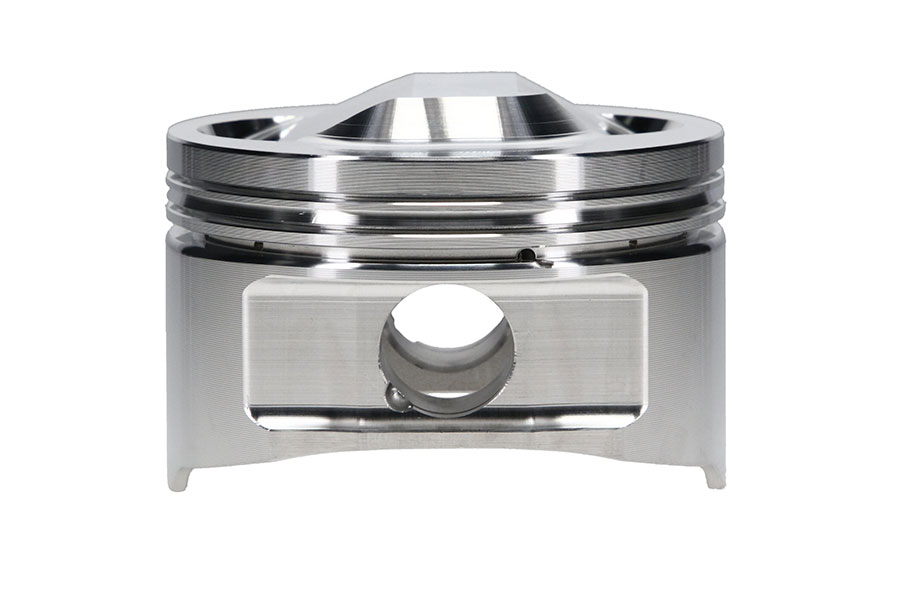

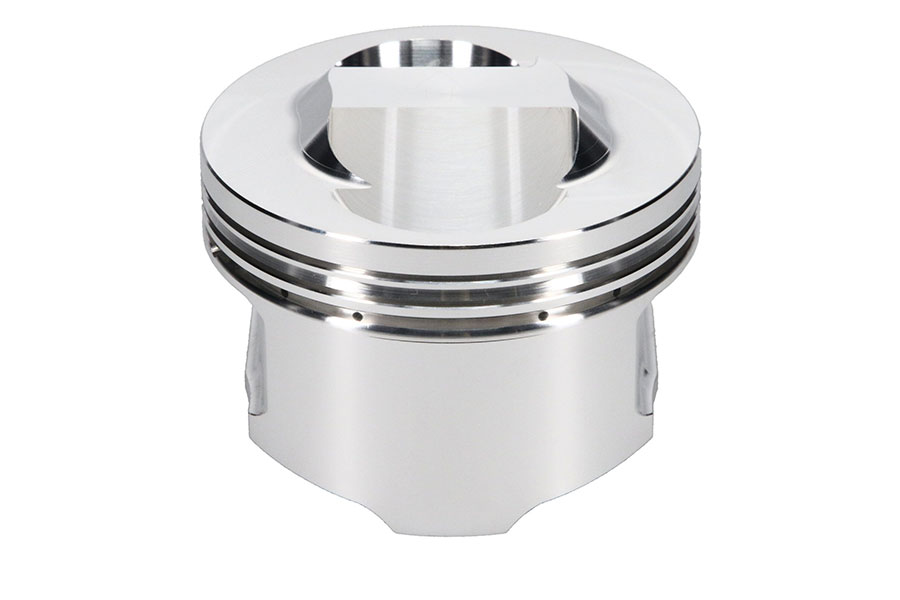

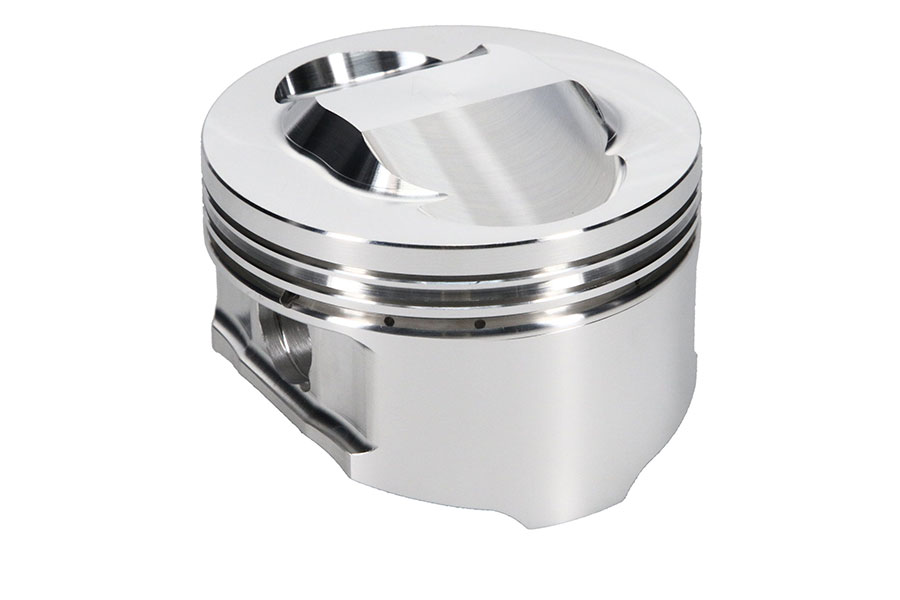

JE Pistons Piston Kit 83.00mm - 209291
Information
Bore Diameter: 83.00mm.
- Manufacturer: JE Pistons

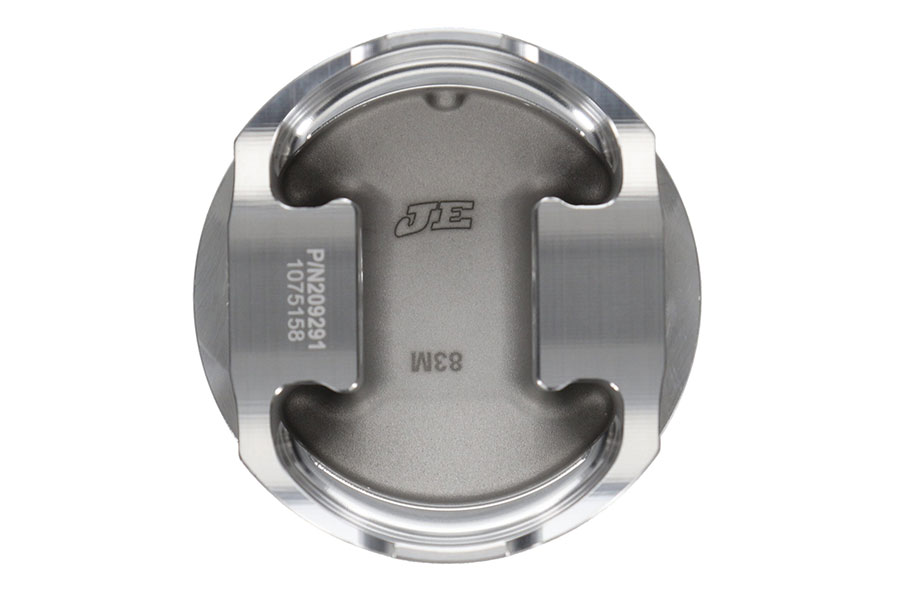

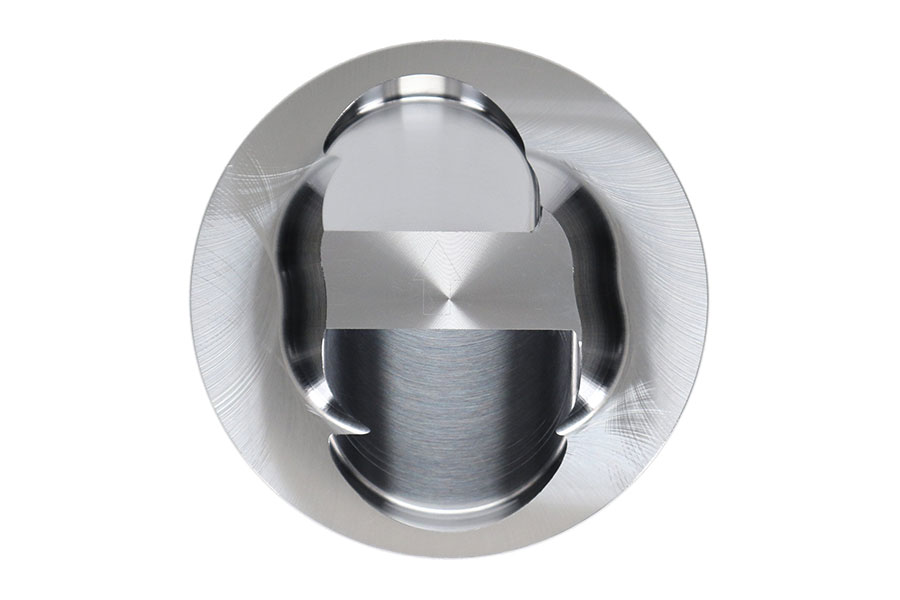

Note: Product images may only represent the class of product and not the specific model.
- Bore Diameter: 83.00mm
- Technical Details
Bore Diameter
83.00
Piston Head Type
Dome
Cylinder Head
2 VALVE
Piston Pin Outside Diameter
0.748
Piston Pin Length
2.250
Piston Pin Material
5115
Ringset Included
Yes
Top Compression Ring Thickness
0.04
Second Compression Ring Thickness
0.04
Oil Ring Thickness
0.08
Piston Material
2618
Forging Type
Round
Piston Avg Weight
272
Compression Ratio - Actual
11.00:1
Pin Wall Thickness
0.120
Matched Vehicles
The following are a match for this product.
| Yamaha YFM350 Grizzly 4X4 AUTO - 2014, 2013, 2012, 2011, 2010, 2009, 2008, 2007 |
| Yamaha YFM350 Grizzly AUTO - 2014, 2013, 2012, 2011, 2010, 2009, 2008, 2007 |
| Yamaha YFM350 Grizzly IRS 4X4 AUTO - 2012, 2011, 2010, 2009, 2008, 2007 |
| Yamaha YFM350 Raptor - 2013, 2012, 2011, 2010, 2009, 2008, 2007, 2006, 2005 |
| Yamaha YFM350X Warrior - 2004, 2003, 2002, 2001, 2000, 1999, 1998, 1997, 1996, 1995, 1994, 1993, 1992, 1991, 1990, 1989, 1988, 1987 |
