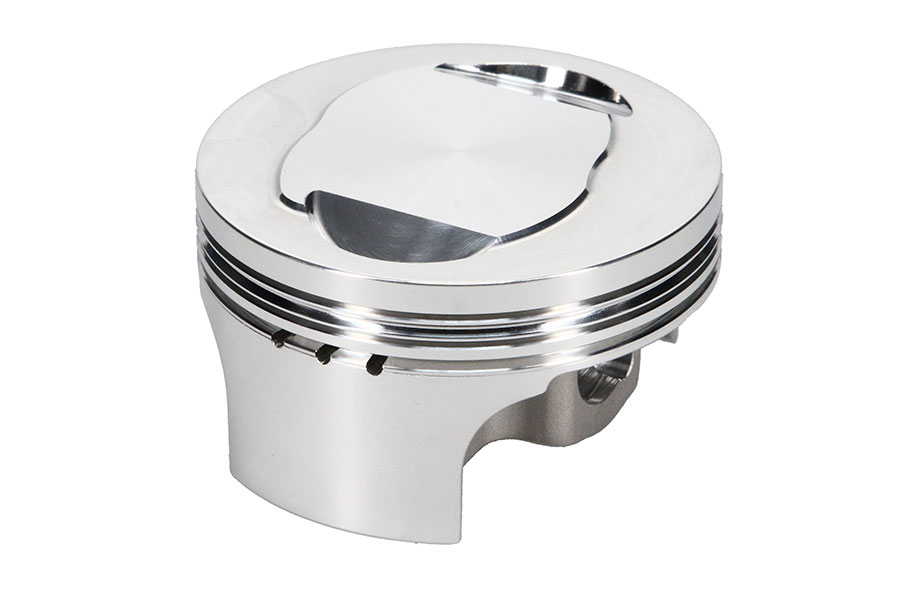

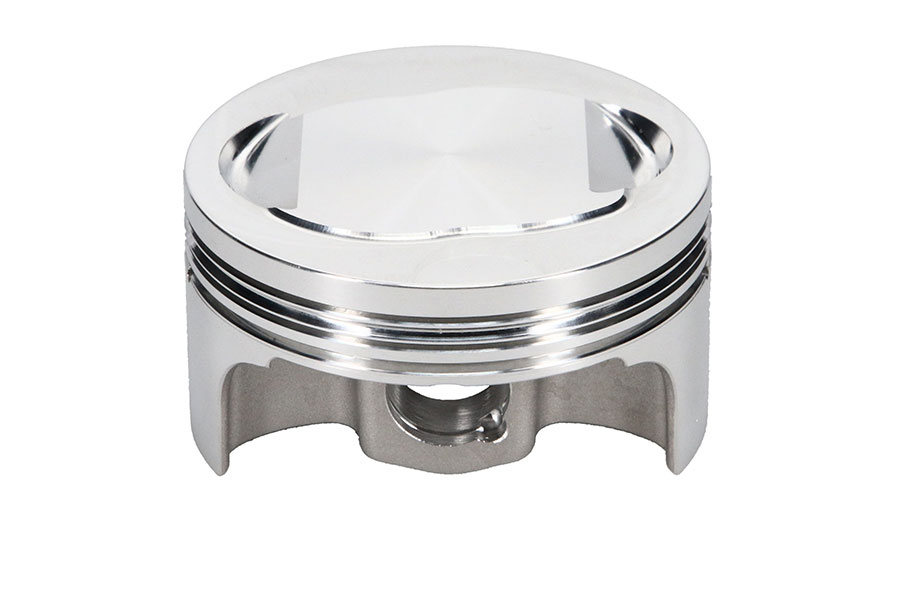

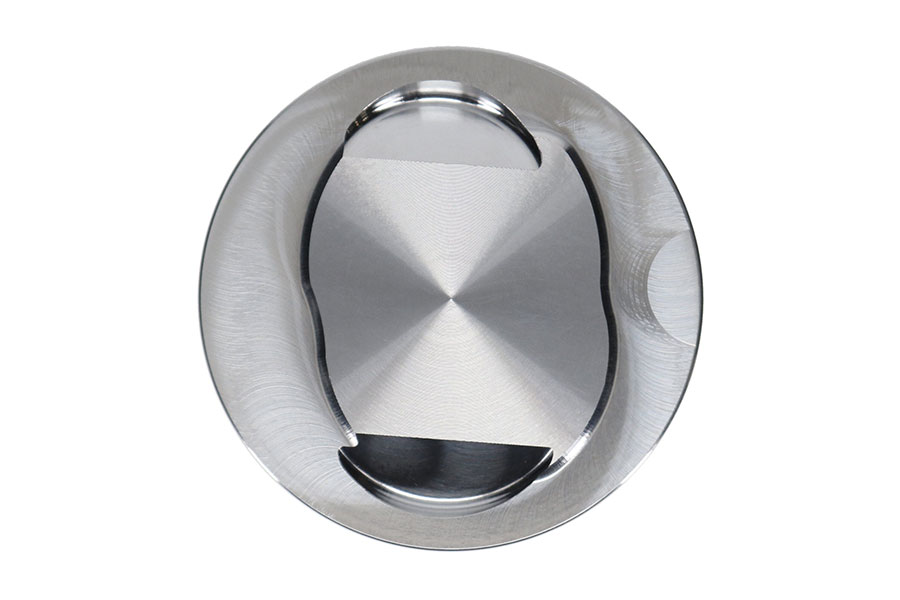

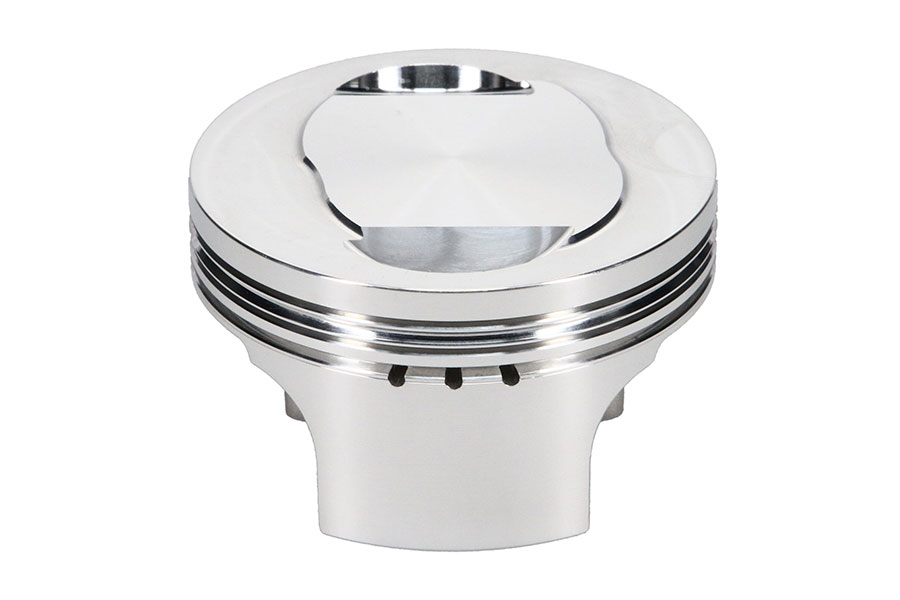

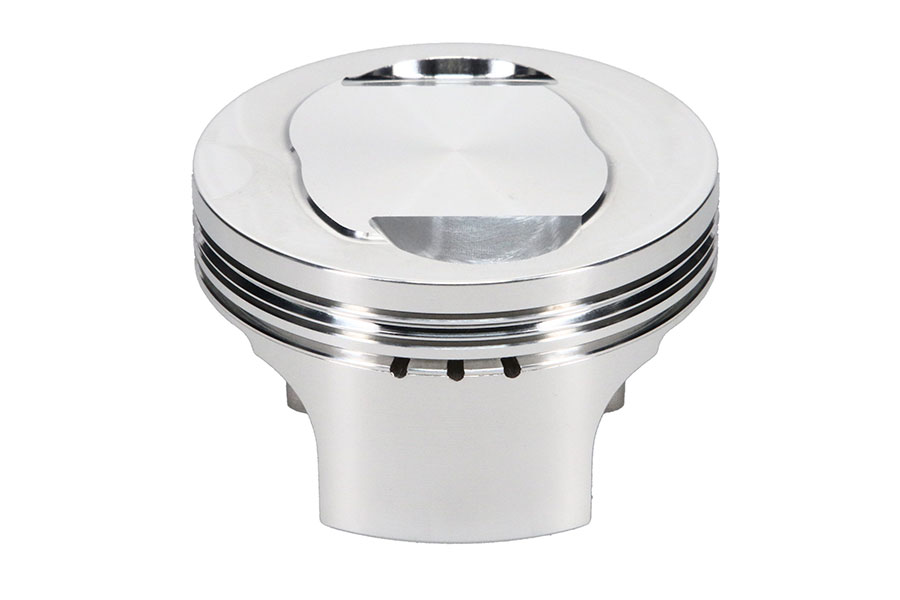

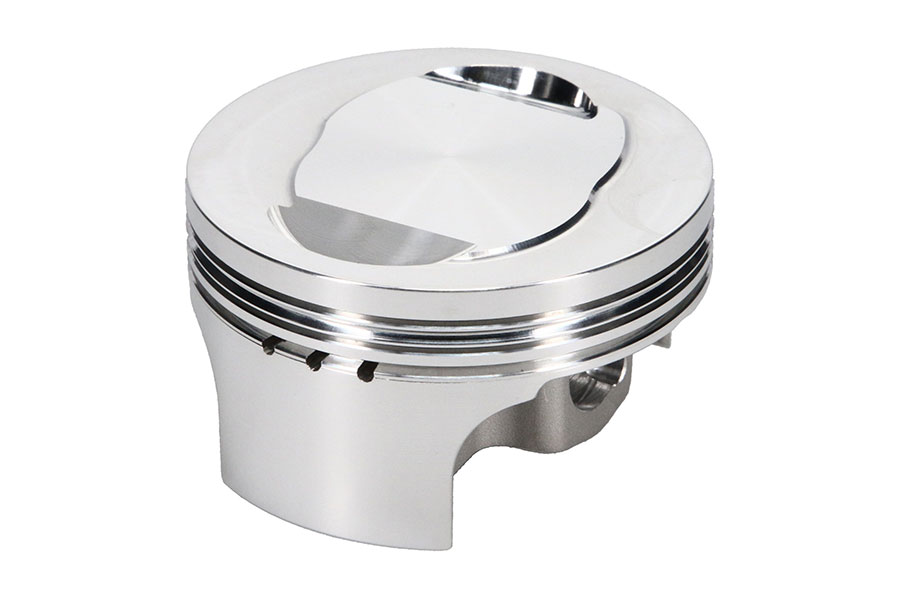

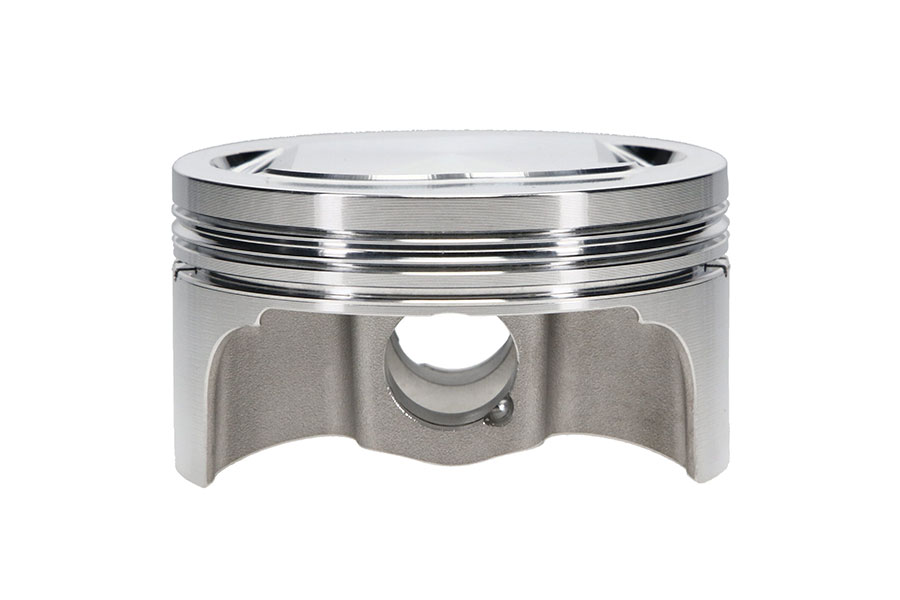

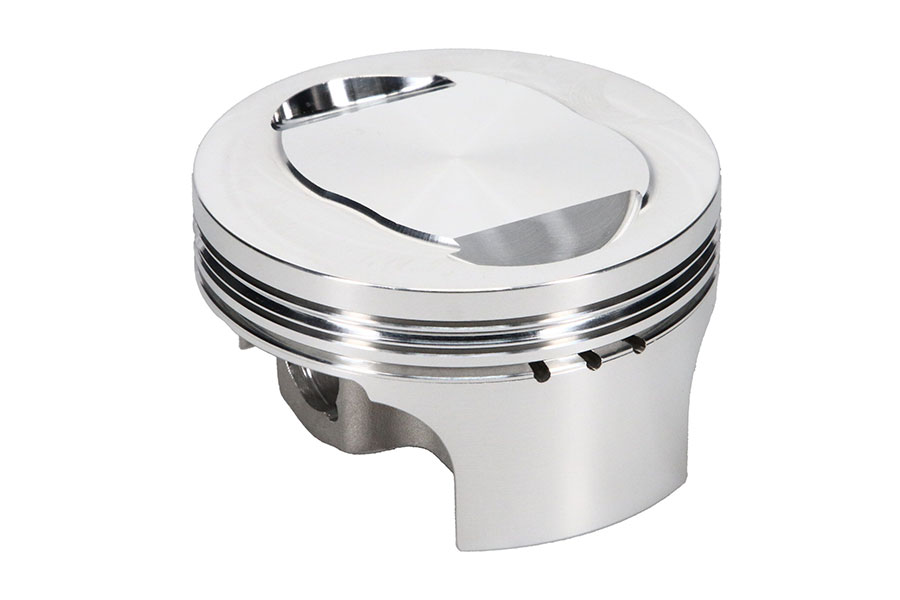

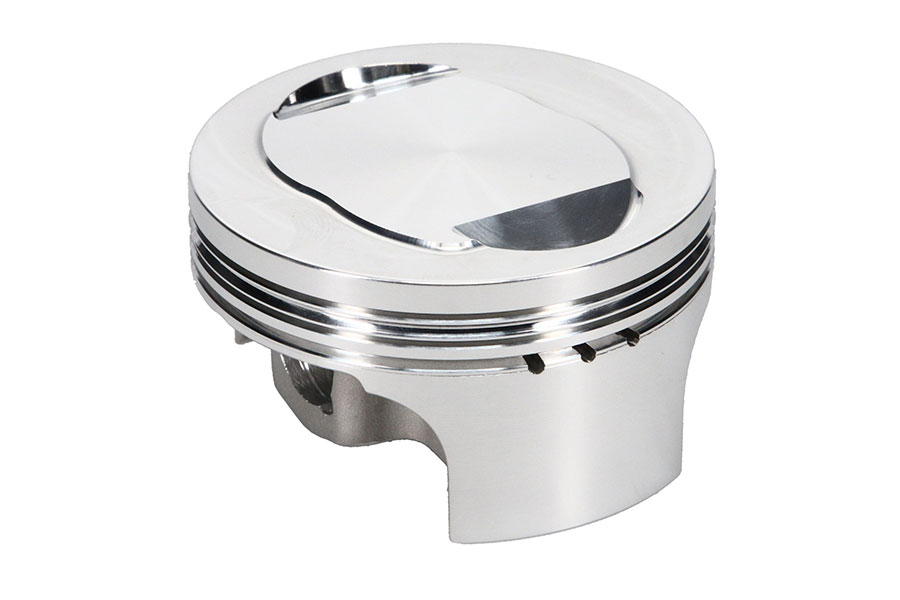

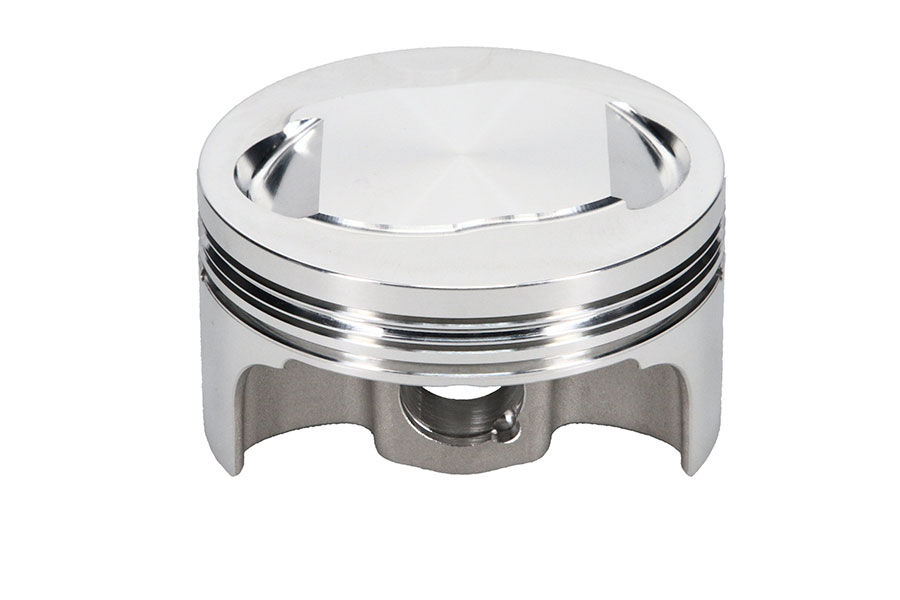

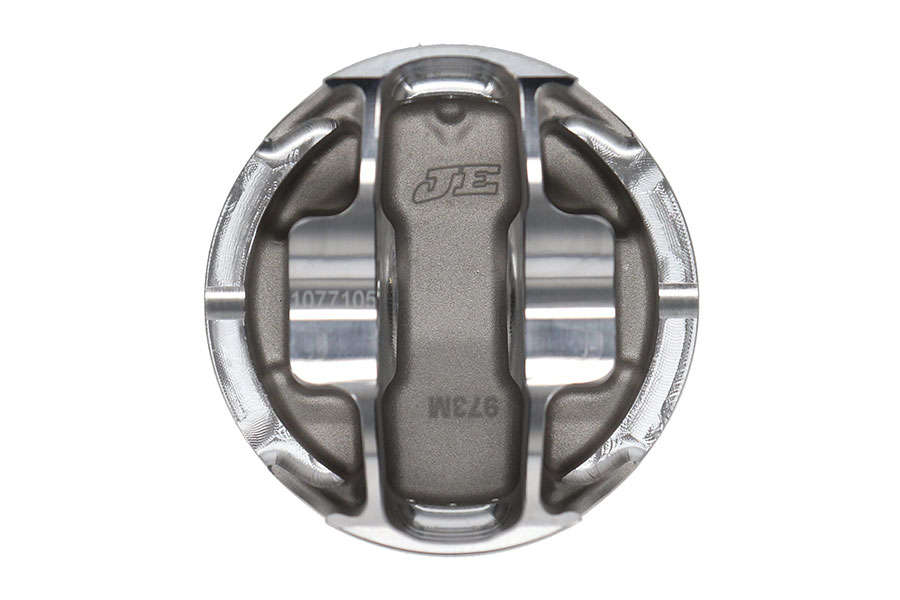

JE Pistons Piston Kit 74.00mm - 274194
Information
Bore Diameter: 74.00mm.
- Manufacturer: JE Pistons
Note: Product images may only represent the class of product and not the specific model.
- Bore Diameter: 74.00mm
- Technical Details
Bore Diameter
74.00
Piston Head Type
Dome
Piston Volume
0.85
Cylinder Head
RAPTOR
Piston Pin Outside Diameter
0.669
Piston Pin Length
1.650
Ringset Included
Yes
Top Compression Ring Thickness
0.032
Second Compression Ring Thickness
0.032
Oil Ring Thickness
0.0585
Piston Material
2618
Forging Type
FSR
Piston Avg Weight
184
Compression Ratio - Actual
10.50:1
Pin Wall Thickness
0.140
Matched Vehicles
The following are a match for this product.
| Yamaha YFM250 Raptor - 2013, 2012, 2011, 2010, 2009, 2008 |
| Yamaha YFM250 Raptor SE - 2008 |
| Yamaha YFM250 Raptor SE Custom - 2008 |
| Yamaha YFM250R Raptor - 2011 |
