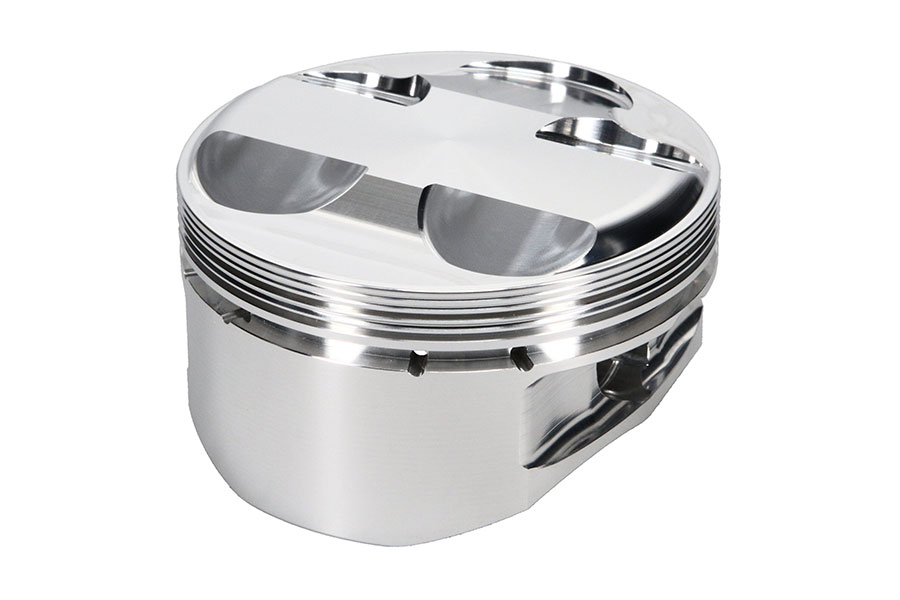

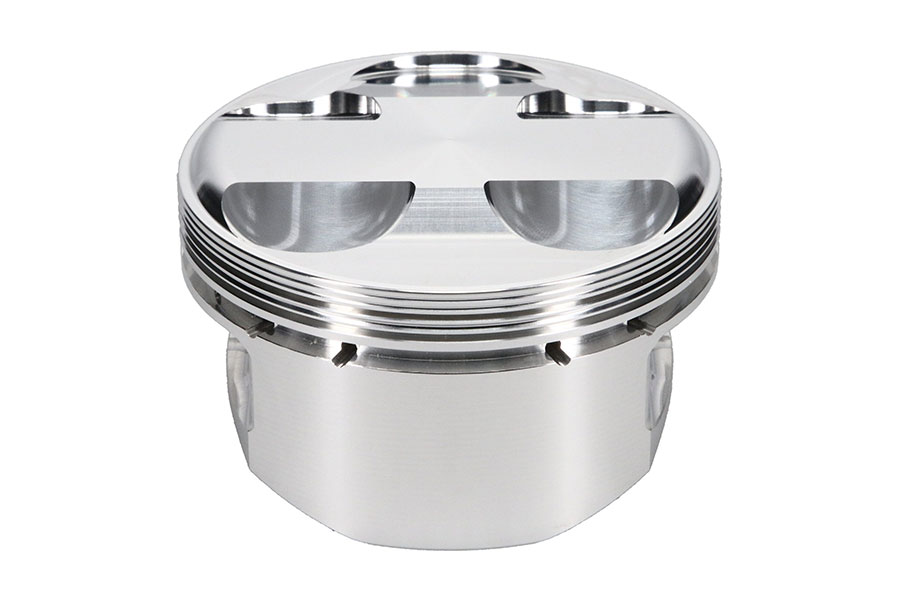

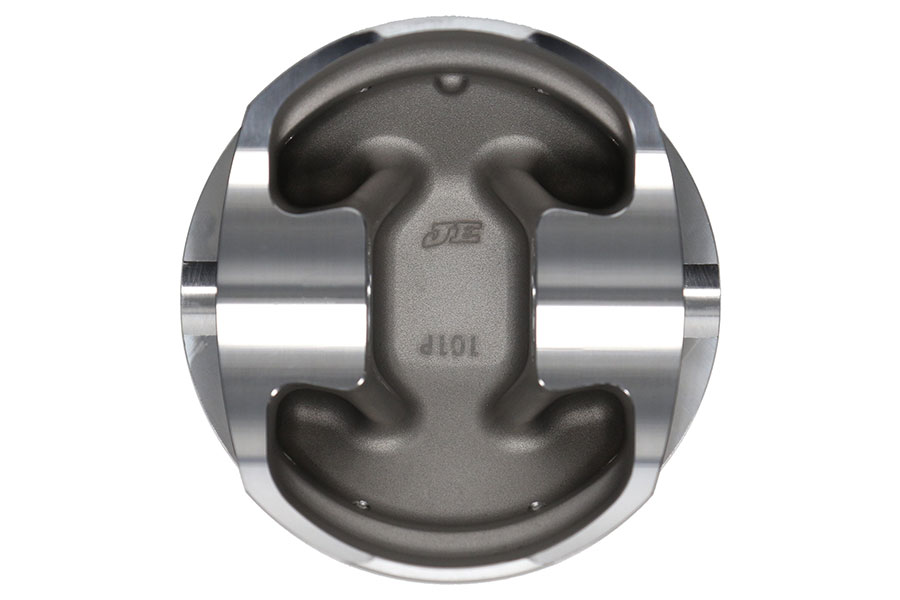

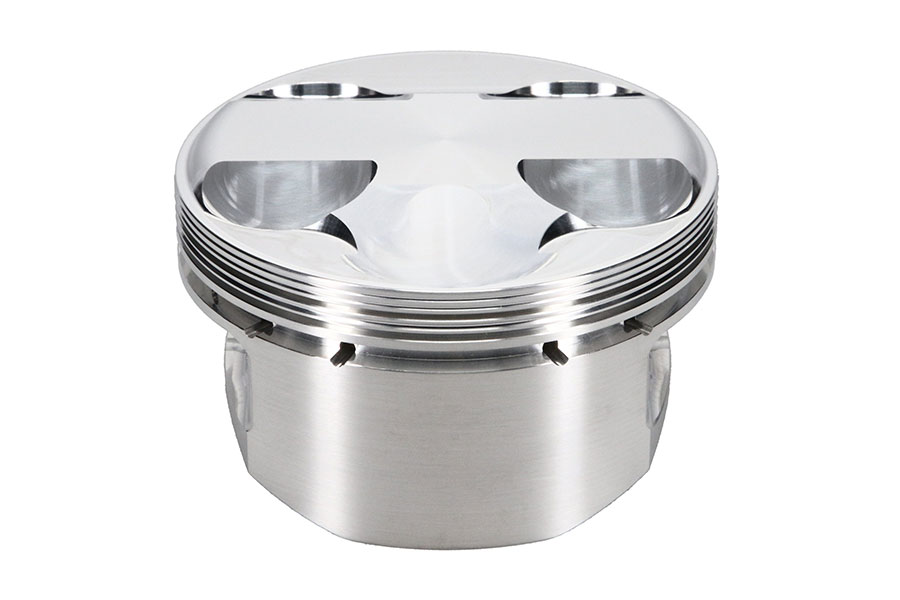

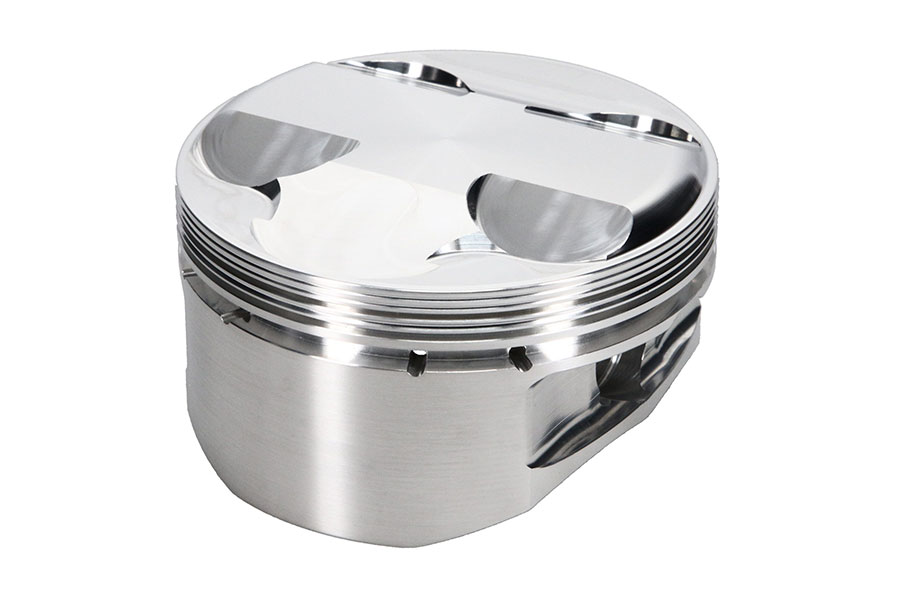

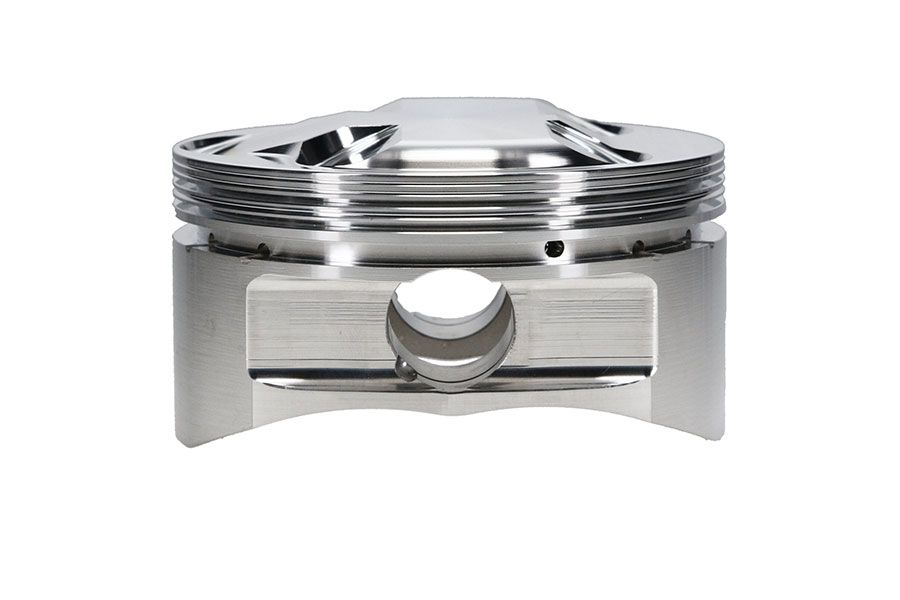

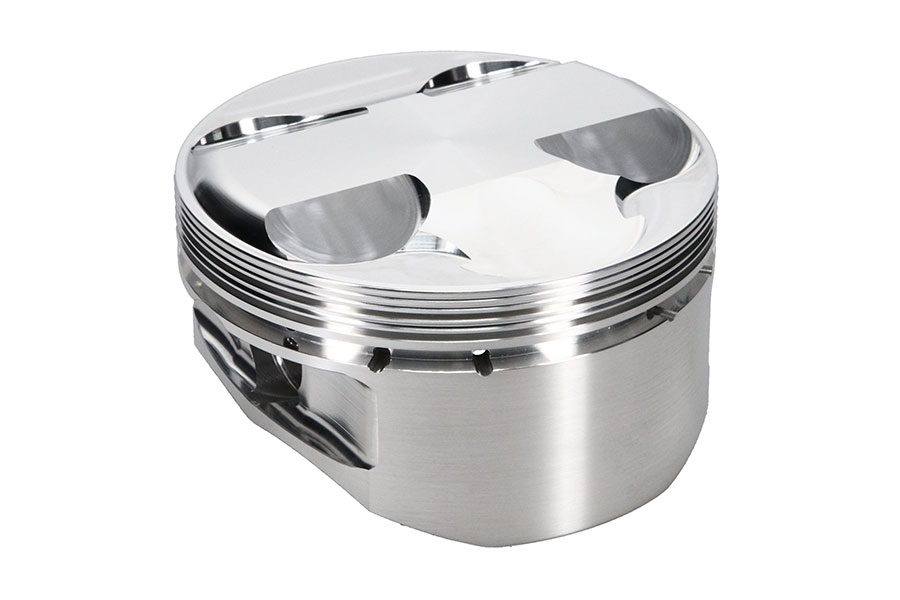

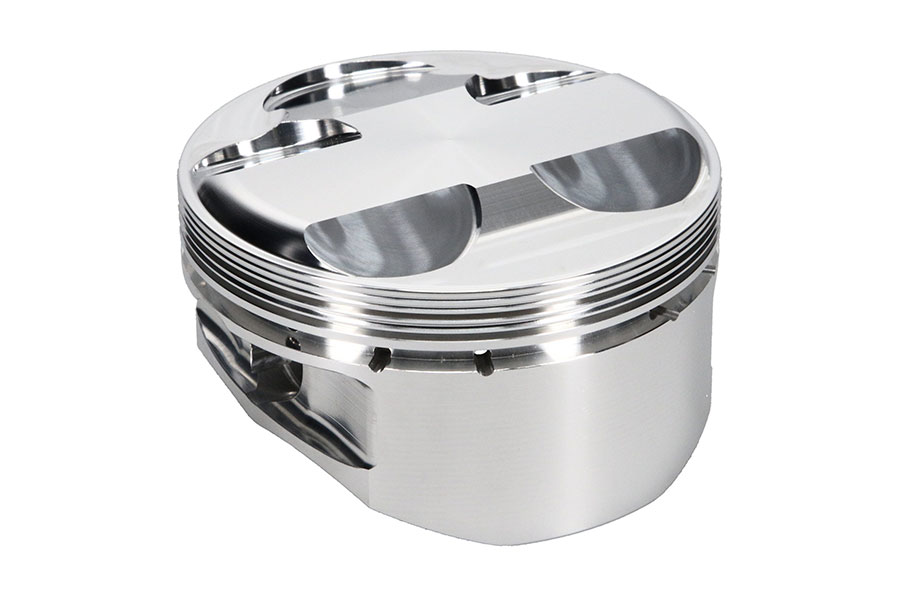

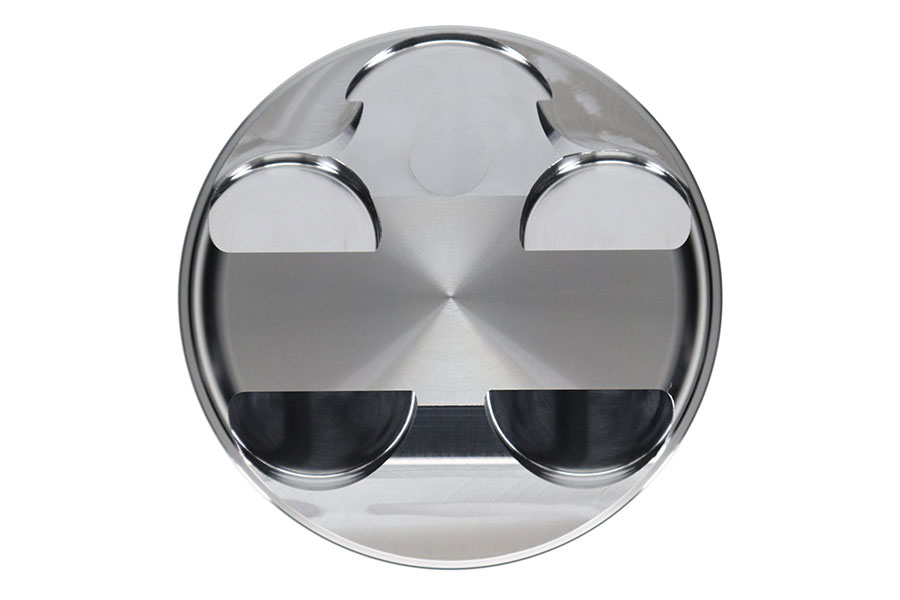

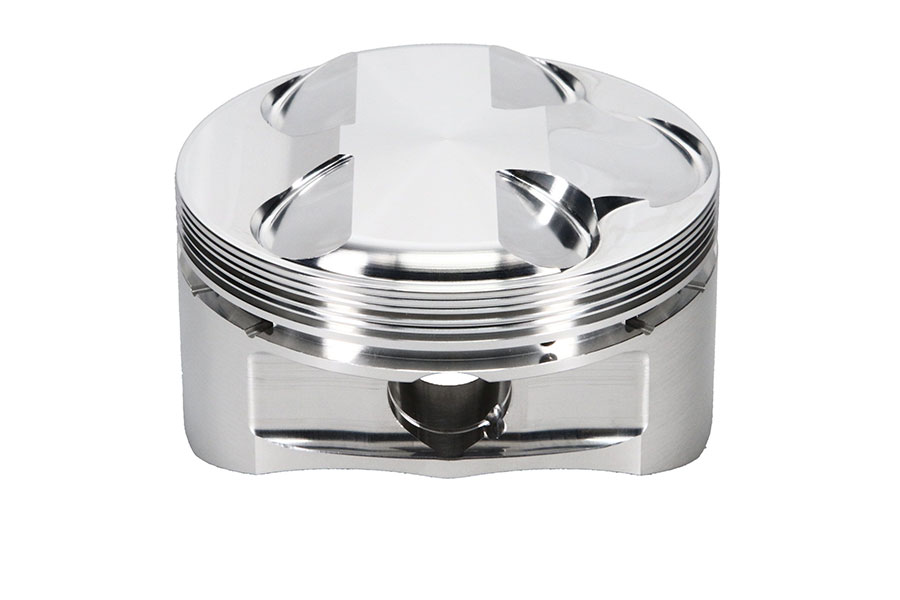

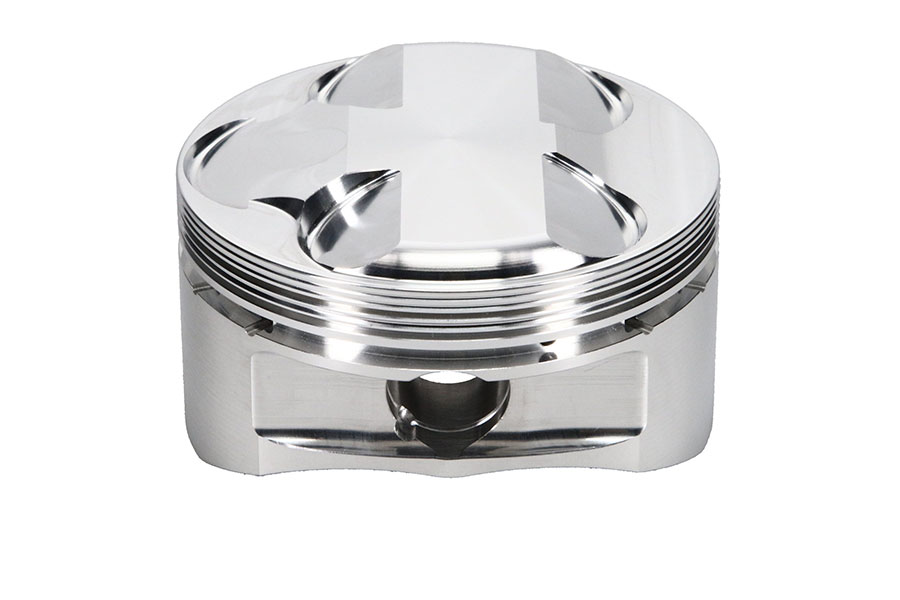

JE Pistons Piston Kit 105.00mm - 314758
Information
Bore Diameter: 105.00mm.
- Manufacturer: JE Pistons
Note: Product images may only represent the class of product and not the specific model.
- Bore Diameter: 105.00mm
- Technical Details
Bore Diameter
105.00
Piston Head Type
Dome
Piston Volume
18.3
Cylinder Head
5V 600
Piston Pin Outside Diameter
0.866
Piston Pin Length
2.850
Piston Pin Material
5115
Ringset Included
Yes
Top Compression Ring Thickness
0.048
Second Compression Ring Thickness
0.06
Oil Ring Thickness
0.119
Piston Material
2618
Forging Type
Round
Piston Avg Weight
454
Compression Ratio - Actual
12.00:1
Pin Wall Thickness
0.150
Matched Vehicles
The following are a match for this product.
| Yamaha YFM660F Grizzly 4X4 - 2008, 2007, 2006, 2005, 2004, 2003, 2002 |
| Yamaha YFM660R Raptor - 2005, 2004, 2003, 2002, 2001 |
| Yamaha YXR66F Rhino 660 - 2007, 2006 |
| Yamaha YXR66F Rhino 660 Ducks UNLIMITED - 2007 |
| Yamaha YXR66F Rhino 660 Exploring Edition - 2007, 2006 |
| Yamaha YXR66F Rhino 660 Special Edition - 2007, 2006 |
| Yamaha YXR66F Rhino 660 Sport Edition - 2007 |
