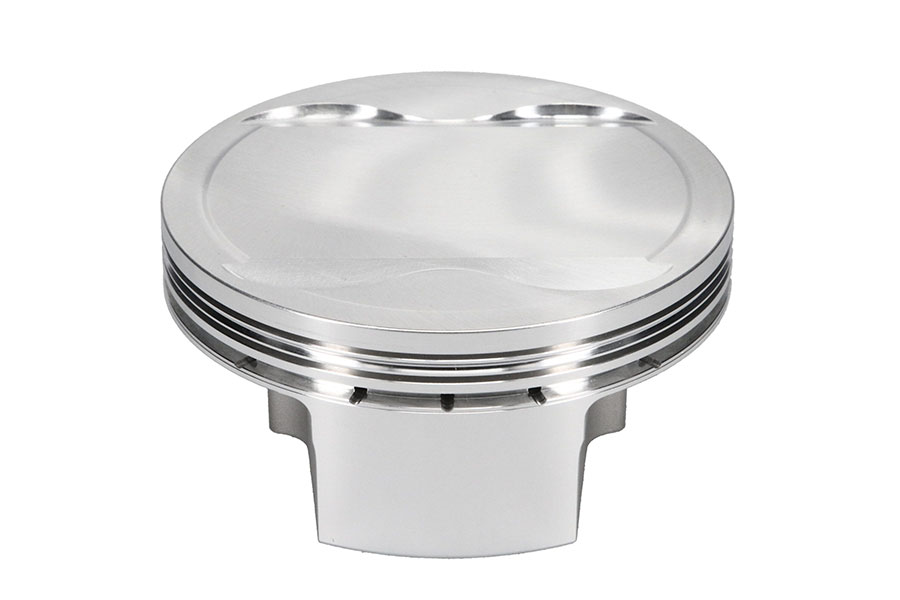

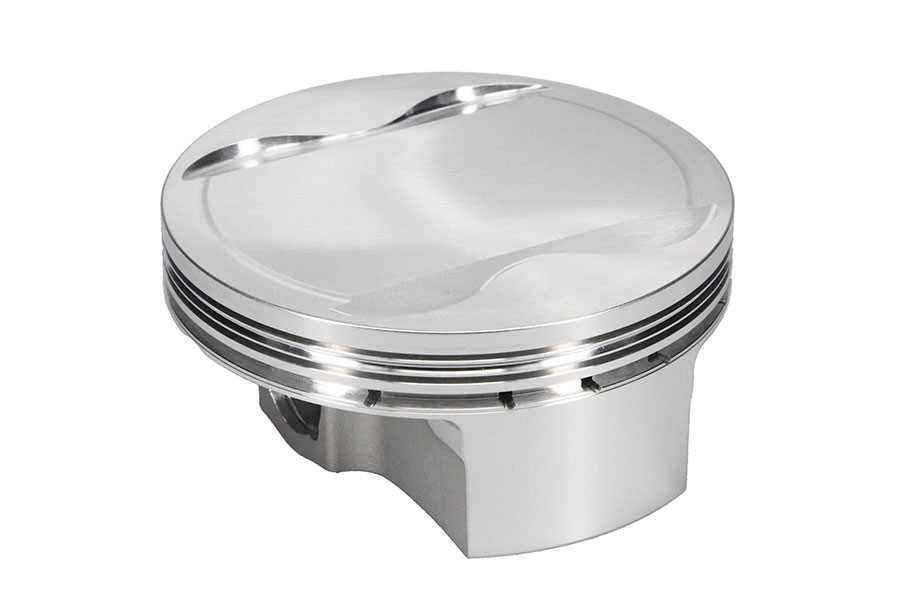

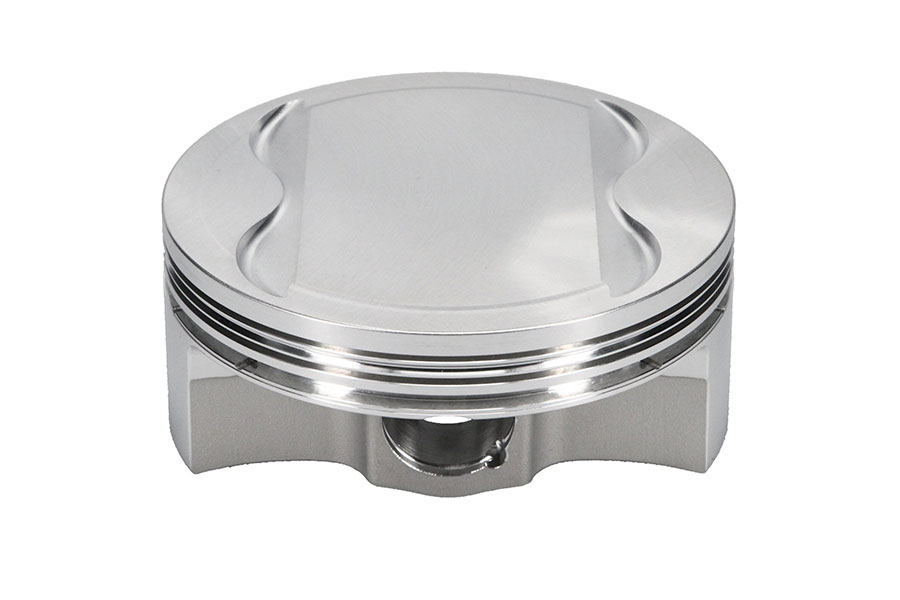

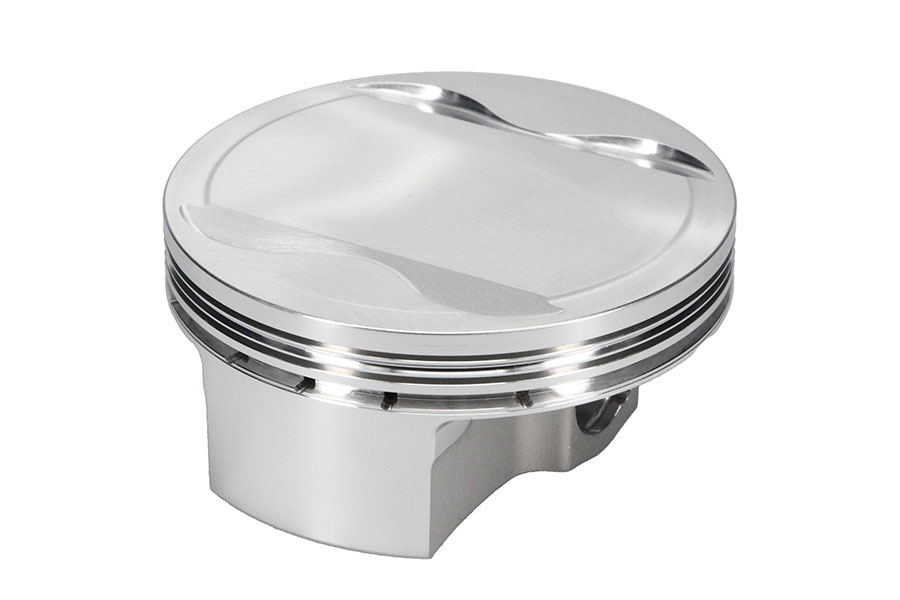

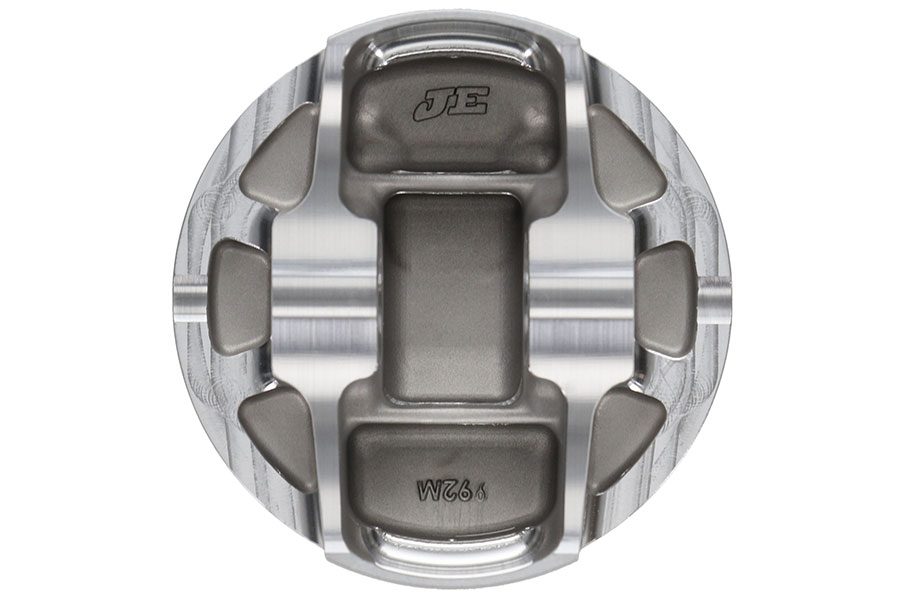

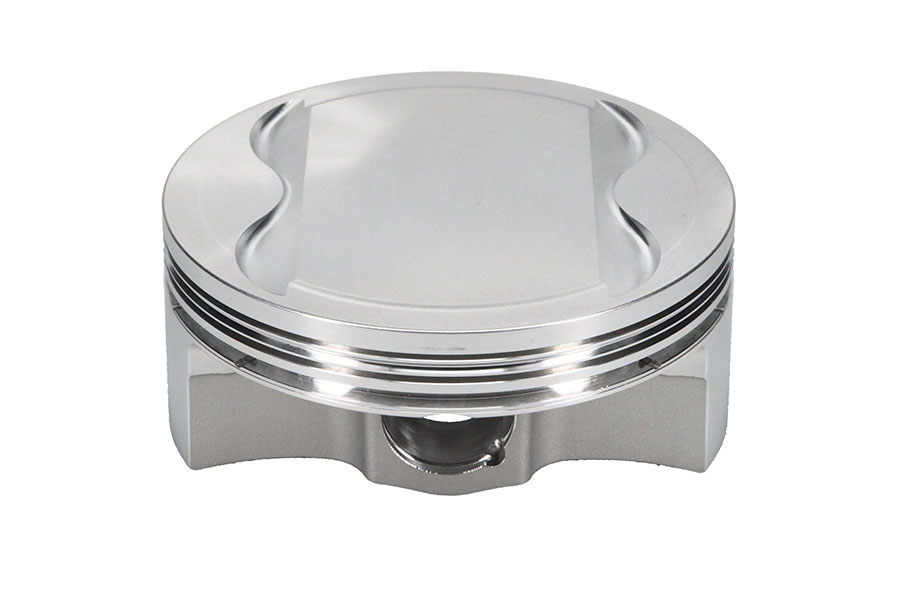

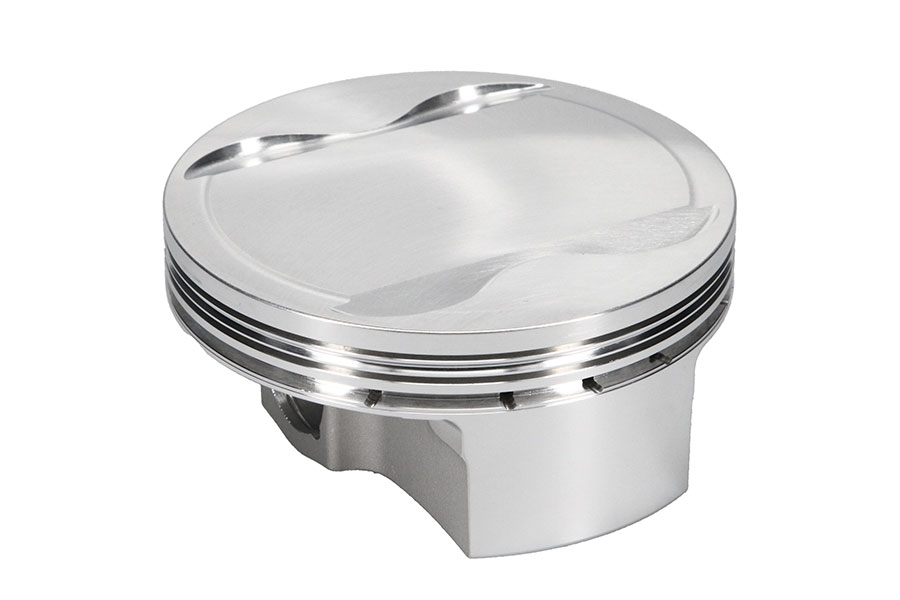

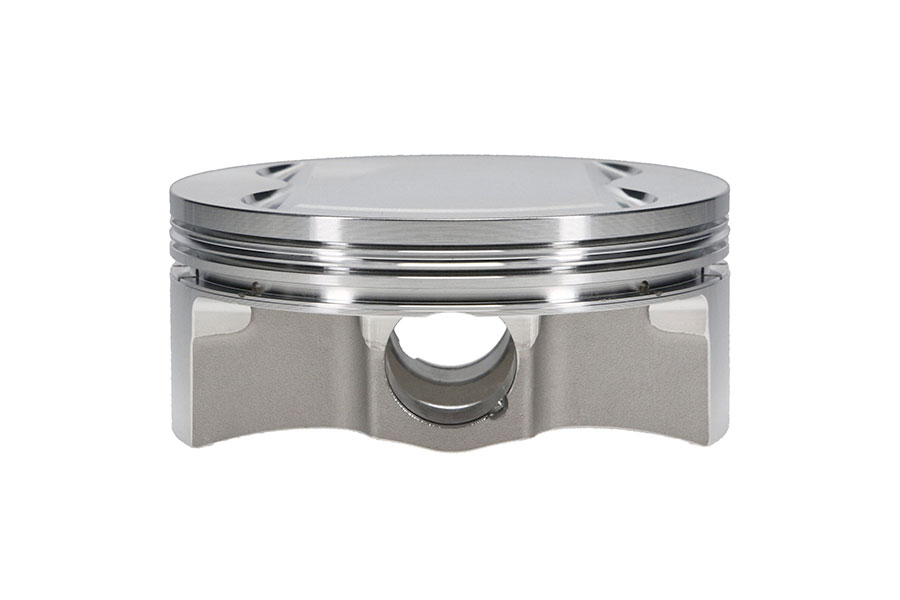

JE Pistons Piston Kit 102.00mm - 324102
Information
Bore Diameter: 102.00mm.
- Manufacturer: JE Pistons

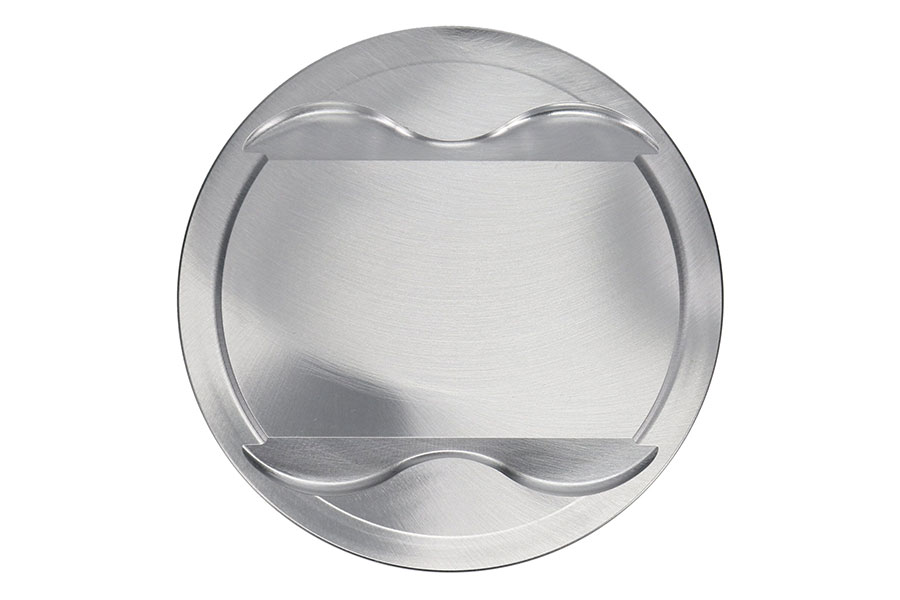

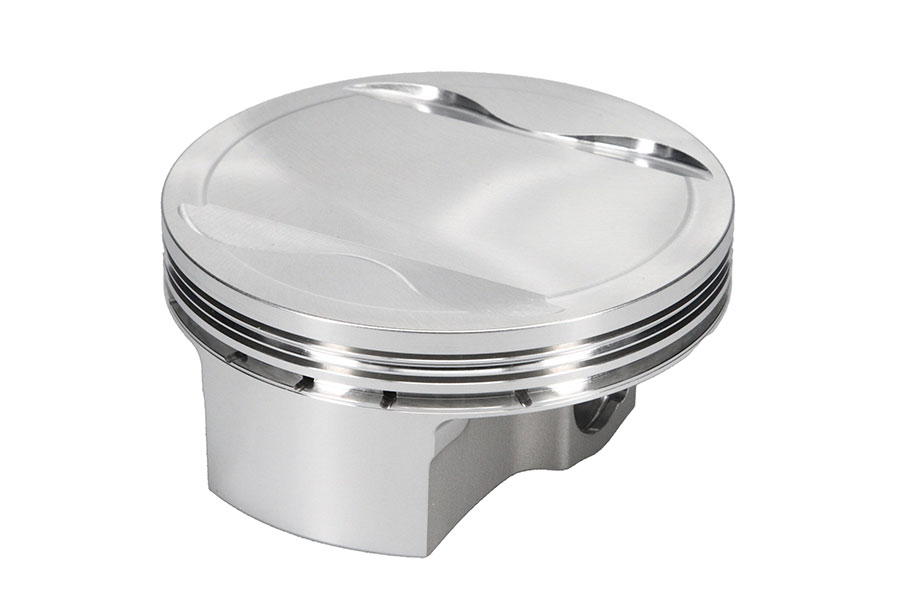

Note: Product images may only represent the class of product and not the specific model.
- Bore Diameter: 102.00mm
- Technical Details
Bore Diameter
102.00
Piston Head Type
Dome
Piston Volume
8.4
Cylinder Head
BMW 4 VALVE
Piston Pin Outside Diameter
0.905
Piston Pin Length
2.250
Ringset Included
Yes
Top Compression Ring Thickness
0.04
Second Compression Ring Thickness
0.048
Oil Ring Thickness
0.111
Piston Material
2618
Forging Type
FSR
Piston Avg Weight
383
Compression Ratio - Actual
11.00:1
Pin Wall Thickness
0.150
Matched Vehicles
The following are a match for this product.
| Yamaha YFM700 Grizzly EPS - 2020, 2019 |
| Yamaha YFM700 Grizzly EPS SE - 2020, 2019 |
| Yamaha YFM700 Grizzly EPS XT-R - 2020 |
| Yamaha YFM700 Grizzly FI 4X4 AUTO - 2015, 2014 |
| Yamaha YFM700 Grizzly FI 4X4 AUTO EPS - 2015, 2014 |
| Yamaha YFM700 Grizzly FI 4X4 AUTO EPS SE - 2015, 2014 |
| Yamaha YFM700 Raptor - 2017, 2016, 2015 |
| Yamaha YFM700K Kodiak - 2020, 2019 |
| Yamaha YFM700K Kodiak EPS - 2020, 2019 |
| Yamaha YFM700K Kodiak EPS SE - 2020, 2019 |
| Yamaha YFM700R Raptor - 2017, 2016, 2015 |
| Yamaha YXM700 Viking EPS Ranch Edition - 2020, 2019, 2018 |
| Yamaha YXM700 Viking EPS SE - 2019 |
| Yamaha YXM700 Viking EPS with Suntop - 2020, 2019, 2018 |
| Yamaha YXM700 Viking FI 4X4 - 2015, 2014 |
| Yamaha YXM700 Viking FI 4X4 EPS - 2015, 2014 |
| Yamaha YXM700 Viking FI 4X4 EPS SE - 2017, 2016, 2015, 2014 |
| Yamaha YXM700 Viking FI 4X4 EPS with Suntop - 2017, 2016, 2015, 2014 |
| Yamaha YXM700 Viking FI 4X4 with Suntop - 2017, 2016, 2015, 2014 |
| Yamaha YXM700 Viking VI - 2017, 2016, 2015 |
| Yamaha YXM700 Viking VI EPS - 2019, 2018, 2017, 2016, 2015 |
| Yamaha YXM700 Viking VI EPS Ranch Edition - 2019, 2018, 2017, 2016 |
| Yamaha YXM700 Viking VI EPS SE - 2017, 2016, 2015 |
| Yamaha YXM700 Viking with Suntop - 2020, 2019, 2018 |
