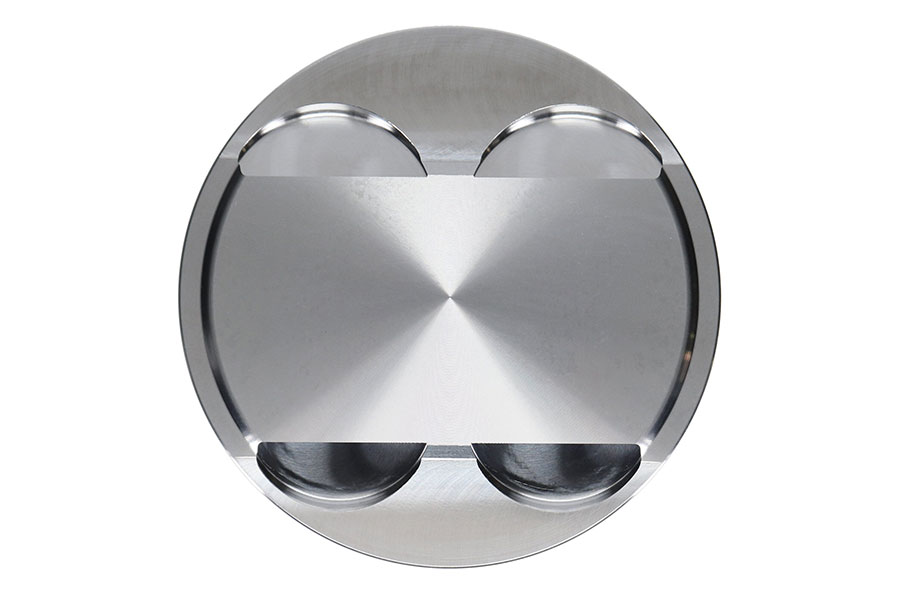

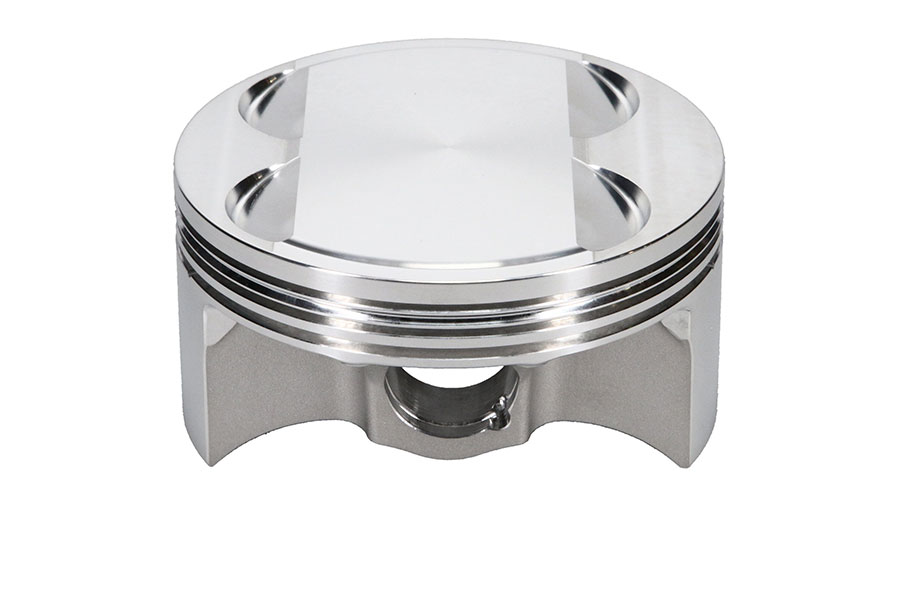

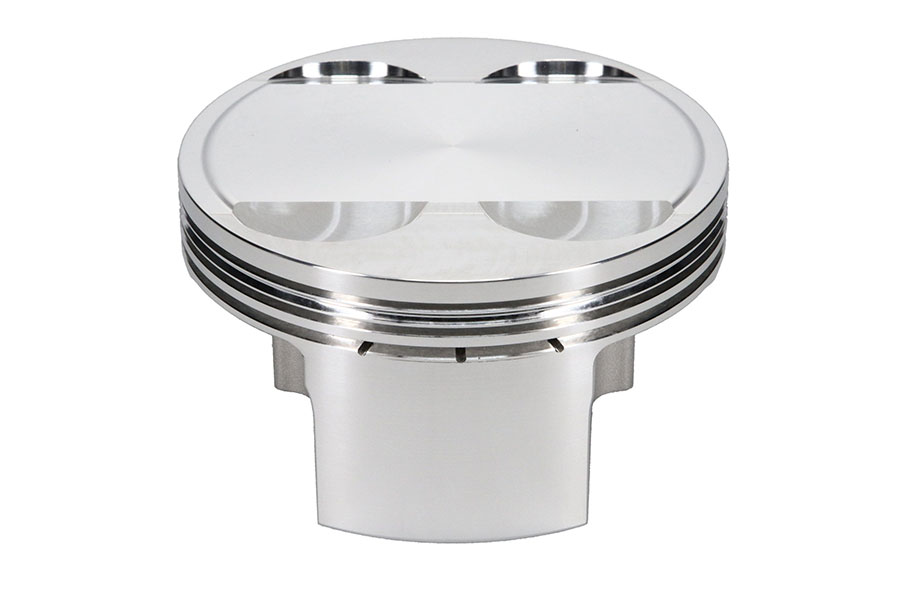

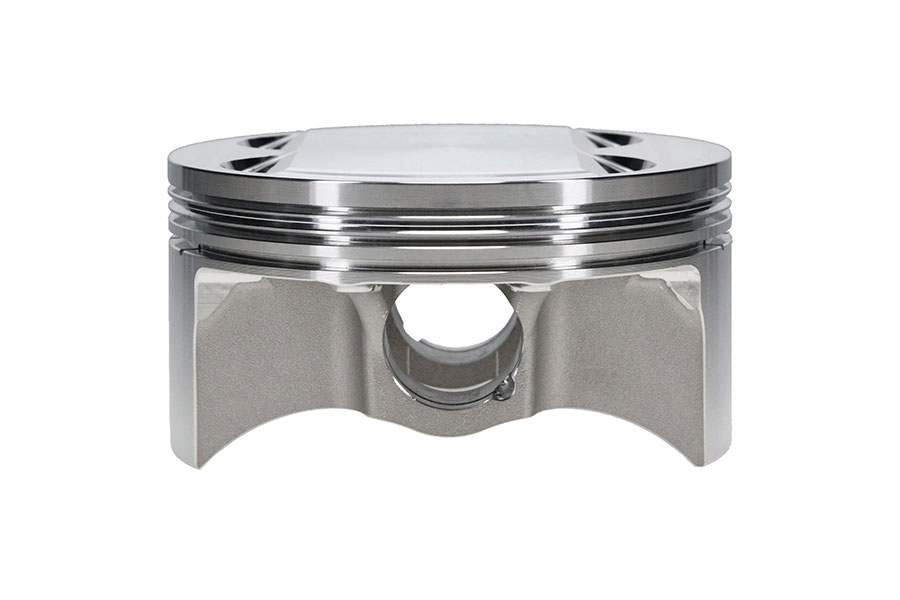

JE Pistons Piston Kit 102.00mm - 308417
Information
Bore Diameter: 102.00mm.
- Manufacturer: JE Pistons
Note: Product images may only represent the class of product and not the specific model.
- Bore Diameter: 102.00mm
- Technical Details
Bore Diameter
102.00
Piston Head Type
Dome
Piston Volume
8.4
Cylinder Head
4-VALVE
Piston Pin Outside Diameter
0.945
Piston Pin Length
2.250
Piston Pin Material
5115
Ringset Included
Yes
Top Compression Ring Thickness
0.048
Second Compression Ring Thickness
0.06
Oil Ring Thickness
0.0795
Piston Material
2618
Forging Type
FSR
Piston Avg Weight
384
Compression Ratio - Actual
12.00:1
Pin Wall Thickness
0.150
Matched Vehicles
The following are a match for this product.
| Honda TRX-700XX - 2009, 2008 |
