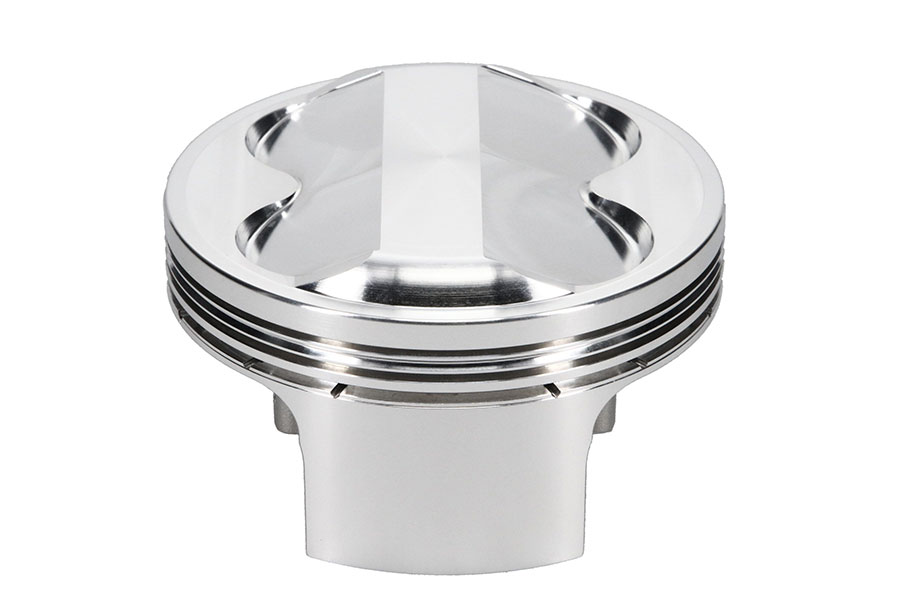

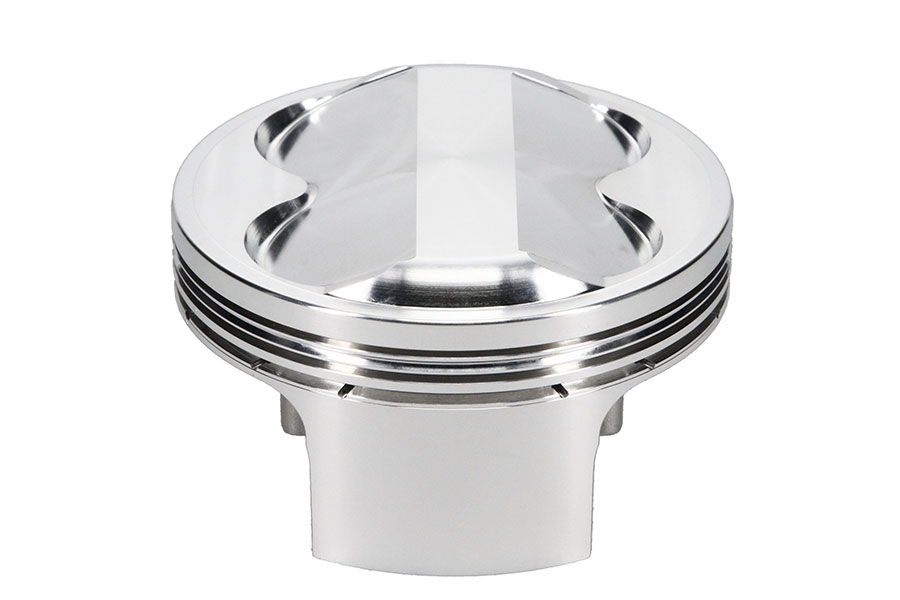

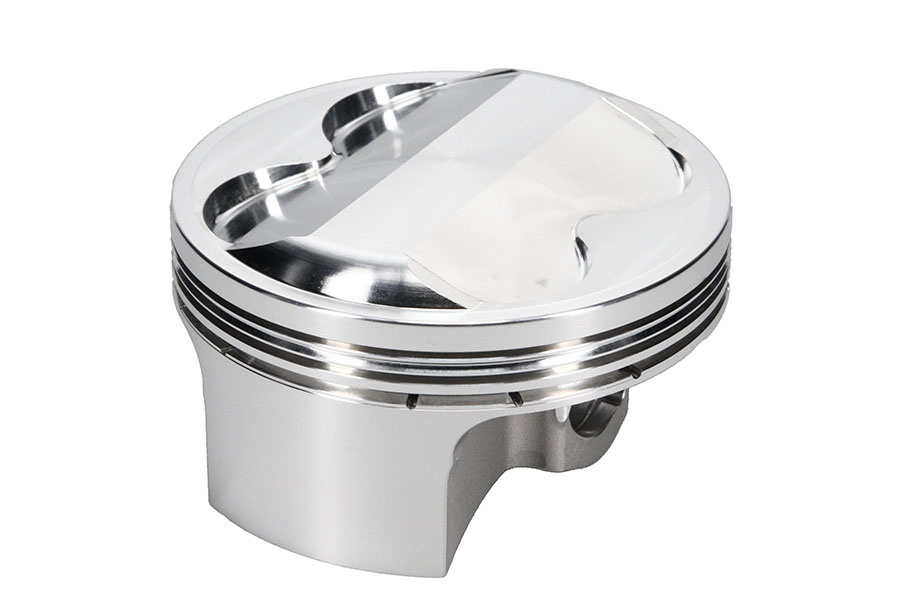

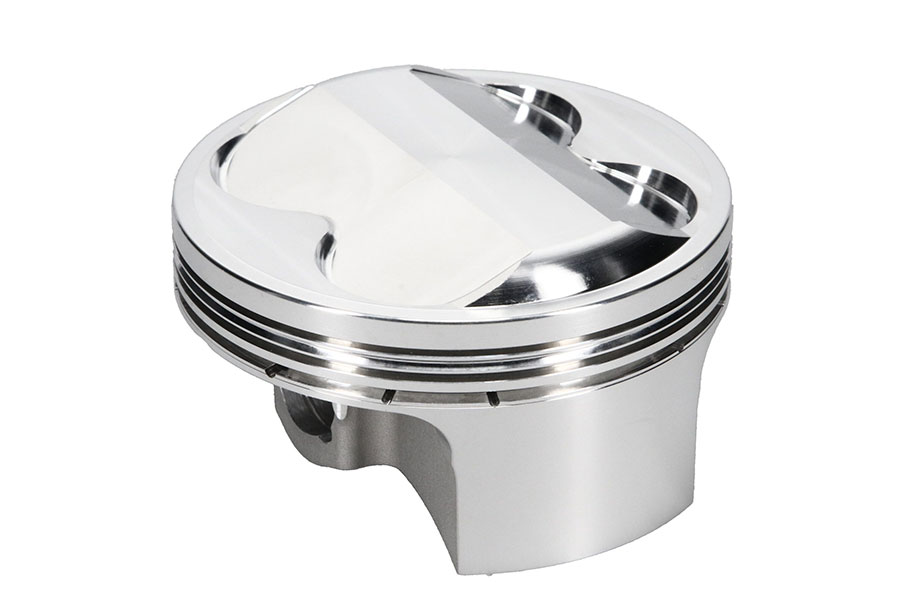

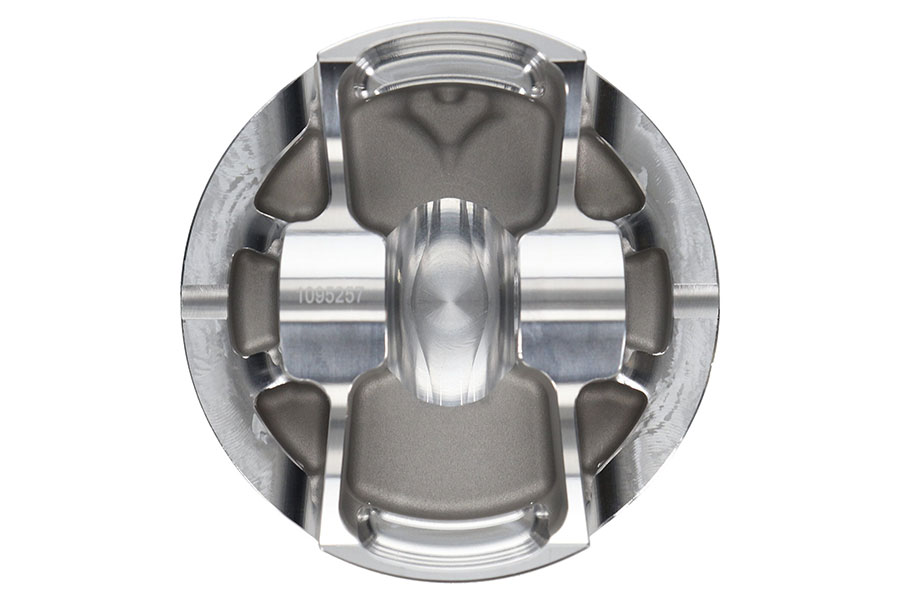

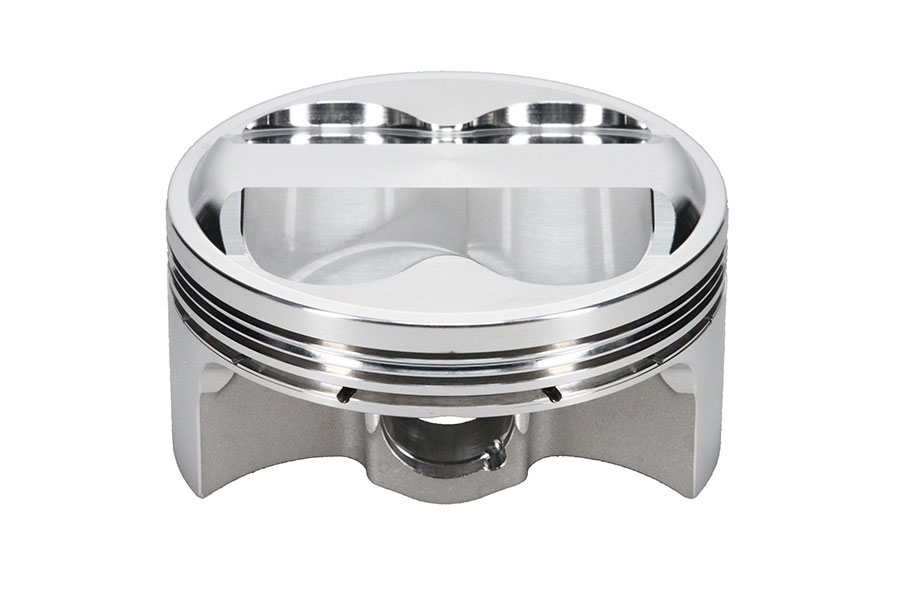

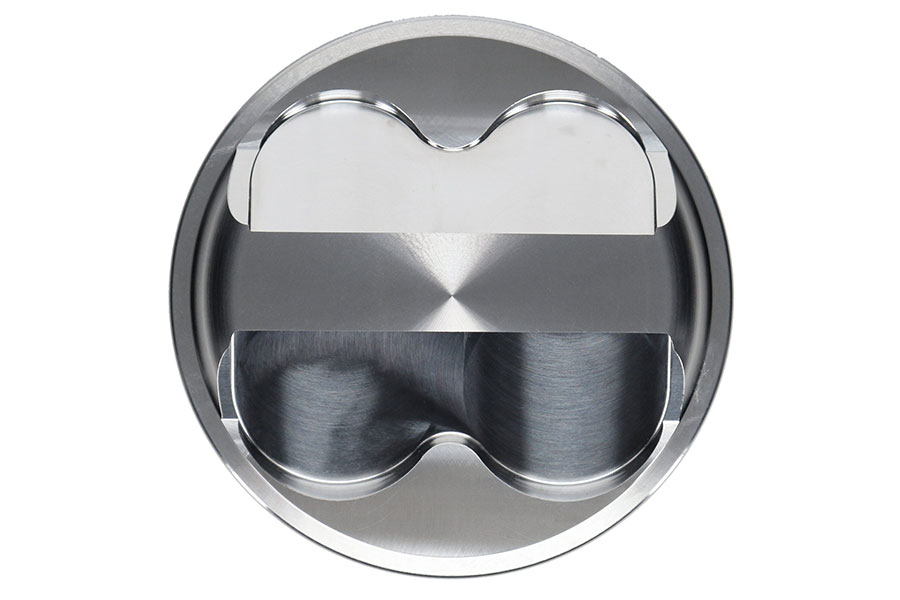

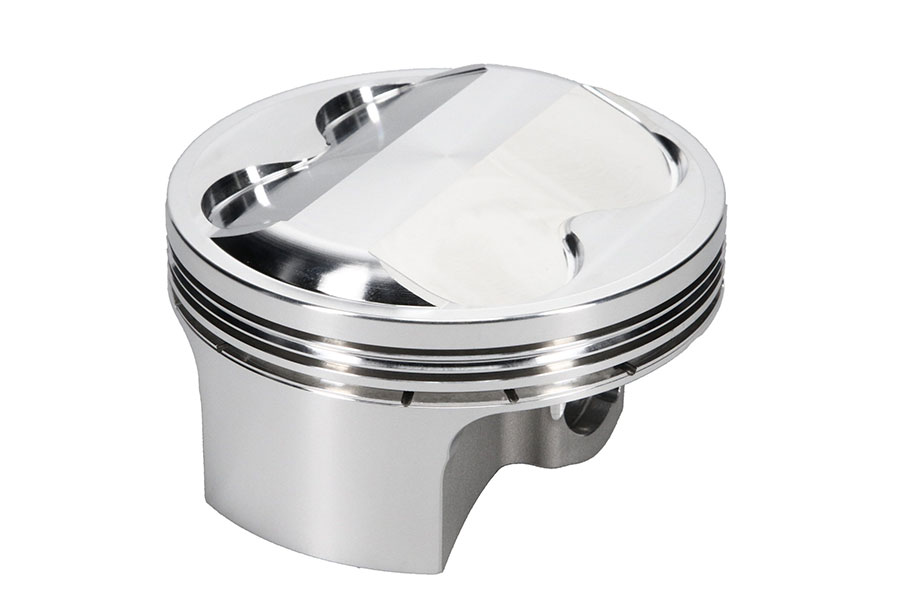

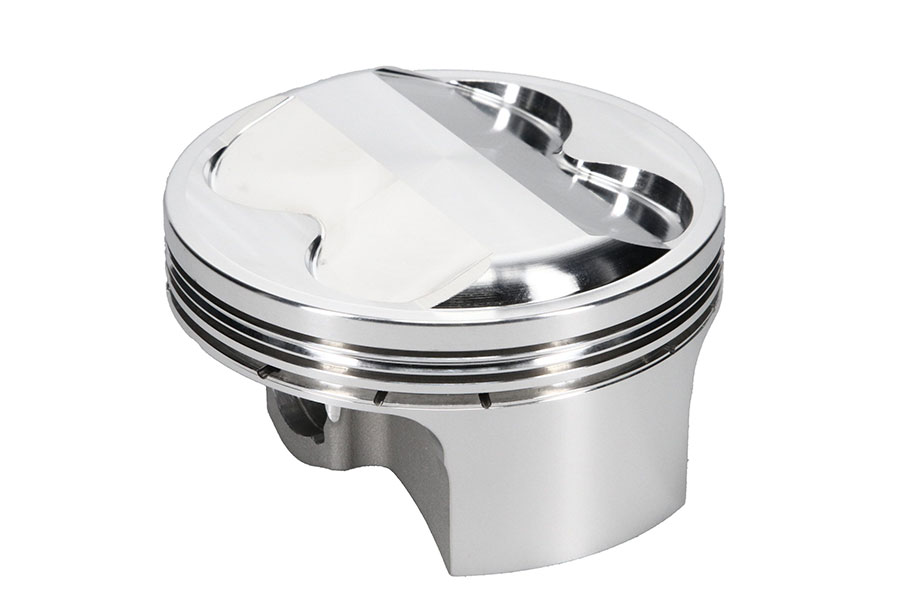

JE Pistons Piston Kit 100.00mm - 222094
Information
Bore Diameter: 100.00mm.
- Manufacturer: JE Pistons
Note: Product images may only represent the class of product and not the specific model.
- Bore Diameter: 100.00mm
- Technical Details
Bore Diameter
100.00
Piston Head Type
Dome
Cylinder Head
TRX 650 RINC
Piston Pin Outside Diameter
0.905
Piston Pin Length
2.050
Ringset Included
Yes
Top Compression Ring Thickness
0.048
Second Compression Ring Thickness
0.06
Oil Ring Thickness
0.0795
Piston Material
2618
Forging Type
FSR
Piston Avg Weight
413
Compression Ratio - Actual
12.50:1
Pin Wall Thickness
0.150
Matched Vehicles
The following are a match for this product.
| Honda TRX-650FA FourTrax Rincon - 2005, 2004, 2003 |
| Honda TRX-650FGA FourTrax Rincon GPSCAPE - 2005, 2004 |
